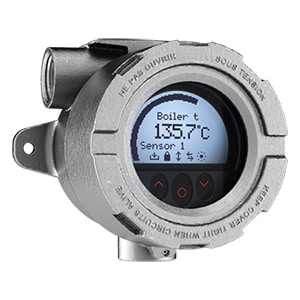

현장 설치형 HART 프로토콜 온도 트랜스미터
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 1개의 상품
| 제품 번호 / 가격 | Brand | Accuracy | Additional Features 1 | Approvals | Calibration Adjustment | Calibration Temperature, Max | Calibration Temperature, Min | Data Interface | Dimensions Note | Display | Display Note | EMC Immunity Note | EMC Standard | Electrical Output | Enclosure Ratings | Height | Input Control Signal | Input Control Signal Note | Input Resistance | Input Type | Isolation | Length | Load Resistance | Long Term Stability | Operating Temperature Note | Operating Temperature, Max | Operating Temperature, Min | Output Detail | Output Load | Output Signal | Potentiometer Input Range | Programmable Functions | RTD Input Note | RTD Type | Relative Humidity | Resolution | Response Time | Screw Terminal Torque | Sensor Break Detection | Signal/Noise Ratio | Start Up Time | Storage Temperature, Max | Storage Temperature, Min | Supply Power Note | Supply Power Type | Supply Voltage | Temperature Measurement Range | Thermocouple Type | Vibration | Vibration Note | Weight | Weight Note | Width | Wire Type | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TXUN-FD2,169,220 원4 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.05 % | Explosion Proof Aluminum/Stainless Steel Housing | EU RO Mutual Recognition Type; Approval: MRA0000009; ATEX 2014/34/EU: DEKRA 15 ATEX 0058 X; IECEx: IECEx DEK 15.0039 X; FM: FM16US0009X/FM16CA0010X; CSA: 70024231 EAC Ex TR-CU 012/2011: RU C-DK.GB08.V.01316; INMETRO: DEKRA 15.0014 X; NEPSI: GYJ15.1336X, GYJ15.1337X and GYJ15.1338X; SIL: Hardware assessed for use in SIL applications Authority Requirements: EMC: 2014/30/EU, EAC: TR-CU 020/2011 | ± 50 % Max | 28 °C | 20 °C | HART 7, HART 5 | Aluminum: 109.3 H x 145 W x 126 D mm, Stainless: 107.4 H x 145 W x 124 D mm Dimensions: Ø 110 mm | LCD | 96 x 64 pixels Resolution, Selectable ON/OFF and Selectable white or red colour Backlight Number of Digits: 5 | Standard EMC Imunity: <±0.1% of span; Extended EMC Immunity: NAMUR, NE21, A Criterion, Burst: <±1% of span; Wire Size: 0.13 x 1.5 mm² | EN61010-1, EN61326-1 | 4 to 20 mA | IP54, IP66, IP68, NEMA Type 4X | 109 mm | -800 to 800 mV | Min. Measurement Range (Span): 2.5 mV | 10 MΩ | Thermocouple, RTD, Resistance, Voltage | Test/Working: 1.5 kVac/50Vac | 104 mm | ≤ (Vsupply - 12) / 0.023 Ω | ±0.1% of span/year | -40 to 85°C (with Silicone O-ring),-20 to 85°C (with FKM Oring) | 85 °C | -40 °C | Signal Range: 4 to 20 mA,Min. Signal Range: 6 mA,NAMUR NE43 Upscale/Downscale: 23 mA/3.5 mA | ≤ (Vsupply - 10) / 0.023 Ω | Current | 0 to 7000 Ω | HART Setup | Cable Resistance, Per Wire: 50 Ω; Sensor Current: 0.2 mA | 50/100/200/250/500/1000 Ω Pt Sensor, 50/100/120/1000 Ω Ni Sensor | 0 to 100% RH Condensing | Input Signal Dynamics: 22 bit; Output Signal Dynamics: 16 bit | 1 to 60 sec; Update Time : 440 msec | 0.4 Nm | Programmable 3.5 to 23 mA | > 60 dB | 5 Sec | 85 °C | -40 °C | Intrinsically Safe: 10 (12 - with backlight)...30 Vdc, Other: 10 (12 - with backlight)...35 Vdc | DC | 10 to 30 Vdc | J: -100 to 1200°C, K: -180 to 1370 °C, T: -200 to 400 °C, E: -100 to 1000 °C, R: -50 to 1760 °C, S: -50 to 1760 °C, N: -180 to 1300 °C, B: 0 to 1820 °C, W3: 0 to 2300 °C, W5: 0 to 2300 °C, L: -200 to 900 °C, LR: -200 to 800 °C, RTD: -200 to 850 °C | J, K, T, E, R, S, B, C, N, L, U, D, LR | ±4g | EC 60068-2-6; 2 to 25 Hz: ±1.6 mm; 25 to 100 Hz: ±4 g | 1.3 kg | Aluminum: 1.3, Stainless: 2.8 | 23.5 mm | Stranded |
스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.
