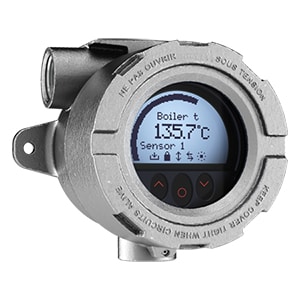

DwyerOmegaTXUN-FD-Temp-Transmitter
TXUN-FD
Field Mounted Hart Protocol Enabled Temperature Transmitter
- 가격
- 2,169,220 원
- VAT 10%
- 216,922 원
- 총 금액
- 2,386,142 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 4 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 0.05 %
Additional Features 1:Explosion Proof Aluminum/Stainless Steel Housing
Approvals:EU RO Mutual Recognition Type; Approval: MRA0000009; ATEX 2014/34/EU: DEKRA 15 ATEX 0058 X; IECEx: IECEx DEK 15.0039 X; FM: FM16US0009X/FM16CA0010X; CSA: 70024231 EAC Ex TR-CU 012/2011: RU C-DK.GB08.V.01316; INMETRO: DEKRA 15.0014 X; NEPSI: GYJ15.1336X, GYJ15.1337X and GYJ15.1338X; SIL: Hardware assessed for use in SIL applications Authority Requirements: EMC: 2014/30/EU, EAC: TR-CU 020/2011
Calibration Adjustment:± 50 % Max
Calibration Temperature, Max:28 °C
Calibration Temperature, Min:20 °C
Data Interface:HART 7, HART 5
Dimensions Note:Aluminum: 109.3 H x 145 W x 126 D mm, Stainless: 107.4 H x 145 W x 124 D mm Dimensions: Ø 110 mm
Display:LCD
Display Note:96 x 64 pixels Resolution, Selectable ON/OFF and Selectable white or red colour Backlight Number of Digits: 5
EMC Immunity Note:Standard EMC Imunity: <±0.1% of span; Extended EMC Immunity: NAMUR, NE21, A Criterion, Burst: <±1% of span; Wire Size: 0.13 x 1.5 mm²
EMC Standard:EN61010-1, EN61326-1
Electrical Output:4 to 20 mA
Enclosure Ratings:IP54, IP66, IP68, NEMA Type 4X
Height:109 mm
Input Control Signal:-800 to 800 mV
Input Control Signal Note:Min. Measurement Range (Span): 2.5 mV
Input Resistance:10 MΩ
Input Type:Thermocouple, RTD, Resistance, Voltage
Isolation:Test/Working: 1.5 kVac/50Vac
Length:104 mm
Load Resistance:≤ (Vsupply - 12) / 0.023 Ω
Long Term Stability:±0.1% of span/year
Operating Temperature Note:-40 to 85°C (with Silicone O-ring),-20 to 85°C (with FKM Oring)
Operating Temperature, Max:85 °C
Operating Temperature, Min:-40 °C
Output Detail:Signal Range: 4 to 20 mA,Min. Signal Range: 6 mA,NAMUR NE43 Upscale/Downscale: 23 mA/3.5 mA
Output Load:≤ (Vsupply - 10) / 0.023 Ω
Output Signal:Current
Potentiometer Input Range:0 to 7000 Ω
Programmable Functions:HART Setup
RTD Input Note:Cable Resistance, Per Wire: 50 Ω; Sensor Current: 0.2 mA
RTD Type:50/100/200/250/500/1000 Ω Pt Sensor, 50/100/120/1000 Ω Ni Sensor
Relative Humidity:0 to 100% RH Condensing
Resolution:Input Signal Dynamics: 22 bit; Output Signal Dynamics: 16 bit
Response Time:1 to 60 sec; Update Time : 440 msec
Screw Terminal Torque:0.4 Nm
Sensor Break Detection:Programmable 3.5 to 23 mA
Signal/Noise Ratio:> 60 dB
Start Up Time:5 Sec
Storage Temperature, Max:85 °C
Storage Temperature, Min:-40 °C
Supply Power Note:Intrinsically Safe: 10 (12 - with backlight)...30 Vdc, Other: 10 (12 - with backlight)...35 Vdc
Supply Power Type:DC
Supply Voltage:10 to 30 Vdc
Temperature Measurement Range:J: -100 to 1200°C, K: -180 to 1370 °C, T: -200 to 400 °C, E: -100 to 1000 °C, R: -50 to 1760 °C, S: -50 to 1760 °C, N: -180 to 1300 °C, B: 0 to 1820 °C, W3: 0 to 2300 °C, W5: 0 to 2300 °C, L: -200 to 900 °C, LR: -200 to 800 °C, RTD: -200 to 850 °C
Thermocouple Type:J, K, T, E, R, S, B, C, N, L, U, D, LR
Vibration:±4g
Vibration Note:EC 60068-2-6; 2 to 25 Hz: ±1.6 mm; 25 to 100 Hz: ±4 g
Weight:1.3 kg
Weight Note:Aluminum: 1.3, Stainless: 2.8
Width:23.5 mm
Wire Type:Stranded
