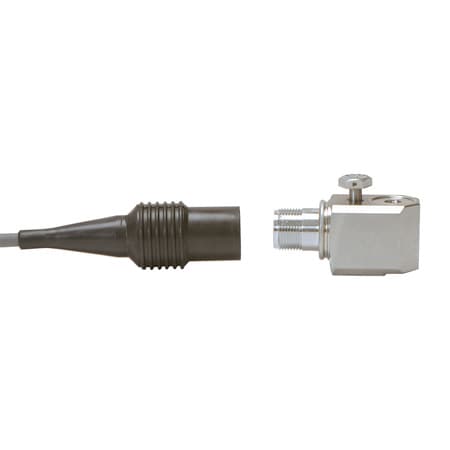

ACC787A-series | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 1개의 상품

제품 번호 / 가격	Brand	Additional Features 1	Bandwidth	Electrical Output	Enclosure Material	Ground	Inrush Current	Linearity Error	Mating Connector	Measuring Range	Mounting	Mounting Note	Natural frequency	Noise Calibration	Operating Temperature, Max	Operating Temperature, Min	Output Resistance	Overload Capacity	Seal Options	Sensitivity Note	Sensitivity Range	Supply Voltage	Vibration	Weight	수량 / 장바구니
ACC787A677,100 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Low Profile Industrial Grade	±10%: 1 to 5000 Hz,±3 dB: 0.7 to 10,000 Hz	12 Vdc	316L Stainless Steel	Isolated Case	2 to 10 mA	0.01	Amphenol 97-3106A-10SL-4S type	±80 g	captive hex head screw	1 ⁄4-28 captive hex head screw with 1.2 mm (0.046") diameter safety wire hole	22 kHz	Electrical Noise, Equiv. g:,Broadband: 2.5 Hz to 25 kHz: 700 µg,Spectral: 10 Hz: 10 µg√Hz,100 Hz: 5 µg√Hz,1000 Hz: 5 µg√Hz	120 °C	-50 °C	100 Ω	5000 g peak	Hermetic to 10^-8 cc/s	Transverse Sensitivity, Max: 5% of axial,Electromagnetic Sensitivity, Max: 70 µg/gauss, Strain Sensitivity: Max 0.0002 g/microstrain	N/A	18 to 30 Vdc	500 g peak	145 g

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Additional Features 1

Bandwidth

Electrical Output

Enclosure Material

Ground

Inrush Current

Linearity Error

Mating Connector

Measuring Range

Mounting

Mounting Note

Natural frequency

Noise Calibration

Operating Temperature, Max

Operating Temperature, Min

Output Resistance

Overload Capacity

Seal Options

Sensitivity Note

Sensitivity Range

Supply Voltage

Vibration

Weight

수량 / 장바구니

ACC787A677,100 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Low Profile Industrial Grade

±10%: 1 to 5000 Hz,±3 dB: 0.7 to 10,000 Hz

12 Vdc

316L Stainless Steel

Isolated Case

2 to 10 mA

0.01

Amphenol 97-3106A-10SL-4S type

±80 g

captive hex head screw

1 ⁄4-28 captive hex head screw with 1.2 mm (0.046") diameter safety wire hole

22 kHz

Electrical Noise, Equiv. g:,Broadband: 2.5 Hz to 25 kHz: 700 µg,Spectral: 10 Hz: 10 µg√Hz,100 Hz: 5 µg√Hz,1000 Hz: 5 µg√Hz

120 °C

-50 °C

100 Ω

5000 g peak

Hermetic to 10^-8 cc/s

Transverse Sensitivity, Max: 5% of axial,Electromagnetic Sensitivity, Max: 70 µg/gauss, Strain Sensitivity: Max 0.0002 g/microstrain

N/A

18 to 30 Vdc

500 g peak

145 g
