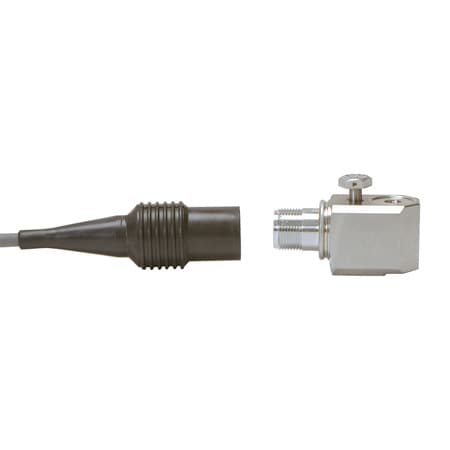

DwyerOmegaACC787A-series
ACC787A
GENERAL PURPOSE ACCELEROMETER
- 가격
- 677,100 원
- VAT 10%
- 67,710 원
- 총 금액
- 744,810 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Additional Features 1:Low Profile Industrial Grade
Bandwidth:±10%: 1 to 5000 Hz,±3 dB: 0.7 to 10,000 Hz
Electrical Output:12 Vdc
Enclosure Material:316L Stainless Steel
Ground:Isolated Case
Inrush Current:2 to 10 mA
Linearity Error:0.01
Mating Connector:Amphenol 97-3106A-10SL-4S type
Measuring Range:±80 g
Mounting:captive hex head screw
Mounting Note:1 ⁄4-28 captive hex head screw with 1.2 mm (0.046") diameter safety wire hole
Natural frequency:22 kHz
Noise Calibration:Electrical Noise, Equiv. g:,Broadband: 2.5 Hz to 25 kHz: 700 µg,Spectral: 10 Hz: 10 µg√Hz,100 Hz: 5 µg√Hz,1000 Hz: 5 µg√Hz
Operating Temperature, Max:120 °C
Operating Temperature, Min:-50 °C
Output Resistance:100 Ω
Overload Capacity:5000 g peak
Seal Options:Hermetic to 10^-8 cc/s
Sensitivity Note:Transverse Sensitivity, Max: 5% of axial,Electromagnetic Sensitivity, Max: 70 µg/gauss, Strain Sensitivity: Max 0.0002 g/microstrain
Sensitivity Range:N/A
Supply Voltage:18 to 30 Vdc
Vibration:500 g peak
Weight:145 g
