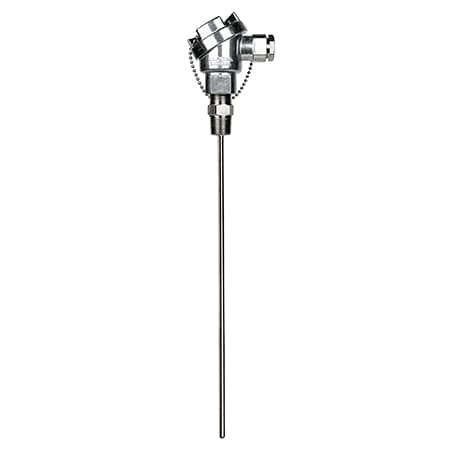

산업용 RTD (PT100) 프로브 - 소형 알루미늄 보호 헤드
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 18개의 상품
| 제품 번호 / 가격 | Brand | Accuracy | Accuracy Detail | Enclosure Ratings | Head Material | Nominal Resistance | Nominal Resistance Note | Number of Wires | Probe Diameter | Probe Length | Process Connection Size | Process Connection Type | Process Temperature, Max | Process Temperature, Min | Protection Head | Response Time | Sheath Material | Shock | Temperature Coefficient | Temperature Probe Style | Temperature Sensor Type | Vibration | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PR-14L-3-100-1/4-24가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Class A per IEC60751 | IP67 | Aluminum | 100 Ω | 100 Ω and 1000 Ω at 0°C standard; TCR = 0.00385 Ω/Ω/°C standard | 3 | 0.25 in | 24 in | 1/2 in | NPT Male | 250 °C | -50 °C | NB2 Die-Cast Aluminum, Safety Chain, Medium | 3.25 sec | 316 Stainless Steel | IEC 60068-2-27; 50g/11ms (15 probes tested together) Duration: 1 day | 0.00385 Ω/Ω/°C standard | N/A | RTD | IEC 60068-2-6; 5 to 2000 Hz sweep rate, one active per minute; number of sweep cycles 10 and acceleration 5g (15 probes tested together) Duration: 1 day | |
PR-14L-3-100-1/4-18가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Class A per IEC60751 | IP67 | Aluminum | 100 Ω | 100 Ω and 1000 Ω at 0°C standard; TCR = 0.00385 Ω/Ω/°C standard | 3 | 0.25 in | 18 in | 1/2 in | NPT Male | 250 °C | -50 °C | NB2 Die-Cast Aluminum, Safety Chain, Medium | 3.25 sec | 316 Stainless Steel | IEC 60068-2-27; 50g/11ms (15 probes tested together) Duration: 1 day | 0.00385 Ω/Ω/°C standard | N/A | RTD | IEC 60068-2-6; 5 to 2000 Hz sweep rate, one active per minute; number of sweep cycles 10 and acceleration 5g (15 probes tested together) Duration: 1 day | |
PR-14H-3-100-1/4-24가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Class A from -50 to 300°C (-58 to 572°F); or else Class B | IP67 | Aluminum | 100 Ω | 100 Ω and 1000 Ω at 0°C standard; TCR = 0.00385 Ω/Ω/°C standard | 3 | 0.25 in | 24 in | 1/2 in | NPT Male | 450 °C | -50 °C | NB2 Die-Cast Aluminum, Safety Chain, Medium | 5.41 sec | 316 Stainless Steel | IEC 60068-2-27; 50g/11ms (15 probes tested together) Duration: 1 day | 0.00385 Ω/Ω/°C standard | N/A | RTD | IEC 60068-2-6; 5 to 2000 Hz sweep rate, one active per minute; number of sweep cycles 10 and acceleration 5g (15 probes tested together) Duration: 1 day | |
PR-14H-3-100-1/4-18209,400 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Class A from -50 to 300°C (-58 to 572°F); or else Class B | IP67 | Aluminum | 100 Ω | 100 Ω and 1000 Ω at 0°C standard; TCR = 0.00385 Ω/Ω/°C standard | 3 | 0.25 in | 18 in | 1/2 in | NPT Male | 450 °C | -50 °C | NB2 Die-Cast Aluminum, Safety Chain, Medium | 5.41 sec | 316 Stainless Steel | IEC 60068-2-27; 50g/11ms (15 probes tested together) Duration: 1 day | 0.00385 Ω/Ω/°C standard | N/A | RTD | IEC 60068-2-6; 5 to 2000 Hz sweep rate, one active per minute; number of sweep cycles 10 and acceleration 5g (15 probes tested together) Duration: 1 day | |
PR-14E-3-100-1/4-24328,800 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Class A from -100 to 450°C (-148 to 842°F); or else Class B | IP67 | Aluminum | 100 Ω | 100 Ω and 1000 Ω at 0°C standard; TCR = 0.00385 Ω/Ω/°C standard | 3 | 0.25 in | 24 in | 1/2 in | NPT Male | 600 °C | -200 °C | NB2 Die-Cast Aluminum, Safety Chain, Medium | 10.6 sec | 316 Stainless Steel | IEC 60068-2-27; 50g/11ms (15 probes tested together) Duration: 1 day | 0.00385 Ω/Ω/°C standard | N/A | RTD | IEC 60068-2-6; 5 to 2000 Hz sweep rate, one active per minute; number of sweep cycles 10 and acceleration 5g (15 probes tested together) Duration: 1 day | |
PR-14H-3-100-1/4-12174,850 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Class A from -50 to 300°C (-58 to 572°F); or else Class B | IP67 | Aluminum | 100 Ω | 100 Ω and 1000 Ω at 0°C standard; TCR = 0.00385 Ω/Ω/°C standard | 3 | 0.25 in | 12 in | 1/2 in | NPT Male | 450 °C | -50 °C | NB2 Die-Cast Aluminum, Safety Chain, Medium | 5.41 sec | 316 Stainless Steel | IEC 60068-2-27; 50g/11ms (15 probes tested together) Duration: 1 day | 0.00385 Ω/Ω/°C standard | N/A | RTD | IEC 60068-2-6; 5 to 2000 Hz sweep rate, one active per minute; number of sweep cycles 10 and acceleration 5g (15 probes tested together) Duration: 1 day | |
PR-14E-3-100-1/4-18304,110 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Class A from -100 to 450°C (-148 to 842°F); or else Class B | IP67 | Aluminum | 100 Ω | 100 Ω and 1000 Ω at 0°C standard; TCR = 0.00385 Ω/Ω/°C standard | 3 | 0.25 in | 18 in | 1/2 in | NPT Male | 600 °C | -200 °C | NB2 Die-Cast Aluminum, Safety Chain, Medium | 10.6 sec | 316 Stainless Steel | IEC 60068-2-27; 50g/11ms (15 probes tested together) Duration: 1 day | 0.00385 Ω/Ω/°C standard | N/A | RTD | IEC 60068-2-6; 5 to 2000 Hz sweep rate, one active per minute; number of sweep cycles 10 and acceleration 5g (15 probes tested together) Duration: 1 day | |
PR-14L-3-100-1/4-9246,280 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Class A per IEC60751 | IP67 | Aluminum | 100 Ω | 100 Ω and 1000 Ω at 0°C standard; TCR = 0.00385 Ω/Ω/°C standard | 3 | 0.25 in | 9 in | 1/2 in | NPT Male | 250 °C | -50 °C | NB2 Die-Cast Aluminum, Safety Chain, Medium | 3.25 sec | 316 Stainless Steel | IEC 60068-2-27; 50g/11ms (15 probes tested together) Duration: 1 day | 0.00385 Ω/Ω/°C standard | N/A | RTD | IEC 60068-2-6; 5 to 2000 Hz sweep rate, one active per minute; number of sweep cycles 10 and acceleration 5g (15 probes tested together) Duration: 1 day | |
PR-14L-3-100-1/4-6172,390 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Class A per IEC60751 | IP67 | Aluminum | 100 Ω | 100 Ω and 1000 Ω at 0°C standard; TCR = 0.00385 Ω/Ω/°C standard | 3 | 0.25 in | 6 in | 1/2 in | NPT Male | 250 °C | -50 °C | NB2 Die-Cast Aluminum, Safety Chain, Medium | 3.25 sec | 316 Stainless Steel | IEC 60068-2-27; 50g/11ms (15 probes tested together) Duration: 1 day | 0.00385 Ω/Ω/°C standard | N/A | RTD | IEC 60068-2-6; 5 to 2000 Hz sweep rate, one active per minute; number of sweep cycles 10 and acceleration 5g (15 probes tested together) Duration: 1 day | |
PR-14H-4-100-1/4-6348,160 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Class A from -50 to 300°C (-58 to 572°F); or else Class B | IP67 | Aluminum | 100 Ω | 100 Ω and 1000 Ω at 0°C standard; TCR = 0.00385 Ω/Ω/°C standard | 4 | 0.25 in | 6 in | 1/2 in | NPT Male | 450 °C | -50 °C | NB2 Die-Cast Aluminum, Safety Chain, Medium | 5.41 sec | 316 Stainless Steel | IEC 60068-2-27; 50g/11ms (15 probes tested together) Duration: 1 day | 0.00385 Ω/Ω/°C standard | N/A | RTD | IEC 60068-2-6; 5 to 2000 Hz sweep rate, one active per minute; number of sweep cycles 10 and acceleration 5g (15 probes tested together) Duration: 1 day | |
PR-14H-3-100-1/4-9234,790 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Class A from -50 to 300°C (-58 to 572°F); or else Class B | IP67 | Aluminum | 100 Ω | 100 Ω and 1000 Ω at 0°C standard; TCR = 0.00385 Ω/Ω/°C standard | 3 | 0.25 in | 9 in | 1/2 in | NPT Male | 450 °C | -50 °C | NB2 Die-Cast Aluminum, Safety Chain, Medium | 5.41 sec | 316 Stainless Steel | IEC 60068-2-27; 50g/11ms (15 probes tested together) Duration: 1 day | 0.00385 Ω/Ω/°C standard | N/A | RTD | IEC 60068-2-6; 5 to 2000 Hz sweep rate, one active per minute; number of sweep cycles 10 and acceleration 5g (15 probes tested together) Duration: 1 day | |
PR-14H-3-100-1/8-6190,770 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Class A from -50 to 300°C (-58 to 572°F); or else Class B | IP67 | Aluminum | 100 Ω | 100 Ω and 1000 Ω at 0°C standard; TCR = 0.00385 Ω/Ω/°C standard | 3 | 0.125 in | 6 in | 1/2 in | NPT Male | 450 °C | -50 °C | NB2 Die-Cast Aluminum, Safety Chain, Medium | 2.8 sec | 316 Stainless Steel | IEC 60068-2-27; 50g/11ms (15 probes tested together) Duration: 1 day | 0.00385 Ω/Ω/°C standard | N/A | RTD | IEC 60068-2-6; 5 to 2000 Hz sweep rate, one active per minute; number of sweep cycles 10 and acceleration 5g (15 probes tested together) Duration: 1 day | |
PR-14H-3-100-1/4-6153,500 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Class A from -50 to 300°C (-58 to 572°F); or else Class B | IP67 | Aluminum | 100 Ω | 100 Ω and 1000 Ω at 0°C standard; TCR = 0.00385 Ω/Ω/°C standard | 3 | 0.25 in | 6 in | 1/2 in | NPT Male | 450 °C | -50 °C | NB2 Die-Cast Aluminum, Safety Chain, Medium | 5.41 sec | 316 Stainless Steel | IEC 60068-2-27; 50g/11ms (15 probes tested together) Duration: 1 day | 0.00385 Ω/Ω/°C standard | N/A | RTD | IEC 60068-2-6; 5 to 2000 Hz sweep rate, one active per minute; number of sweep cycles 10 and acceleration 5g (15 probes tested together) Duration: 1 day | |
PR-14H-3-100-1/4-4가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Class A from -50 to 300°C (-58 to 572°F); or else Class B | IP67 | Aluminum | 100 Ω | 100 Ω and 1000 Ω at 0°C standard; TCR = 0.00385 Ω/Ω/°C standard | 3 | 0.25 in | 4 in | 1/2 in | NPT Male | 450 °C | -50 °C | NB2 Die-Cast Aluminum, Safety Chain, Medium | 5.41 sec | 316 Stainless Steel | IEC 60068-2-27; 50g/11ms (15 probes tested together) Duration: 1 day | 0.00385 Ω/Ω/°C standard | N/A | RTD | IEC 60068-2-6; 5 to 2000 Hz sweep rate, one active per minute; number of sweep cycles 10 and acceleration 5g (15 probes tested together) Duration: 1 day | |
PR-14E-3-100-1/8-6254,640 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Class A from -100 to 450°C (-148 to 842°F); or else Class B | IP67 | Aluminum | 100 Ω | 100 Ω and 1000 Ω at 0°C standard; TCR = 0.00385 Ω/Ω/°C standard | 3 | 0.125 in | 6 in | 1/2 in | NPT Male | 600 °C | -200 °C | NB2 Die-Cast Aluminum, Safety Chain, Medium | 9 sec | 316 Stainless Steel | IEC 60068-2-27; 50g/11ms (15 probes tested together) Duration: 1 day | 0.00385 Ω/Ω/°C standard | N/A | RTD | IEC 60068-2-6; 5 to 2000 Hz sweep rate, one active per minute; number of sweep cycles 10 and acceleration 5g (15 probes tested together) Duration: 1 day | |
PR-14E-3-100-1/4-6241,020 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Class A from -100 to 450°C (-148 to 842°F); or else Class B | IP67 | Aluminum | 100 Ω | 100 Ω and 1000 Ω at 0°C standard; TCR = 0.00385 Ω/Ω/°C standard | 3 | 0.25 in | 6 in | 1/2 in | NPT Male | 600 °C | -200 °C | NB2 Die-Cast Aluminum, Safety Chain, Medium | 10.6 sec | 316 Stainless Steel | IEC 60068-2-27; 50g/11ms (15 probes tested together) Duration: 1 day | 0.00385 Ω/Ω/°C standard | N/A | RTD | IEC 60068-2-6; 5 to 2000 Hz sweep rate, one active per minute; number of sweep cycles 10 and acceleration 5g (15 probes tested together) Duration: 1 day | |
PR-14E-3-100-1/4-4246,400 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Class A from -100 to 450°C (-148 to 842°F); or else Class B | IP67 | Aluminum | 100 Ω | 100 Ω and 1000 Ω at 0°C standard; TCR = 0.00385 Ω/Ω/°C standard | 3 | 0.25 in | 4 in | 1/2 in | NPT Male | 600 °C | -200 °C | NB2 Die-Cast Aluminum, Safety Chain, Medium | 10.6 sec | 316 Stainless Steel | IEC 60068-2-27; 50g/11ms (15 probes tested together) Duration: 1 day | 0.00385 Ω/Ω/°C standard | N/A | RTD | IEC 60068-2-6; 5 to 2000 Hz sweep rate, one active per minute; number of sweep cycles 10 and acceleration 5g (15 probes tested together) Duration: 1 day | |
PR-14E-3-100-1/4-12279,380 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Class A from -100 to 450°C (-148 to 842°F); or else Class B | IP67 | Aluminum | 100 Ω | 100 Ω and 1000 Ω at 0°C standard; TCR = 0.00385 Ω/Ω/°C standard | 3 | 0.25 in | 12 in | 1/2 in | NPT Male | 600 °C | -200 °C | NB2 Die-Cast Aluminum, Safety Chain, Medium | 10.6 sec | 316 Stainless Steel | IEC 60068-2-27; 50g/11ms (15 probes tested together) Duration: 1 day | 0.00385 Ω/Ω/°C standard | N/A | RTD | IEC 60068-2-6; 5 to 2000 Hz sweep rate, one active per minute; number of sweep cycles 10 and acceleration 5g (15 probes tested together) Duration: 1 day |
스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.
