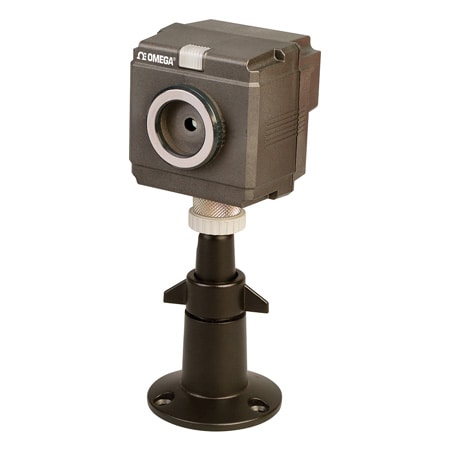

OSXL-101-Series | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 2개의 상품

제품 번호 / 가격	Brand	Accuracy	Accuracy Detail	Additional Features 1	Alarm	Application Software	Capturing Mode	Capturing Mode Note	Data Interface	Detector Dimension	Detector Type	Emissivity, Max	Emissivity, Min	Enclosure Ratings	Enclosure Ratings Note	Field of view	Focus	Frame Speed	Frame Speed Note	Functions	Housing Material	Inrush Current	Monitor Mode	Monitor Mode Note	Mounting	Object Temperature, Max	Object Temperature, Min	Operating Temperature, Max	Operating Temperature, Min	Radius Resolution	Relative Humidity Note	Temperature Resolution	Wavelength Dimension	Wavelength Position	Weight	Weight Note	수량 / 장바구니
OSXL-101-25H4,706,080 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 3 °C (± 5.4 °F)	± 2% of reading or ± 3° C whichever larger (at ambient temp of 25°C ± 2° C)	High Temperature	2 SPST (non-voltage contactoutput)	Requirements OS: Windows® 2000 (SP4 or later)/XPNista (Windows XP or later recommended) NET Framework 2.0 or later (required) Memory Windows 2000/XP: 1 GB recommended (512 MB or more) Windows Vista: 2 GB or more recommended CPU Windows 2000/XP: 1.5 GHz or faster recommended Windows Vista: 2 GHz or faster recommended Basic Function When the LAN settings are completed correctly between a PC and the thermal image sensor and the LAN communication is established, thermal image screen will appear; the thermal images up to 4 sensors can be displayed with this application software, and the simultaneous display for images and the individual display for each sensor can be switched. Various Settings of Sensor LAN settings/alarm settings of the sensors/emissivity setting Data Storage Image temperature data storage (temperature data/csv for 2256 pixels)/ Thermal image screen storage (JPEG) Image Processing Screen averaging/spatial smoothing/ median filter/rotation/maximum and minimum values indications Trend Graph By specifying a graph area, data can be displayed by the trend graph and the graph data can be stored by setting. (max 8 areas) Alarm Settings by the Application Software • By specifying a zone, alarms can be set (max 8 areas) • The zone alarm as set in the application software are separate and in addition to alarms set in the sensor	PLC Connection	PLC Connection • The temperature data is outputted row-by-row Horizontally by a command from PLC, etc	Ethernet	48 x 47 Pixels	Thermopile array	1	0,1	IP65, NEMA Type 4	NEMA 4 (IP65) (with provided exclusive cable and tripod screw)	25° x 25°	Fixed	3 fps	3 fps (1 fps for alarm output)	Monitoring Mode The temperature data is outputted continuously by a command from the PC. Capturing Mode The temperature data is outputted row•by•row horizontally by a command from PLC, etc. Connectivity Up to 4 sensors can be connected to a PC via LAN and viewer software allows you to monitor thermal images, measuring temperature and alarms.	Polycarbonate	Maximum 1.3A @12 Vdc (the inrush current should beconsidered for the selection of power)	Multiple Unit Connection, Single Unit Usage	Multiple Unit Connection (LAN) • p to 4 sensors can be connected • Monitoring and alarm outputs from sensor can be used together Single Unit Usage • Single unit can monitor 1 area and has 2 alarm outputs • When alarm goes on, the unit stores 1 image to the memory • Image saving updates every occurrence of alarm • Reading the data from host PC is possible	Fixed Mount Thermal Imager	800 °C	100 °C	50 °C	-10 °C	21.8 mrad	10 to 80% RH (no dew condensation)	0.5 °C	10 μm	Center	150 g	Approximately 150 g (5.2 oz) (sensor only)
OSXL-1015,157,000 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 3 °C (± 5.4 °F)	± 2% of reading or ± 3° C whichever larger (at ambient temp of 25°C ± 2° C)	None	2 SPST (non-voltage contactoutput)	Requirements OS: Windows® 2000 (SP4 or later)/XPNista (Windows XP or later recommended) NET Framework 2.0 or later (required) Memory Windows 2000/XP: 1 GB recommended (512 MB or more) Windows Vista: 2 GB or more recommended CPU Windows 2000/XP: 1.5 GHz or faster recommended Windows Vista: 2 GHz or faster recommended Basic Function When the LAN settings are completed correctly between a PC and the thermal image sensor and the LAN communication is established, thermal image screen will appear; the thermal images up to 4 sensors can be displayed with this application software, and the simultaneous display for images and the individual display for each sensor can be switched. Various Settings of Sensor LAN settings/alarm settings of the sensors/emissivity setting Data Storage Image temperature data storage (temperature data/csv for 2256 pixels)/ Thermal image screen storage (JPEG) Image Processing Screen averaging/spatial smoothing/ median filter/rotation/maximum and minimum values indications Trend Graph By specifying a graph area, data can be displayed by the trend graph and the graph data can be stored by setting. (max 8 areas) Alarm Settings by the Application Software • By specifying a zone, alarms can be set (max 8 areas) • The zone alarm as set in the application software are separate and in addition to alarms set in the sensor	PLC Connection	PLC Connection • The temperature data is outputted row-by-row Horizontally by a command from PLC, etc	Ethernet	48 x 47 Pixels	Thermopile array	1	0,1	IP65, NEMA Type 4	NEMA 4 (IP65) (with provided exclusive cable and tripod screw)	60° x 60°	Fixed	3 fps	3 fps (1 fps for alarm output)	Monitoring Mode The temperature data is outputted continuously by a command from the PC. Capturing Mode The temperature data is outputted row•by•row horizontally by a command from PLC, etc. Connectivity Up to 4 sensors can be connected to a PC via LAN and viewer software allows you to monitor thermal images, measuring temperature and alarms.	Polycarbonate	Maximum 1.3A @12 Vdc (the inrush current should beconsidered for the selection of power)	Multiple Unit Connection, Single Unit Usage	Multiple Unit Connection (LAN) • p to 4 sensors can be connected • Monitoring and alarm outputs from sensor can be used together Single Unit Usage • Single unit can monitor 1 area and has 2 alarm outputs • When alarm goes on, the unit stores 1 image to the memory • Image saving updates every occurrence of alarm • Reading the data from host PC is possible	Fixed Mount Thermal Imager	300 °C	-20 °C	50 °C	-10 °C	21.8 mrad	10 to 80% RH (no dew condensation)	0.5 °C	10 μm	Center	150 g	Approximately 150 g (5.2 oz) (sensor only)

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Accuracy

Accuracy Detail

Additional Features 1

Alarm

Application Software

Capturing Mode

Capturing Mode Note

Data Interface

Detector Dimension

Detector Type

Emissivity, Max

Emissivity, Min

Enclosure Ratings

Enclosure Ratings Note

Field of view

Focus

Frame Speed

Frame Speed Note

Functions

Housing Material

Inrush Current

Monitor Mode

Monitor Mode Note

Mounting

Object Temperature, Max

Object Temperature, Min

Operating Temperature, Max

Operating Temperature, Min

Radius Resolution

Relative Humidity Note

Temperature Resolution

Wavelength Dimension

Wavelength Position

Weight

Weight Note

수량 / 장바구니

OSXL-101-25H4,706,080 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 3 °C (± 5.4 °F)

± 2% of reading or ± 3° C whichever larger (at ambient temp of 25°C ± 2° C)

High Temperature

2 SPST (non-voltage contactoutput)

Requirements OS: Windows® 2000 (SP4 or later)/XPNista (Windows XP or later recommended) NET Framework 2.0 or later (required) Memory Windows 2000/XP: 1 GB recommended (512 MB or more) Windows Vista: 2 GB or more recommended CPU Windows 2000/XP: 1.5 GHz or faster recommended Windows Vista: 2 GHz or faster recommended Basic Function When the LAN settings are completed correctly between a PC and the thermal image sensor and the LAN communication is established, thermal image screen will appear; the thermal images up to 4 sensors can be displayed with this application software, and the simultaneous display for images and the individual display for each sensor can be switched. Various Settings of Sensor LAN settings/alarm settings of the sensors/emissivity setting Data Storage Image temperature data storage (temperature data/csv for 2256 pixels)/ Thermal image screen storage (JPEG) Image Processing Screen averaging/spatial smoothing/ median filter/rotation/maximum and minimum values indications Trend Graph By specifying a graph area, data can be displayed by the trend graph and the graph data can be stored by setting. (max 8 areas) Alarm Settings by the Application Software • By specifying a zone, alarms can be set (max 8 areas) • The zone alarm as set in the application software are separate and in addition to alarms set in the sensor

PLC Connection

PLC Connection • The temperature data is outputted row-by-row Horizontally by a command from PLC, etc

Ethernet

48 x 47 Pixels

Thermopile array

0,1

IP65, NEMA Type 4

NEMA 4 (IP65) (with provided exclusive cable and tripod screw)

25° x 25°

Fixed

3 fps

3 fps (1 fps for alarm output)

Monitoring Mode The temperature data is outputted continuously by a command from the PC. Capturing Mode The temperature data is outputted row•by•row horizontally by a command from PLC, etc. Connectivity Up to 4 sensors can be connected to a PC via LAN and viewer software allows you to monitor thermal images, measuring temperature and alarms.

Polycarbonate

Maximum 1.3A @12 Vdc (the inrush current should beconsidered for the selection of power)

Multiple Unit Connection, Single Unit Usage

Multiple Unit Connection (LAN) • p to 4 sensors can be connected • Monitoring and alarm outputs from sensor can be used together Single Unit Usage • Single unit can monitor 1 area and has 2 alarm outputs • When alarm goes on, the unit stores 1 image to the memory • Image saving updates every occurrence of alarm • Reading the data from host PC is possible

Fixed Mount Thermal Imager

800 °C

100 °C

50 °C

-10 °C

21.8 mrad

10 to 80% RH (no dew condensation)

0.5 °C

10 μm

Center

150 g

Approximately 150 g (5.2 oz) (sensor only)

OSXL-1015,157,000 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다.
