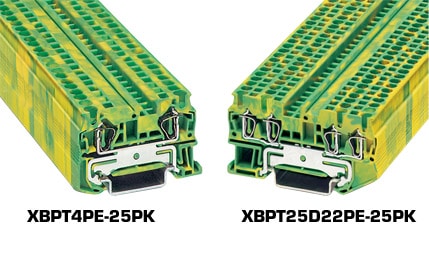

XBPTPE-GROUND | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 7개의 상품

제품 번호 / 가격	Brand	Additional Features 1	Color Options	Compatible Wiring Note	Contamination Class	Cover Width	Insulation Strip Length	Load Current, Max	Number of Terminals	Rated Surge Voltage	Terminal Width	V/A/AWG Compliance	Voltage Rating	Wire Gauge	Wire Size, Max	Cross-Section Area
XBPT25D22PE15,560 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	4-wire multi-conductor grounding blocks	Green/Yellow	Stranded Ferrule with Plastic Sleeve=0.25 - 10 mm²;Stranded with Ferrule=None;Stranded with Ferrule without Plastic Sleeve=0.25 - 6 mm²;Stranded with Twin Ferrule with Plastic Sleeve=1.5 - 2.5 mm²	3	2.2 mm	10 mm	65 A	4	8 kV	5.2 mm	Wire Gauge (IEC 60 947-7-1)=28 to 12 AWG;Wire Gauge (UL-cUL Ratings)=26 to 12 AWG;Wire Gauge (EN 50 AWG 0 AWG191)=24 to 12 AWG	N/A	28 to 12 AWG	2.5 mm²	-
XBPT35PE107,260 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Grounding terminal block	Green/Yellow	Stranded Ferrule with Plastic Sleeve=0.25 - 10 mm²;Stranded with Ferrule=None;Stranded with Ferrule without Plastic Sleeve=0.25 - 6 mm²;Stranded with Twin Ferrule with Plastic Sleeve=1.5 - 2.5 mm²	3	2.2 mm	25 mm	65 A	2	8 kV	16 mm	Amperage, Max (IEC 60 947-7-1)=125 A;Wire Gauge (IEC 60 947-7-1)=14 to 2 AWG;Wire Gauge (UL-cUL Ratings)=14 to 2 AWG;Wire Gauge (EN 50 AWG 0 AWG191)=14 to 2 AWG	N/A	14 to 2 AWG	35 mm²	35 mm²
XBPT25PE10,680 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Grounding Blocks	Green/Yellow	Stranded Ferrule with Plastic Sleeve=0.25 - 10 mm²;Stranded with Ferrule=None;Stranded with Ferrule without Plastic Sleeve=0.25 - 6 mm²;Stranded with Twin Ferrule with Plastic Sleeve=1.5 - 2.5 mm²	3	2.2 mm	10 mm	65 A	2	8 kV	5.2 mm	Wire Gauge (IEC 60 947-7-1)=28 to 12 AWG;Wire Gauge (UL-cUL Ratings)=26 to 12 AWG;Wire Gauge (EN 50 AWG 0 AWG191)=24 to 12 AWG	N/A	28 to 12 AWG	2.5 mm²	-
XBPT16PE20,340 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Grounding terminal block	Green/Yellow	Stranded Ferrule with Plastic Sleeve=0.25 - 10 mm²;Stranded with Ferrule=None;Stranded with Ferrule without Plastic Sleeve=0.25 - 6 mm²;Stranded with Twin Ferrule with Plastic Sleeve=1.5 - 2.5 mm²	3	2.2 mm	18 mm	65 A	2	8 kV	12 mm	Amperage, Max (IEC 60 947-7-1)=90 A;Wire Gauge (IEC 60 947-7-1)=24 to 4 AWG;Wire Gauge (UL-cUL Ratings)=16 to 4 AWG;Wire Gauge (EN 50 AWG 0 AWG191)=16 to 4 AWG	N/A	24 to 4 AWG	16 mm²	25 mm²
XBPT10PE18,390 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Grounding terminal block	Green/Yellow	Stranded Ferrule with Plastic Sleeve=0.25 - 10 mm²;Stranded with Ferrule=None;Stranded with Ferrule without Plastic Sleeve=0.25 - 6 mm²;Stranded with Twin Ferrule with Plastic Sleeve=1.5 - 2.5 mm²	3	2.2 mm	18 mm	65 A	2	8 kV	10.2 mm	Amperage, Max (IEC 60 947-7-1)=65 A;Wire Gauge (IEC 60 947-7-1)=24 to 6 AWG;Wire Gauge (UL-cUL Ratings)=16 to 6 AWG;Wire Gauge (EN 50 AWG 0 AWG191)=16 to 6 AWG	N/A	24 to 6 AWG	10 mm²	16 mm²
XBPT6PE14,370 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Grounding terminal block	Green/Yellow	Stranded Ferrule with Plastic Sleeve=0.25 - 10 mm²;Stranded with Ferrule=None;Stranded with Ferrule without Plastic Sleeve=0.25 - 6 mm²;Stranded with Twin Ferrule with Plastic Sleeve=1.5 - 2.5 mm²	3	2.2 mm	12 mm	65 A	2	8 kV	8.2 mm	Wire Gauge (IEC 60 947-7-1)=24 to 8 AWG;Wire Gauge (UL-cUL Ratings)=20 to 8 AWG;Wire Gauge (EN 50 AWG 0 AWG191)=20 to 8 AWG	N/A	24 to 8 AWG	6 mm²	-
XBPT4PE10,920 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Grounding Blocks	Green/Yellow	Stranded Ferrule with Plastic Sleeve=0.25 - 10 mm²;Stranded with Ferrule=None;Stranded with Ferrule without Plastic Sleeve=0.25 - 6 mm²;Stranded with Twin Ferrule with Plastic Sleeve=1.5 - 2.5 mm²	3	2.2 mm	10 mm	65 A	2	8 kV	6.2 mm	Wire Gauge (IEC 60 947-7-1)=28 to 10 AWG;Wire Gauge (UL-cUL Ratings)=20 to 10 AWG;Wire Gauge (EN 50 AWG 0 AWG191)=24 to 10 AWG	N/A	28 to 10 AWG	4 mm²	-

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Additional Features 1

Amperage, Max

Color Options

Compatible Wiring Note

Contamination Class

Cover Width

Insulation Strip Length

Load Current, Max

Number of Terminals

Rated Surge Voltage

Terminal Width

V/A/AWG Compliance

Voltage Rating

Wire Gauge

Wire Size, Max

Cross-Section Area

수량 / 장바구니

XBPT25D22PE15,560 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

4-wire multi-conductor grounding blocks

0 A

Green/Yellow

Stranded Ferrule with Plastic Sleeve=0.25 - 10 mm²;Stranded with Ferrule=None;Stranded with Ferrule without Plastic Sleeve=0.25 - 6 mm²;Stranded with Twin Ferrule with Plastic Sleeve=1.5 - 2.5 mm²

2.2 mm

10 mm

65 A

8 kV

5.2 mm

Wire Gauge (IEC 60 947-7-1)=28 to 12 AWG;Wire Gauge (UL-cUL Ratings)=26 to 12 AWG;Wire Gauge (EN 50 AWG 0 AWG191)=24 to 12 AWG

N/A

28 to 12 AWG

2.5 mm²

XBPT35PE107,260 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Grounding terminal block

0 A

Green/Yellow

Stranded Ferrule with Plastic Sleeve=0.25 - 10 mm²;Stranded with Ferrule=None;Stranded with Ferrule without Plastic Sleeve=0.25 - 6 mm²;Stranded with Twin Ferrule with Plastic Sleeve=1.5 - 2.5 mm²

2.2 mm

25 mm

65 A

8 kV

16 mm

Amperage, Max (IEC 60 947-7-1)=125 A;Wire Gauge (IEC 60 947-7-1)=14 to 2 AWG;Wire Gauge (UL-cUL Ratings)=14 to 2 AWG;Wire Gauge (EN 50 AWG 0 AWG191)=14 to 2 AWG

N/A

14 to 2 AWG

35 mm²

XBPT25PE10,680 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Grounding Blocks

0 A

Green/Yellow

Stranded Ferrule with Plastic Sleeve=0.25 - 10 mm²;Stranded with Ferrule=None;Stranded with Ferrule without Plastic Sleeve=0.25 - 6 mm²;Stranded with Twin Ferrule with Plastic Sleeve=1.5 - 2.5 mm²

2.2 mm

10 mm

65 A

8 kV

5.2 mm

Wire Gauge (IEC 60 947-7-1)=28 to 12 AWG;Wire Gauge (UL-cUL Ratings)=26 to 12 AWG;Wire Gauge (EN 50 AWG 0 AWG191)=24 to 12 AWG

N/A

28 to 12 AWG

2.5 mm²

XBPT16PE20,340 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Grounding terminal block

0 A

Green/Yellow

Stranded Ferrule with Plastic Sleeve=0.25 - 10 mm²;Stranded with Ferrule=None;Stranded with Ferrule without Plastic Sleeve=0.25 - 6 mm²;Stranded with Twin Ferrule with Plastic Sleeve=1.5 - 2.5 mm²

2.2 mm

18 mm

65 A

8 kV

12 mm

Amperage, Max (IEC 60 947-7-1)=90 A;Wire Gauge (IEC 60 947-7-1)=24 to 4 AWG;Wire Gauge (UL-cUL Ratings)=16 to 4 AWG;Wire Gauge (EN 50 AWG 0 AWG191)=16 to 4 AWG

N/A

24 to 4 AWG

16 mm²

25 mm²

XBPT10PE18,390 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Grounding terminal block

0 A

Green/Yellow

Stranded Ferrule with Plastic Sleeve=0.25 - 10 mm²;Stranded with Ferrule=None;Stranded with Ferrule without Plastic Sleeve=0.25 - 6 mm²;Stranded with Twin Ferrule with Plastic Sleeve=1.5 - 2.5 mm²

2.2 mm

18 mm

65 A

8 kV

10.2 mm

Amperage, Max (IEC 60 947-7-1)=65 A;Wire Gauge (IEC 60 947-7-1)=24 to 6 AWG;Wire Gauge (UL-cUL Ratings)=16 to 6 AWG;Wire Gauge (EN 50 AWG 0 AWG191)=16 to 6 AWG

N/A

24 to 6 AWG

10 mm²

16 mm²

XBPT6PE14,370 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Grounding terminal block

0 A

Green/Yellow

Stranded Ferrule with Plastic Sleeve=0.25 - 10 mm²;Stranded with Ferrule=None;Stranded with Ferrule without Plastic Sleeve=0.25 - 6 mm²;Stranded with Twin Ferrule with Plastic Sleeve=1.5 - 2.5 mm²

2.2 mm

12 mm

65 A

8 kV

8.2 mm

Wire Gauge (IEC 60 947-7-1)=24 to 8 AWG;Wire Gauge (UL-cUL Ratings)=20 to 8 AWG;Wire Gauge (EN 50 AWG 0 AWG191)=20 to 8 AWG

N/A

24 to 8 AWG

6 mm²

XBPT4PE10,920 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Grounding Blocks

0 A

Green/Yellow

Stranded Ferrule with Plastic Sleeve=0.25 - 10 mm²;Stranded with Ferrule=None;Stranded with Ferrule without Plastic Sleeve=0.25 - 6 mm²;Stranded with Twin Ferrule with Plastic Sleeve=1.5 - 2.5 mm²

2.2 mm

10 mm

65 A

8 kV

6.2 mm

Wire Gauge (IEC 60 947-7-1)=28 to 10 AWG;Wire Gauge (UL-cUL Ratings)=20 to 10 AWG;Wire Gauge (EN 50 AWG 0 AWG191)=24 to 10 AWG

N/A

28 to 10 AWG

4 mm²
