DwyerOmegaXBPTPE-GROUND
XBPT10PE

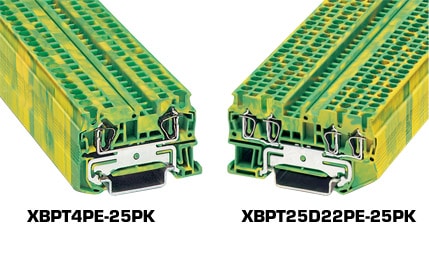

Spring Cage Ground Terminal Blocks
- 가격
- 18,390 원
- VAT 10%
- 1,839 원
- 총 금액
- 20,229 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 9 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Additional Features 1:Grounding terminal block
Amperage, Max:0 A
Color Options:Green/Yellow
Compatible Wiring Note:Stranded Ferrule with Plastic Sleeve=0.25 - 10 mm²;Stranded with Ferrule=None;Stranded with Ferrule without Plastic Sleeve=0.25 - 6 mm²;Stranded with Twin Ferrule with Plastic Sleeve=1.5 - 2.5 mm²
Contamination Class:3
Cover Width:2.2 mm
Cross-Section Area:16 mm²
Insulation Strip Length:18 mm
Load Current, Max:65 A
Number of Terminals:2
Rated Surge Voltage:8 kV
Terminal Width:10.2 mm
V/A/AWG Compliance:Amperage, Max (IEC 60 947-7-1)=65 A;Wire Gauge (IEC 60 947-7-1)=24 to 6 AWG;Wire Gauge (UL-cUL Ratings)=16 to 6 AWG;Wire Gauge (EN 50 AWG 0 AWG191)=16 to 6 AWG
Voltage Rating:N/A
Wire Gauge:24 to 6 AWG
Wire Size, Max:10 mm²
