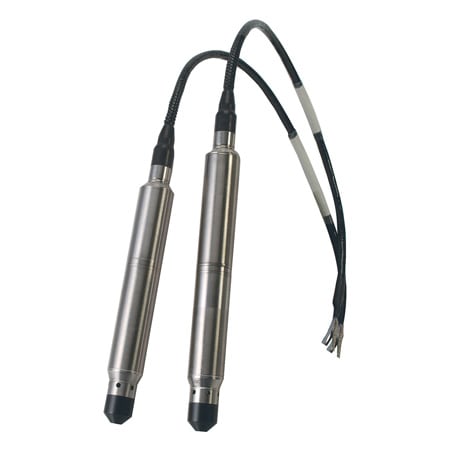

PX709GW | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 1개의 상품

제품 번호 / 가격	Brand	Accuracy	Accuracy Class	Accuracy Detail	Additional Features 1	Additional Features 2	Applications	Bandwidth	Burst Pressure	Cable Material	Cable Sealing	Compliance	Current Draw	Electrical Connection Note	Electrical Output	Electrical Output Note	Input Resistance	Insulation Resistance	Materials, Wetted	Measurement Pressure Type	Measurement Pressure, Max	Measurement Pressure, Min	Output Resistance	Output Signal	Pressure Cycles	Process Connection Size	Process Connection Type	Proof Pressure	Response Time	Response Time Note	Shock	Stability	Stability Note	Supply Power Note	Supply Voltage	Thermal Effect on Span error, Max	Thermal Effect on Zero error, Max	Vibration	Weight	수량 / 장바구니
PX709GW-100AV가격 문의Limited Stock리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.2 %	0.1% to 0.25%	(Combined Linearity, Hysteresis and Repeatability): Standard ± 0.20% BSL or high accuracy, option “HH”, ± 0.08% BSL Setting Accuracy(Span/Zero): ± 0.5% full scale typical, ± 1.0% full scale maximum (± 1.0% full scale typical, ± 2.0% full scale maximum for ranges ≤ 2.5 psi)	Ground Measurements	None	Building and Maintenance, Fluid Measurement and Control, Waste Management	DC to 1 kHz	4x Full Scale	ETFE	Fused to case via molded Neoprene boot rated to 610 m (2000') depth	RoHS	5 mA @ 10 Vdc	Integral lightning surge protection to IEC-61000-4-5 (Level 4)	100 mV/V	100 mV @ 10 Vdc (Ratiometric 5 to 10 Vdc)	1000 to 5000 Ω	100 MΩ	316 Stainless Steel	Absolute	100 psi	0 psi	5000 Ω ± 10%	Millivolt	1 million	9/16 in	UNF Female	Up to 6000 psi	500 µs	500 usec, 0 to 90% step change	50 g, 11 ms, half-sine horizontal and vertical axis	± 0.1%	Long Term Stability (1 year.): ± 0.1% full scale typical	5 to 10 Vdc (ratiometric)	5 to 10 Vdc	± 0.3% span	± 0.3% span , ± 0.3% span	± 20 g	285 g

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Accuracy

Accuracy Class

Accuracy Detail

Additional Features 1

Additional Features 2

Applications

Bandwidth

Burst Pressure

Cable Material

Cable Sealing

Compliance

Current Draw

Electrical Connection Note

Electrical Output

Electrical Output Note

Input Resistance

Insulation Resistance

Materials, Wetted

Measurement Pressure Type

Measurement Pressure, Max

Measurement Pressure, Min

Output Resistance

Output Signal

Pressure Cycles

Process Connection Size

Process Connection Type

Proof Pressure

Response Time

Response Time Note

Shock

Stability

Stability Note

Supply Power Note

Supply Voltage

Thermal Effect on Span error, Max

Thermal Effect on Zero error, Max

Vibration

Weight

수량 / 장바구니

PX709GW-100AV가격 문의Limited Stock리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.2 %

0.1% to 0.25%

(Combined Linearity, Hysteresis and Repeatability): Standard ± 0.20% BSL or high accuracy, option “HH”, ± 0.08% BSL Setting Accuracy(Span/Zero): ± 0.5% full scale typical, ± 1.0% full scale maximum (± 1.0% full scale typical, ± 2.0% full scale maximum for ranges ≤ 2.5 psi)

Ground Measurements

None

Building and Maintenance, Fluid Measurement and Control, Waste Management

DC to 1 kHz

4x Full Scale

ETFE

Fused to case via molded Neoprene boot rated to 610 m (2000') depth

RoHS

5 mA @ 10 Vdc

Integral lightning surge protection to IEC-61000-4-5 (Level 4)

100 mV/V

100 mV @ 10 Vdc (Ratiometric 5 to 10 Vdc)

1000 to 5000 Ω

100 MΩ

316 Stainless Steel

Absolute

100 psi

0 psi

5000 Ω ± 10%

Millivolt

1 million

9/16 in

UNF Female

Up to 6000 psi

500 µs

500 usec, 0 to 90% step change

50 g, 11 ms, half-sine horizontal and vertical axis

± 0.1%

Long Term Stability (1 year.): ± 0.1% full scale typical

5 to 10 Vdc (ratiometric)

5 to 10 Vdc

± 0.3% span

± 0.3% span , ± 0.3% span

± 20 g

285 g
