DwyerOmegaPX709GW

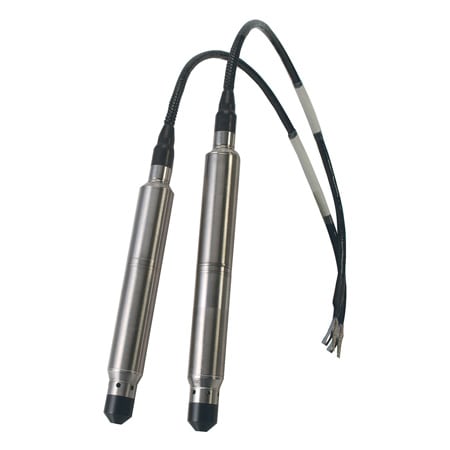

PX709GW-100AV
0 to 100 psi, ± 0.2% Accuracy, 10 mV/V, Submersible Cable
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: Limited Stock리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 0.2 %
Accuracy Class:0.1% to 0.25%
Accuracy Detail:(Combined Linearity, Hysteresis and Repeatability): Standard ± 0.20% BSL or high accuracy, option “HH”, ± 0.08% BSL Setting Accuracy(Span/Zero): ± 0.5% full scale typical, ± 1.0% full scale maximum (± 1.0% full scale typical, ± 2.0% full scale maximum for ranges ≤ 2.5 psi)
Additional Features 1:Ground Measurements
Additional Features 2:None
Applications:Building and Maintenance, Fluid Measurement and Control, Waste Management
Bandwidth:DC to 1 kHz
Burst Pressure:4x Full Scale
Cable Material:ETFE
Cable Sealing:Fused to case via molded Neoprene boot rated to 610 m (2000') depth
Compliance:RoHS
Current Draw:5 mA @ 10 Vdc
Electrical Connection Note:Integral lightning surge protection to IEC-61000-4-5 (Level 4)
Electrical Output:100 mV/V
Electrical Output Note:100 mV @ 10 Vdc (Ratiometric 5 to 10 Vdc)
Input Resistance:1000 to 5000 Ω
Insulation Resistance:100 MΩ
Materials, Wetted:316 Stainless Steel
Measurement Pressure Type:Absolute
Measurement Pressure, Max:100 psi
Measurement Pressure, Min:0 psi
Output Resistance:5000 Ω ± 10%
Output Signal:Millivolt
Pressure Cycles:1 million
Process Connection Size:9/16 in
Process Connection Type:UNF Female
Proof Pressure:Up to 6000 psi
Response Time:500 µs
Response Time Note:500 usec, 0 to 90% step change
Shock:50 g, 11 ms, half-sine horizontal and vertical axis
Stability:± 0.1%
Stability Note:Long Term Stability (1 year.): ± 0.1% full scale typical
Supply Power Note:5 to 10 Vdc (ratiometric)
Supply Voltage:5 to 10 Vdc
Thermal Effect on Span error, Max:± 0.3% span
Thermal Effect on Zero error, Max:± 0.3% span , ± 0.3% span
Vibration:± 20 g
Weight:285 g
