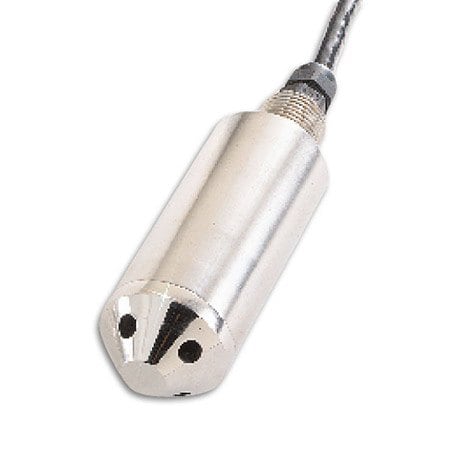

PX78 | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 1개의 상품

제품 번호 / 가격	Brand	Accuracy	Accuracy Class	Accuracy Detail	Burst Pressure	Burst Pressure Note	Cable Length	Diameter	Electrical Connection	Electrical Output	Electrical Output Note	Loop Resistance, Max	Materials, Wetted	Measurement Pressure Type	Measurement Pressure, Max	Measurement Pressure, Min	Output Signal	Process Connection Note	Process Connection Type	Proof Pressure	Supply Voltage	Thermal Effect on Span error, Max	Thermal Effect on Zero error, Max	Zero/Balance Error	수량 / 장바구니
PX78U7-010GI2,182,750 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.05 %	> 0.25%	0.5% linearity, hysteresis, and repeatability combined	3x Full Scale	300% of rated pressure	15 m	1.5 in	Submersible Cable	4 to 20 mA	4 to 20 mA ± 10% adj	(Input voltage – 10) x 50	17-4 Stainless Steel, 316 Stainless Steel	Gauge	10 psig, 10 psi	0 psig, 0 psi	Current	Nose protector included	Submersible	150% Full Scale	10 to 40 Vdc	0.0054% rdg/°C	0.0054% rdg/°C, 0.009% FSO/°C	4 mA ± 0.5%

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Accuracy

Accuracy Class

Accuracy Detail

Burst Pressure

Burst Pressure Note

Cable Length

Diameter

Electrical Connection

Electrical Output

Electrical Output Note

Loop Resistance, Max

Materials, Wetted

Measurement Pressure Type

Measurement Pressure, Max

Measurement Pressure, Min

Output Signal

Process Connection Note

Process Connection Type

Proof Pressure

Supply Voltage

Thermal Effect on Span error, Max

Thermal Effect on Zero error, Max

Zero/Balance Error

수량 / 장바구니

PX78U7-010GI2,182,750 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.05 %

> 0.25%

0.5% linearity, hysteresis, and repeatability combined

3x Full Scale

300% of rated pressure

15 m

1.5 in

Submersible Cable

4 to 20 mA

4 to 20 mA ± 10% adj

(Input voltage – 10) x 50

17-4 Stainless Steel, 316 Stainless Steel

Gauge

10 psig, 10 psi

0 psig, 0 psi

Current

Nose protector included

Submersible

150% Full Scale

10 to 40 Vdc

0.0054% rdg/°C

0.0054% rdg/°C, 0.009% FSO/°C

4 mA ± 0.5%
