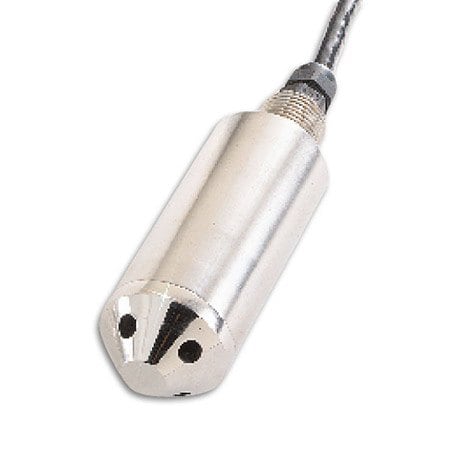

DwyerOmegaPX78
PX78U7-010GI
0 to 10 psi, 4 to 20 mA
- 가격
- 2,182,750 원
- VAT 10%
- 218,275 원
- 총 금액
- 2,401,025 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 0.05 %
Accuracy Class:> 0.25%
Accuracy Detail:0.5% linearity, hysteresis, and repeatability combined
Burst Pressure:3x Full Scale
Burst Pressure Note:300% of rated pressure
Cable Length:15 m
Diameter:1.5 in
Electrical Connection:Submersible Cable
Electrical Output:4 to 20 mA
Electrical Output Note:4 to 20 mA ± 10% adj
Loop Resistance, Max:(Input voltage – 10) x 50
Materials, Wetted:17-4 Stainless Steel, 316 Stainless Steel
Measurement Pressure Type:Gauge
Measurement Pressure, Max:10 psig, 10 psi
Measurement Pressure, Min:0 psig, 0 psi
Output Signal:Current
Process Connection Note:Nose protector included
Process Connection Type:Submersible
Proof Pressure:150% Full Scale
Supply Voltage:10 to 40 Vdc
Thermal Effect on Span error, Max:0.0054% rdg/°C
Thermal Effect on Zero error, Max:0.0054% rdg/°C, 0.009% FSO/°C
Zero/Balance Error:4 mA ± 0.5%
