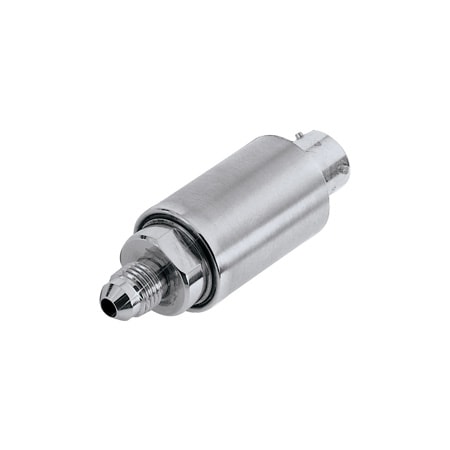

PX5000-MV | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 1개의 상품

제품 번호 / 가격	Brand	Accuracy	Accuracy Class	Accuracy Detail	Applications	Burst Pressure	Burst Pressure Note	Compensated Temperature, Max	Compensated Temperature, Min	Electrical Connection	Electrical Output	Electrical Output Note	Input Resistance	Insulation Resistance	MTBF	Materials, Wetted	Mating Connector	Measurement Pressure Type	Measurement Pressure, Max	Measurement Pressure, Min	Operating Temperature, Max	Operating Temperature, Min	Output Resistance	Output Signal	Pressure Note	Process Connection Size	Process Connection Type	Relative Humidity	Sensing Element	Sensing Element Note	Shock	Stability	Stability Note	Supply Power Note	Supply Voltage	Thermal Effect on Span error, Max	Thermal Effect on Zero error, Max	Vibration	Weight	수량 / 장바구니
PX5000L1-1.5KGV가격 문의	OMEGA Engineering	± 0.15 %	0.1% to 0.25%	Combined linearity, hysteresis and nonrepeatability: ± 0.10% FSO 0 to 15 through 0 to 999 psi; ± 0.15% FSO 1000 psi and above	Aeronautics and Aerospace, Automotive, Specialty Equipment	3x Full Scale	3 times rated pressure or 20,000 psi, whichever is less, will not cause rupture of the pressure containment cavity	121 °C	-54 °C	MIL-26482-I 10-6P	30 mV/V	30 mV typical, 26 mV minimum	2500 Ω typical, 800 Ω minimum, 3000 Ω maximum	500 MΩ	100,000 hours	15-5 PH Stainless Steel, 17-4 Stainless Steel	MIL-26482-I 10-6S	Gauge	1500 psi	0 psi	150 °C	-54 °C	2500 Ω typical,800 Ω minimum, 3300 Ω maximum; for 350 Ω bridge,see Custom Configurations	Millivolt	2 times rated pressure or 15,000 psi, whichever is less, will not cause changes in performance beyond the specified tolerances	7/16 in	AS5205/MS33656-4 Male	Qualified per MIL-STD-810	4-active-arm Strain Gauge Bridge	4-active-arm bridge using sputter-deposited thin-film elements	Qualification level of 100 g, 11 ms, half sine wave without damage	± 0.1%	Calibration Stability: ± 0.1% for 18 months	Electrostatic Discharge: Protected to 15 kV	10 Vdc	± 0.005% FSO/°F	± 0.005% FSO/°F, ± 0.005% FSO/°F	At 35 g peak sinusoidal vibration from 10 Hz to 2000 Hz (1⁄2” D.A.), the output shall not exceed 0.04% FSO/g for 15 psi range to 0.003% FSO/g for 1000 psi and above	145 g

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Accuracy

Accuracy Class

Accuracy Detail

Applications

Burst Pressure

Burst Pressure Note

Compensated Temperature, Max

Compensated Temperature, Min

Electrical Connection

Electrical Output

Electrical Output Note

Input Resistance

Insulation Resistance

MTBF

Materials, Wetted

Mating Connector

Measurement Pressure Type

Measurement Pressure, Max

Measurement Pressure, Min

Operating Temperature, Max

Operating Temperature, Min

Output Resistance

Output Signal

Pressure Note

Process Connection Size

Process Connection Type

Relative Humidity

Sensing Element

Sensing Element Note

Shock

Stability

Stability Note

Supply Power Note

Supply Voltage

Thermal Effect on Span error, Max

Thermal Effect on Zero error, Max

Vibration

Weight

수량 / 장바구니

PX5000L1-1.5KGV가격 문의

OMEGA Engineering

± 0.15 %

0.1% to 0.25%

Combined linearity, hysteresis and nonrepeatability: ± 0.10% FSO 0 to 15 through 0 to 999 psi; ± 0.15% FSO 1000 psi and above

Aeronautics and Aerospace, Automotive, Specialty Equipment

3x Full Scale

3 times rated pressure or 20,000 psi, whichever is less, will not cause rupture of the pressure containment cavity

121 °C

-54 °C

MIL-26482-I 10-6P

30 mV/V

30 mV typical, 26 mV minimum

2500 Ω typical, 800 Ω minimum, 3000 Ω maximum

500 MΩ

100,000 hours

15-5 PH Stainless Steel, 17-4 Stainless Steel

MIL-26482-I 10-6S

Gauge

1500 psi

0 psi

150 °C

-54 °C

2500 Ω typical,800 Ω minimum, 3300 Ω maximum; for 350 Ω bridge,see Custom Configurations

Millivolt

2 times rated pressure or 15,000 psi, whichever is less, will not cause changes in performance beyond the specified tolerances

7/16 in

AS5205/MS33656-4 Male

Qualified per MIL-STD-810

4-active-arm Strain Gauge Bridge

4-active-arm bridge using sputter-deposited thin-film elements

Qualification level of 100 g, 11 ms, half sine wave without damage

± 0.1%

Calibration Stability: ± 0.1% for 18 months

Electrostatic Discharge: Protected to 15 kV

10 Vdc

± 0.005% FSO/°F

± 0.005% FSO/°F, ± 0.005% FSO/°F

At 35 g peak sinusoidal vibration from 10 Hz to 2000 Hz (1⁄2” D.A.), the output shall not exceed 0.04% FSO/g for 15 psi range to 0.003% FSO/g for 1000 psi and above

145 g
