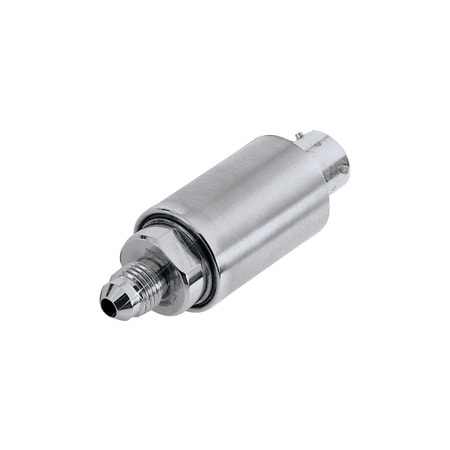

DwyerOmegaPX5000-MV
PX5000L1-1.5KGV
High Performance Pressure Transducer, Ultra High Long Term Stability, Rugged Aerospace Quality
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 문의리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 0.15 %
Accuracy Class:0.1% to 0.25%
Accuracy Detail:Combined linearity, hysteresis and nonrepeatability: ± 0.10% FSO 0 to 15 through 0 to 999 psi; ± 0.15% FSO 1000 psi and above
Applications:Aeronautics and Aerospace, Automotive, Specialty Equipment
Burst Pressure:3x Full Scale
Burst Pressure Note:3 times rated pressure or 20,000 psi, whichever is less, will not cause rupture of the pressure containment cavity
Compensated Temperature, Max:121 °C
Compensated Temperature, Min:-54 °C
Electrical Connection:MIL-26482-I 10-6P
Electrical Output:30 mV/V
Electrical Output Note:30 mV typical, 26 mV minimum
Input Resistance:2500 Ω typical, 800 Ω minimum, 3000 Ω maximum
Insulation Resistance:500 MΩ
MTBF:100,000 hours
Materials, Wetted:15-5 PH Stainless Steel, 17-4 Stainless Steel
Mating Connector:MIL-26482-I 10-6S
Measurement Pressure Type:Gauge
Measurement Pressure, Max:1500 psi
Measurement Pressure, Min:0 psi
Operating Temperature, Max:150 °C
Operating Temperature, Min:-54 °C
Output Resistance:2500 Ω typical,800 Ω minimum, 3300 Ω maximum; for 350 Ω bridge,see Custom Configurations
Output Signal:Millivolt
Pressure Note:2 times rated pressure or 15,000 psi, whichever is less, will not cause changes in performance beyond the specified tolerances
Process Connection Size:7/16 in
Process Connection Type:AS5205/MS33656-4 Male
Relative Humidity:Qualified per MIL-STD-810
Sensing Element:4-active-arm Strain Gauge Bridge
Sensing Element Note:4-active-arm bridge using sputter-deposited thin-film elements
Shock:Qualification level of 100 g, 11 ms, half sine wave without damage
Stability:± 0.1%
Stability Note:Calibration Stability: ± 0.1% for 18 months
Supply Power Note:Electrostatic Discharge: Protected to 15 kV
Supply Voltage:10 Vdc
Thermal Effect on Span error, Max:± 0.005% FSO/°F
Thermal Effect on Zero error, Max:± 0.005% FSO/°F, ± 0.005% FSO/°F
Vibration:At 35 g peak sinusoidal vibration from 10 Hz to 2000 Hz (1⁄2” D.A.), the output shall not exceed 0.04% FSO/g for 15 psi range to 0.003% FSO/g for 1000 psi and above
Weight:145 g
