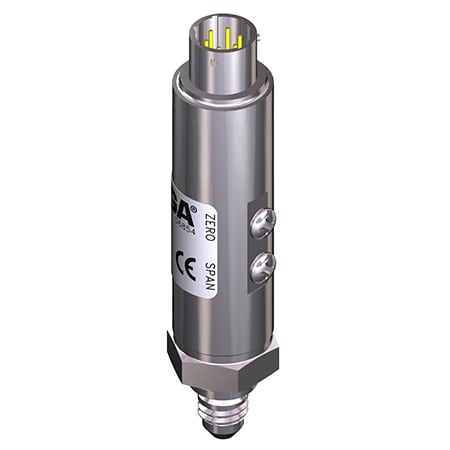

고도로 구성 가능하며, 높은 정확도를 가진 맞춤형 압력 변환기
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 5개의 상품
| 제품 번호 / 가격 | Brand | ADC Resolution | Accuracy | Bandwidth | Burst Pressure | Compensated Temperature, Max | Compensated Temperature, Min | Electrical Connection | Electrical Output | Enclosure Ratings | Insulation Resistance | Materials, Wetted | Mating Connector | Measurement Pressure Type | Measurement Pressure, Max | Measurement Pressure, Min | Media Compatibility | Operating Temperature, Max | Operating Temperature, Min | Output Signal | Pressure Cycles | Process Connection Size | Process Connection Type | Proof Pressure | Response Time | Shock | Span Setting Adjustable Range | Stability | Stability Note | Supply Power Note | Supply Voltage | Thermal Effect on Zero error, Max | Trim Pot Access | Vibration | Weight | Zero Setting Adjustable Range | Zero/Balance Error | Zero/Balance Error Note | Cable Length | Line/Static Pressure | Negative Side differentional compatable fluids or gasses | Positive Side differential wetted materials | Proof Pressure Note | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MMDWU001C1P4C2T2A1P가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | None | ± 0.2 % | DC to 1 kHz | 1000 psi Maximum | 93 °C | -18 °C | 1/2 in NPT male Conduit with Cable | 4 to 20 mA | IP67 | 100 MΩ @ 50 Vdc | 316L Stainless Steel | - | Differential | 1 psi | 0 psi | Air, Alkaline solutions, Any, Argon, Carbon dioxide, Dilute Acids, Gases, Helium, Hydraulic Oil, Hydrogen, Light Oil, Liquids, Nitrogen, Non-corrosive Dry Gasses, Oil, Oxygen, Solvents, Steam, Water, Water-based fluids | 121 °C | -45 °C | Current | 1 million, minimum | 1/4 in | NPT Male | 6x Full Scale up to 1000 psi | <1 ms | 50 g, 11 ms half sine, vertical and horizontal axis | ± 10% span | ± 0.1% | Long Term Stability (1-Year): ± 0.1% FS typical. | 9 to 30 Vdc [9 to 20 Vdc above 105°C (229°F)] max loop res Ω = (Vs-9) x 50 | 9 to 30 Vdc | ± 1% FS | O-ring sealed screws on side cover | 5-2000-5 Hz, 30 minute cycle, Curve L, Mil-Spec 810 figure 514-2-2, vertical and horizontal axis | 200 g | ± 10% span | - | - | 2 m | 500 psi max applied to both sides simultaneously | Same as positive side | 316L stainless steel | Positive Side | |
MMDWU001V10P3D0T1A1가격 문의6 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | None | ± 0.08 % | DC to 1 kHz | 1000 psi Maximum | 60 °C | 4 °C | Cable | 0 to 10 V | IP67 | 100 MΩ @ 50 Vdc | 316L Stainless Steel | - | Differential | 1 psi | 0 psi | Air, Alkaline solutions, Any, Argon, Carbon dioxide, Dilute Acids, Gases, Helium, Hydraulic Oil, Hydrogen, Light Oil, Liquids, Nitrogen, Non-corrosive Dry Gasses, Oil, Oxygen, Solvents, Steam, Water, Water-based fluids | 121 °C | -45 °C | Voltage | 1 million, minimum | 1/4 in | NPT Female | 6x Full Scale up to 1000 psi | <1 ms | 50 g, 11 ms half sine, vertical and horizontal axis | - | ± 0.1% | Long Term Stability (1-Year): ± 0.1% FS typical. | 15 to 30 Vdc @ 10 mA | 15 to 30 Vdc | ± 1% FS | - | 5-2000-5 Hz, 30 minute cycle, Curve L, Mil-Spec 810 figure 514-2-2, vertical and horizontal axis | 200 g | - | - | - | 2 m | 500 psi max applied to both sides simultaneously | Same as positive side | 316L stainless steel | Positive Side | |
MMG10WV10P4D0T2A2P가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | None | ± 0.2 % | DC to 1 kHz | 1000 psi Maximum | 93 °C | -18 °C | Cable | 0 to 10 V | IP67 | 100 MΩ @ 50 Vdc | 316L Stainless Steel | - | Gauge | 0.361 psi | 0 psi | Air, Alkaline solutions, Any, Argon, Carbon dioxide, Dilute Acids, Gases, Helium, Hydraulic Oil, Hydrogen, Light Oil, Liquids, Nitrogen, Non-corrosive Dry Gasses, Oil, Oxygen, Solvents, Steam, Water, Water-based fluids | 121 °C | -45 °C | Voltage | 1 million, minimum | 1/4 in | NPT Female | 10x Full Scale up to 1000 psi | <1 ms | 50 g, 11 ms half sine (under test) | ± 10% span | ± 0.1% | Long Term Stability (1-Year): ± 0.1% FS typical. | 15 to 30 Vdc @ 10 mA | 15 to 30 Vdc | ± 0.8% FS | O-ring sealed screws on side cover | ± 20 g | 285 g | ± 10% span | ± 0.5% FS typical ± 1 max | ± 0.5% FS typical ± 1 max (for ranges ≤2.5 psi ± 1% typ. ± 2% max) | 2 m | - | - | - | - | |
MMV015C1M2C1T3A3가격 문의14 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | None | ± 0.05 % | DC to 1 kHz | 3000 psi | 60 °C | -7 °C | MIL-26482-I 10-6P | 4 to 20 mA | IP65 | 100 MΩ @ 50 Vdc | 316L Stainless Steel | MIL-26482-I 10-6S | Vacuum | -30.5 inHg | 0 psi | Air, Alkaline solutions, Any, Argon, Carbon dioxide, Dilute Acids, Gases, Helium, Hydraulic Oil, Hydrogen, Light Oil, Liquids, Nitrogen, Non-corrosive Dry Gasses, Oil, Oxygen, Solvents, Steam, Water, Water-based fluids | 121 °C | -45 °C | Current | 1 million, minimum | 1/4 in | NPT Male | 4x Full Scale up to 3000 psi | <1 ms | 50 g, 11 ms half sine (under test) | - | ± 0.1% | Long Term Stability (1-Year): ± 0.1% FS typical. | 9 to 30 Vdc [9 to 20 Vdc above 105°C (229°F)] max loop res Ω = (Vs-9) x 50 | 9 to 30 Vdc | ± 0.5% FS | - | ± 20 g | 285 g | - | ± 0.5% FS typical ± 1 max | ± 0.5% FS typical ± 1 max (for ranges ≤2.5 psi ± 1% typ. ± 2% max) | - | - | - | - | - | |
MMA1.0KV10P2C1T3A3P가격 문의27 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | None | ± 0.05 % | DC to 1 kHz | 3000 psi | 60 °C | -7 °C | MIL-26482-I 10-6P | 0 to 10 V | IP65 | 100 MΩ @ 50 Vdc | 316L Stainless Steel | MIL-26482-I 10-6S | Absolute | 1000 psi | 0 psi | Air, Alkaline solutions, Any, Argon, Carbon dioxide, Dilute Acids, Gases, Helium, Hydraulic Oil, Hydrogen, Light Oil, Liquids, Nitrogen, Non-corrosive Dry Gasses, Oil, Oxygen, Solvents, Steam, Water, Water-based fluids | 121 °C | -45 °C | Voltage | 1 million, minimum | 1/4 in | NPT Male | 4x Full Scale up to 3000 psi | <1 ms | 50 g, 11 ms half sine (under test) | ± 10% span | ± 0.1% | Long Term Stability (1-Year): ± 0.1% FS typical. | 15 to 30 Vdc @ 10 mA | 15 to 30 Vdc | ± 0.5% FS | O-ring sealed screws on side cover | ± 20 g | 285 g | ± 10% span | ± 0.5% FS typical ± 1 max | ± 0.5% FS typical ± 1 max (for ranges ≤2.5 psi ± 1% typ. ± 2% max) | - | - | - | - | - |
