DwyerOmegaMM-Configurable

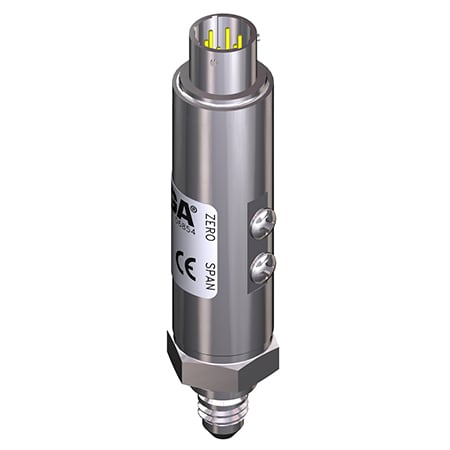

MMV015C1M2C1T3A3

0 to 30.5 inHg, <0.1% Accuracy, Current, 4 to 20 mA 1/4", NPT Male, MIL-26482-I 10-6P, -6 to 60 °C (20 to 140 °F)

판매 가격: 가격 문의

재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.

무료 배송 10만원 이상

납기: 14 weeks리드타임은 상황에 따라 달라질 수 있습니다.

연구비카드 사용가능

제품 사양

Brand:OMEGA Engineering

ADC Resolution:None

Accuracy:± 0.05 %

Bandwidth:DC to 1 kHz

Burst Pressure:3000 psi

Compensated Temperature, Max:60 °C

Compensated Temperature, Min:-7 °C

Electrical Connection:MIL-26482-I 10-6P

Electrical Output:4 to 20 mA

Enclosure Ratings:IP65

Insulation Resistance:100 MΩ @ 50 Vdc

Materials, Wetted:316L Stainless Steel

Mating Connector:MIL-26482-I 10-6S

Measurement Pressure Type:Vacuum

Measurement Pressure, Max:-30.5 inHg

Measurement Pressure, Min:0 psi

Media Compatibility:Air, Alkaline solutions, Any, Argon, Carbon dioxide, Dilute Acids, Gases, Helium, Hydraulic Oil, Hydrogen, Light Oil, Liquids, Nitrogen, Non-corrosive Dry Gasses, Oil, Oxygen, Solvents, Steam, Water, Water-based fluids

Operating Temperature, Max:121 °C

Operating Temperature, Min:-45 °C

Output Signal:Current

Pressure Cycles:1 million, minimum

Process Connection Size:1/4 in

Process Connection Type:NPT Male

Proof Pressure:4x Full Scale up to 3000 psi

Response Time:<1 ms

Shock:50 g, 11 ms half sine (under test)

Stability:± 0.1%

Stability Note:Long Term Stability (1-Year): ± 0.1% FS typical.

Supply Power Note:9 to 30 Vdc [9 to 20 Vdc above 105°C (229°F)] max loop res Ω = (Vs-9) x 50

Supply Voltage:9 to 30 Vdc

Thermal Effect on Zero error, Max:± 0.5% FS

Vibration:± 20 g

Weight:285 g

Zero/Balance Error:± 0.5% FS typical ± 1 max

Zero/Balance Error Note:± 0.5% FS typical ± 1 max (for ranges ≤2.5 psi ± 1% typ. ± 2% max)
