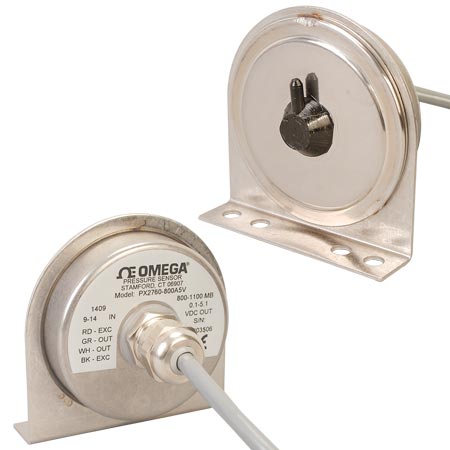

PX2760 | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 3개의 상품

제품 번호 / 가격	Brand	Acceleration, Max	Accuracy	Accuracy Class	Accuracy Detail	Cable Length	Compensated Temperature, Max	Electrical Connection	Electrical Output	Electrical Output Note	Materials, Wetted	Measurement Pressure Type	Measurement Pressure, Max	Measurement Pressure, Min	Media Compatibility	Operating Temperature, Max	Operating Temperature, Min	Output Resistance	Output Signal	Power Supply	Pressure Note	Process Connection Size	Process Connection Type	Resolution	Response Time	Response Time Note	Sensing Element	Shock	Stability	Stability Note	Storage Temperature, Max	Storage Temperature, Min	Supply Power Note	Supply Voltage	Thermal Effect on Span error, Max	Thermal Effect on Zero error, Max	Vibration
PX2760-800A5V1,395,180 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	10 g	± 0.25 %	0.1% to 0.25%	± 0.25% span RSS at constant temperature (includes linearity, repeatability and hysteresis)	0.6 m	55 °C	Cable	0.1 to 5.1 V	0.1 to 5.1 Vdc, 3-wire	Alumina, Elastomer, Gold, Stainless Steel	Barometric	1100 mBar	800 mBar	Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen	80 °C	-20 °C	<5 Ω	Voltage	<0.2 W	Range Max Pressure 600 to 1100 mbar 20 psia (450 to 825 mmHg) 800 to 1100 mbar 20 psia (600 to 825 mmHg) 0 to 20 psia 30 psia (0 to 1034 mmHg)	1/8 in	Barbed Fitting	Infinite, limited only by noise level (0.005% FS)	< 10 ms	< 10 ms to reach 90%	Capacitive	50 g, operating, 1 ⁄2 sine 10 ms	± 0.25%	Long-Term Stability: ± 0.25% FS over 6 months @ 70°F	120 °C	-55 °C	12 Vdc (9 to 14.5 Vdc max)	9 to 14.5 Vdc	± 1% gage	± 0.01%/°F span , ± 0.01%/°F span	2 g from 5 to 500 Hz
PX2760-600A5V1,359,730 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	10 g	± 0.25 %	0.1% to 0.25%	± 0.25% span RSS at constant temperature (includes linearity, repeatability and hysteresis)	0.6 m	55 °C	Cable	0.1 to 5.1 V	0.1 to 5.1 Vdc, 3-wire	Alumina, Elastomer, Gold, Stainless Steel	Barometric	1100 mBar	600 mBar	Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen	80 °C	-20 °C	<5 Ω	Voltage	<0.2 W	Range Max Pressure 600 to 1100 mbar 20 psia (450 to 825 mmHg) 800 to 1100 mbar 20 psia (600 to 825 mmHg) 0 to 20 psia 30 psia (0 to 1034 mmHg)	1/8 in	Barbed Fitting	Infinite, limited only by noise level (0.005% FS)	< 10 ms	< 10 ms to reach 90%	Capacitive	50 g, operating, 1 ⁄2 sine 10 ms	± 0.25%	Long-Term Stability: ± 0.25% FS over 6 months @ 70°F	120 °C	-55 °C	12 Vdc (9 to 14.5 Vdc max)	9 to 14.5 Vdc	± 1% gage	± 0.01%/°F span , ± 0.01%/°F span	2 g from 5 to 500 Hz
PX2760-20A5V1,320,120 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	10 g	± 0.25 %	0.1% to 0.25%	± 0.25% span RSS at constant temperature (includes linearity, repeatability and hysteresis)	0.6 m	55 °C	Cable	0.1 to 5.1 V	0.1 to 5.1 Vdc, 3-wire	Alumina, Elastomer, Gold, Stainless Steel	Absolute	20 psi	0 psi	Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen	80 °C	-20 °C	<5 Ω	Voltage	<0.2 W	Range Max Pressure 600 to 1100 mbar 20 psia (450 to 825 mmHg) 800 to 1100 mbar 20 psia (600 to 825 mmHg) 0 to 20 psia 30 psia (0 to 1034 mmHg)	1/8 in	Barbed Fitting	Infinite, limited only by noise level (0.005% FS)	< 10 ms	< 10 ms to reach 90%	Capacitive	50 g, operating, 1 ⁄2 sine 10 ms	± 0.25%	Long-Term Stability: ± 0.25% FS over 6 months @ 70°F	120 °C	-55 °C	12 Vdc (9 to 14.5 Vdc max)	9 to 14.5 Vdc	± 1% gage	± 0.01%/°F span , ± 0.01%/°F span	2 g from 5 to 500 Hz

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Acceleration, Max

Accuracy

Accuracy Class

Accuracy Detail

Cable Length

Compensated Temperature, Max

Compensated Temperature, Min

Electrical Connection

Electrical Output

Electrical Output Note

Materials, Wetted

Measurement Pressure Type

Measurement Pressure, Max

Measurement Pressure, Min

Media Compatibility

Operating Temperature, Max

Operating Temperature, Min

Output Resistance

Output Signal

Power Supply

Pressure Note

Process Connection Size

Process Connection Type

Resolution

Response Time

Response Time Note

Sensing Element

Shock

Stability

Stability Note

Storage Temperature, Max

Storage Temperature, Min

Supply Power Note

Supply Voltage

Thermal Effect on Span error, Max

Thermal Effect on Zero error, Max

Vibration

수량 / 장바구니

PX2760-800A5V1,395,180 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

10 g

± 0.25 %

0.1% to 0.25%

± 0.25% span RSS at constant temperature (includes linearity, repeatability and hysteresis)

0.6 m

55 °C

0 °C

Cable

0.1 to 5.1 V

0.1 to 5.1 Vdc, 3-wire

Alumina, Elastomer, Gold, Stainless Steel

Barometric

1100 mBar

800 mBar

Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen

80 °C

-20 °C

<5 Ω

Voltage

<0.2 W

Range Max Pressure 600 to 1100 mbar 20 psia (450 to 825 mmHg) 800 to 1100 mbar 20 psia (600 to 825 mmHg) 0 to 20 psia 30 psia (0 to 1034 mmHg)

1/8 in

Barbed Fitting

Infinite, limited only by noise level (0.005% FS)

< 10 ms

< 10 ms to reach 90%

Capacitive

50 g, operating, 1 ⁄2 sine 10 ms

± 0.25%

Long-Term Stability: ± 0.25% FS over 6 months @ 70°F

120 °C

-55 °C

12 Vdc (9 to 14.5 Vdc max)

9 to 14.5 Vdc

± 1% gage

± 0.01%/°F span , ± 0.01%/°F span

2 g from 5 to 500 Hz

PX2760-600A5V1,359,730 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

10 g

± 0.25 %

0.1% to 0.25%

± 0.25% span RSS at constant temperature (includes linearity, repeatability and hysteresis)

0.6 m

55 °C

0 °C

Cable

0.1 to 5.1 V

0.1 to 5.1 Vdc, 3-wire

Alumina, Elastomer, Gold, Stainless Steel

Barometric

1100 mBar

600 mBar

Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen

80 °C

-20 °C

<5 Ω

Voltage

<0.2 W

Range Max Pressure 600 to 1100 mbar 20 psia (450 to 825 mmHg) 800 to 1100 mbar 20 psia (600 to 825 mmHg) 0 to 20 psia 30 psia (0 to 1034 mmHg)

1/8 in

Barbed Fitting

Infinite, limited only by noise level (0.005% FS)

< 10 ms

< 10 ms to reach 90%

Capacitive

50 g, operating, 1 ⁄2 sine 10 ms

± 0.25%

Long-Term Stability: ± 0.25% FS over 6 months @ 70°F

120 °C

-55 °C

12 Vdc (9 to 14.5 Vdc max)

9 to 14.5 Vdc

± 1% gage

± 0.01%/°F span , ± 0.01%/°F span

2 g from 5 to 500 Hz

PX2760-20A5V1,320,120 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

10 g

± 0.25 %

0.1% to 0.25%

± 0.25% span RSS at constant temperature (includes linearity, repeatability and hysteresis)

0.6 m

55 °C

0 °C

Cable

0.1 to 5.1 V

0.1 to 5.1 Vdc, 3-wire

Alumina, Elastomer, Gold, Stainless Steel

Absolute

20 psi

0 psi

Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen

80 °C

-20 °C

<5 Ω

Voltage

<0.2 W

Range Max Pressure 600 to 1100 mbar 20 psia (450 to 825 mmHg) 800 to 1100 mbar 20 psia (600 to 825 mmHg) 0 to 20 psia 30 psia (0 to 1034 mmHg)

1/8 in

Barbed Fitting

Infinite, limited only by noise level (0.005% FS)

< 10 ms

< 10 ms to reach 90%

Capacitive

50 g, operating, 1 ⁄2 sine 10 ms

± 0.25%

Long-Term Stability: ± 0.25% FS over 6 months @ 70°F

120 °C

-55 °C

12 Vdc (9 to 14.5 Vdc max)

9 to 14.5 Vdc

± 1% gage

± 0.01%/°F span , ± 0.01%/°F span

2 g from 5 to 500 Hz
