DwyerOmegaPX2760

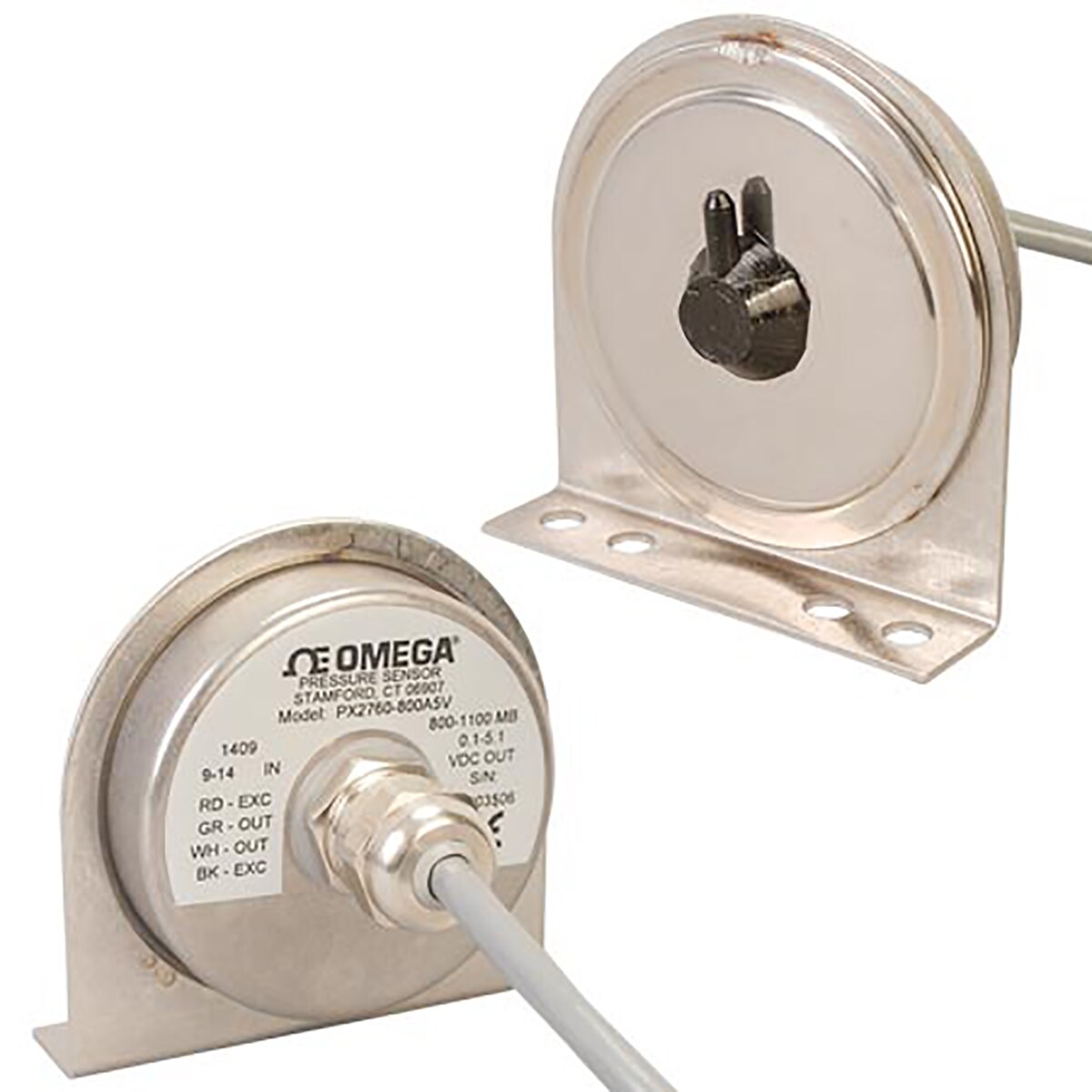

PX2760-800A5V
800 to 1,100 mbar, Barometric Pressure
- 가격
- 1,395,180 원
- VAT 10%
- 139,518 원
- 총 금액
- 1,534,698 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 9 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Acceleration, Max:10 g
Accuracy:± 0.25 %
Accuracy Class:0.1% to 0.25%
Accuracy Detail:± 0.25% span RSS at constant temperature (includes linearity, repeatability and hysteresis)
Cable Length:0.6 m
Compensated Temperature, Max:55 °C
Compensated Temperature, Min:0 °C
Electrical Connection:Cable
Electrical Output:0.1 to 5.1 V
Electrical Output Note:0.1 to 5.1 Vdc, 3-wire
Materials, Wetted:Alumina, Elastomer, Gold, Stainless Steel
Measurement Pressure Type:Barometric
Measurement Pressure, Max:1100 mBar
Measurement Pressure, Min:800 mBar
Media Compatibility:Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen
Operating Temperature, Max:80 °C
Operating Temperature, Min:-20 °C
Output Resistance:<5 Ω
Output Signal:Voltage
Power Supply:<0.2 W
Pressure Note:Range Max Pressure 600 to 1100 mbar 20 psia (450 to 825 mmHg) 800 to 1100 mbar 20 psia (600 to 825 mmHg) 0 to 20 psia 30 psia (0 to 1034 mmHg)
Process Connection Size:1/8 in
Process Connection Type:Barbed Fitting
Resolution:Infinite, limited only by noise level (0.005% FS)
Response Time:< 10 ms
Response Time Note:< 10 ms to reach 90%
Sensing Element:Capacitive
Shock:50 g, operating, 1 ⁄2 sine 10 ms
Stability:± 0.25%
Stability Note:Long-Term Stability: ± 0.25% FS over 6 months @ 70°F
Storage Temperature, Max:120 °C
Storage Temperature, Min:-55 °C
Supply Power Note:12 Vdc (9 to 14.5 Vdc max)
Supply Voltage:9 to 14.5 Vdc
Thermal Effect on Span error, Max:± 1% gage
Thermal Effect on Zero error, Max:± 0.01%/°F span , ± 0.01%/°F span
Vibration:2 g from 5 to 500 Hz
