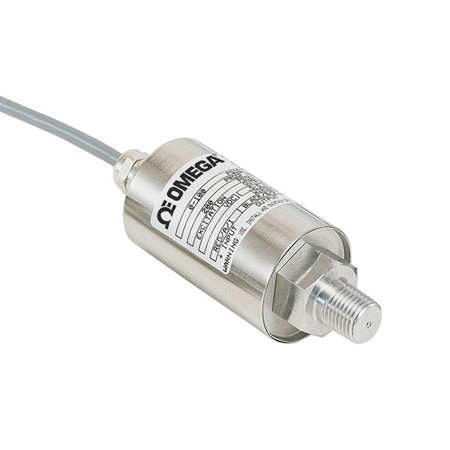

PX305 | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 1개의 상품

제품 번호 / 가격	Brand	Accuracy	Accuracy Class	Accuracy Detail	Compensated Temperature, Max	Compensated Temperature, Min	Electrical Connection	Electrical Output	Electrical Output Note	Gauge Type	Input Resistance	Materials, Wetted	Measurement Pressure Type	Measurement Pressure, Max	Measurement Pressure, Min	Operating Temperature, Max	Operating Temperature, Min	Output Signal	Process Connection Size	Process Connection Type	Proof Pressure	Proof Pressure Note	Shock	Span Setting Adjustable Range	Stability	Supply Power Note	Supply Voltage	Vibration	Weight	Zero/Balance Error	수량 / 장바구니
PX315-3KGI가격 문의	OMEGA Engineering	± 0.25 %	0.1% to 0.25%	± 0.25% FS (linearity, hysteresis, repeatability); vacuum ranges ± 0.35% typ, ± 0.5% max	71 °C	-1 °C	DIN 43650 C (solenoid valve)	4 to 20 mA	4 to 20 mA (2-wire reverse polarity protected)	Stainless steel diaphragm,silicone oil-filled piezoresistive semiconductor sensor	(Vpower – Vmin) x 50 (1500 Ω max)	17-4 Stainless Steel, 300 Stainless Steel	Gauge	3000 psi	0 psi	71 °C	-18 °C	Current	1/4 in	NPT Male	2x Full Scale	200% or 13,000 psi max, whichever is less	50 g, 11 ms half-sine	16 mA ± 1% FS	± 0.5%	12 to 30 Vdc unregulated	12 to 30 Vdc	15 g, 10 to 2000 Hz	266 g	4 mA ± 2%

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Accuracy

Accuracy Class

Accuracy Detail

Compensated Temperature, Max

Compensated Temperature, Min

Electrical Connection

Electrical Output

Electrical Output Note

Gauge Type

Input Resistance

Materials, Wetted

Measurement Pressure Type

Measurement Pressure, Max

Measurement Pressure, Min

Operating Temperature, Max

Operating Temperature, Min

Output Signal

Process Connection Size

Process Connection Type

Proof Pressure

Proof Pressure Note

Shock

Span Setting Adjustable Range

Stability

Supply Power Note

Supply Voltage

Vibration

Weight

Zero/Balance Error

수량 / 장바구니

PX315-3KGI가격 문의

OMEGA Engineering

± 0.25 %

0.1% to 0.25%

± 0.25% FS (linearity, hysteresis, repeatability); vacuum ranges ± 0.35% typ, ± 0.5% max

71 °C

-1 °C

DIN 43650 C (solenoid valve)

4 to 20 mA

4 to 20 mA (2-wire reverse polarity protected)

Stainless steel diaphragm,silicone oil-filled piezoresistive semiconductor sensor

(Vpower – Vmin) x 50 (1500 Ω max)

17-4 Stainless Steel, 300 Stainless Steel

Gauge

3000 psi

0 psi

71 °C

-18 °C

Current

1/4 in

NPT Male

2x Full Scale

200% or 13,000 psi max, whichever is less

50 g, 11 ms half-sine

16 mA ± 1% FS

± 0.5%

12 to 30 Vdc unregulated

12 to 30 Vdc

15 g, 10 to 2000 Hz

266 g

4 mA ± 2%
