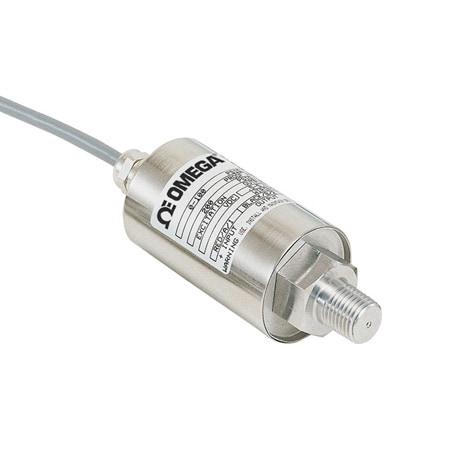

DwyerOmegaPX305
PX315-3KGI
General Purpose Pressure Transmitter
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 문의리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 0.25 %
Accuracy Class:0.1% to 0.25%
Accuracy Detail:± 0.25% FS (linearity, hysteresis, repeatability); vacuum ranges ± 0.35% typ, ± 0.5% max
Compensated Temperature, Max:71 °C
Compensated Temperature, Min:-1 °C
Electrical Connection:DIN 43650 C (solenoid valve)
Electrical Output:4 to 20 mA
Electrical Output Note:4 to 20 mA (2-wire reverse polarity protected)
Gauge Type:Stainless steel diaphragm,silicone oil-filled piezoresistive semiconductor sensor
Input Resistance:(Vpower – Vmin) x 50 (1500 Ω max)
Materials, Wetted:17-4 Stainless Steel, 300 Stainless Steel
Measurement Pressure Type:Gauge
Measurement Pressure, Max:3000 psi
Measurement Pressure, Min:0 psi
Operating Temperature, Max:71 °C
Operating Temperature, Min:-18 °C
Output Signal:Current
Process Connection Size:1/4 in
Process Connection Type:NPT Male
Proof Pressure:2x Full Scale
Proof Pressure Note:200% or 13,000 psi max, whichever is less
Shock:50 g, 11 ms half-sine
Span Setting Adjustable Range:16 mA ± 1% FS
Stability:± 0.5%
Supply Power Note:12 to 30 Vdc unregulated
Supply Voltage:12 to 30 Vdc
Vibration:15 g, 10 to 2000 Hz
Weight:266 g
Zero/Balance Error:4 mA ± 2%
