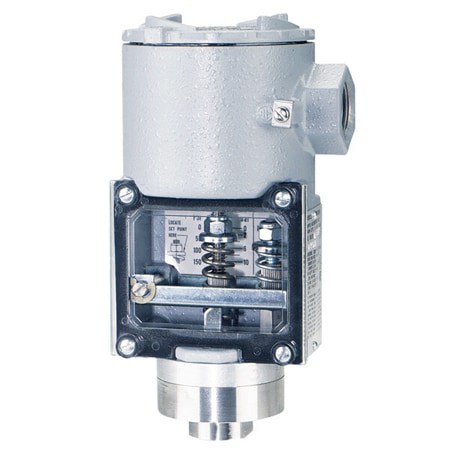

방수 방폭 압력 스위치, 3000 psi, 5% 데드밴드
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 9개의 상품
| 제품 번호 / 가격 | Brand | Compliance | Deadband | Electrical Connection | Enclosure Ratings | Enclosure Ratings Note | Material Construction Option | Materials, Wetted | Measurement Pressure Type | Measurement Pressure, Max | Measurement Pressure, Min | Mounting Orientation | Operating Temperature, Max | Operating Temperature, Min | Pressure Limits | Process Connection Size | Process Connection Type | Process Temperature, Max | Process Temperature, Min | Set Point Adjustment | Switch Note | Switch Rating | Switch Type | Weight | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SA1113E-S5-K1가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ATEX, CE, CSA, UL | 12 to 300 psi | 3/4 in NPT female Conduit with Screw Terminal block | Hazardous Location Rated, NEMA Type 4X, NEMA Type 7, NEMA Type 9 | Weatherproof and Explosion-proof. Listed with UL and CSA for Class I, Groups B, C and D; Class II Groups E, F, and G. ATEX Compliant 2813 II 2 G Ex d IIC T6 Gb Process Temperature 75°C. Weatherproof UL Rated Type 4. Meets NEMA 4X (IP66). EC-Type Certificate KEMA 04ATEX2186 X ATEX Standards: EN 60079-0:2009; EN 60079-1:2007 IECEx Certified for Ex d IIC T6 Gb IEC Standards: IEC 60079-0:2007; IEC 60079-1:2007 IECEx Certificate of Conformity: IECEx DEK 11.0095X | 316 Stainless Steel | 316 Stainless Steel, Perfluoroelastomer | Gauge | 500 psi | 30 psi | 20° Off Vertical | 180 °F | -30 °F | Up to 1200 psi | 1/4 in | NPT Female | 167 °F | -4 °F | Internal Thumbwheel or Nut | Snap action switch rated 15 A @ 125/250/480 VAC, 1/8 HP @ 125 VAC, 1/4 HP @250 VAC, 1/2 A @ 125 VDC resistive, 1/4 A @ 250 VDC resistive | 15 A @ 125/250/480 Vac, 1/8 hp @ 125 Vac, 1/4 hp @250 Vac, 1/2 A @ 125 Vdc, 1/4 A @ 250 Vdc | SPDT Snap | 3.5 lb | |
SA1113E-S5-K2가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ATEX, CE, CSA, UL | 12 to 300 psi | 3/4 in NPT female Conduit with Screw Terminal block | Hazardous Location Rated, NEMA Type 4X, NEMA Type 7, NEMA Type 9 | Weatherproof and Explosion-proof. Listed with UL and CSA for Class I, Groups B, C and D; Class II Groups E, F, and G. ATEX Compliant 2813 II 2 G Ex d IIC T6 Gb Process Temperature 75°C. Weatherproof UL Rated Type 4. Meets NEMA 4X (IP66). EC-Type Certificate KEMA 04ATEX2186 X ATEX Standards: EN 60079-0:2009; EN 60079-1:2007 IECEx Certified for Ex d IIC T6 Gb IEC Standards: IEC 60079-0:2007; IEC 60079-1:2007 IECEx Certificate of Conformity: IECEx DEK 11.0095X | 316 Stainless Steel | 316 Stainless Steel, Perfluoroelastomer | Gauge | 500 psi | 30 psi | 20° Off Vertical | 180 °F | -30 °F | Up to 1200 psi | 1/2 in | NPT Female | 167 °F | -4 °F | Internal Thumbwheel or Nut | Snap action switch rated 15 A @ 125/250/480 VAC, 1/8 HP @ 125 VAC, 1/4 HP @250 VAC, 1/2 A @ 125 VDC resistive, 1/4 A @ 250 VDC resistive | 15 A @ 125/250/480 Vac, 1/8 hp @ 125 Vac, 1/4 hp @250 Vac, 1/2 A @ 125 Vdc, 1/4 A @ 250 Vdc | SPDT Snap | 3.5 lb | |
SA1113E-A4-K1가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ATEX, CE, CSA, UL | 12 to 300 psi | 3/4 in NPT female Conduit with Screw Terminal block | Hazardous Location Rated, NEMA Type 4X, NEMA Type 7, NEMA Type 9 | Weatherproof and Explosion-proof. Listed with UL and CSA for Class I, Groups B, C and D; Class II Groups E, F, and G. ATEX Compliant 2813 II 2 G Ex d IIC T6 Gb Process Temperature 75°C. Weatherproof UL Rated Type 4. Meets NEMA 4X (IP66). EC-Type Certificate KEMA 04ATEX2186 X ATEX Standards: EN 60079-0:2009; EN 60079-1:2007 IECEx Certified for Ex d IIC T6 Gb IEC Standards: IEC 60079-0:2007; IEC 60079-1:2007 IECEx Certificate of Conformity: IECEx DEK 11.0095X | Aluminum | Aluminum, Buna-N (NBR) | Gauge | 500 psi | 30 psi | 20° Off Vertical | 180 °F | -30 °F | Up to 1200 psi | 1/4 in | NPT Female | 167 °F | -4 °F | Internal Thumbwheel or Nut | Snap action switch rated 15 A @ 125/250/480 VAC, 1/8 HP @ 125 VAC, 1/4 HP @250 VAC, 1/2 A @ 125 VDC resistive, 1/4 A @ 250 VDC resistive | 15 A @ 125/250/480 Vac, 1/8 hp @ 125 Vac, 1/4 hp @250 Vac, 1/2 A @ 125 Vdc, 1/4 A @ 250 Vdc | SPDT Snap | 3.5 lb | |
SA1112E-S5-K2가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ATEX, CE, CSA, UL | 5 to 150 psi | 3/4 in NPT female Conduit with Screw Terminal block | Hazardous Location Rated, NEMA Type 4X, NEMA Type 7, NEMA Type 9 | Weatherproof and Explosion-proof. Listed with UL and CSA for Class I, Groups B, C and D; Class II Groups E, F, and G. ATEX Compliant 2813 II 2 G Ex d IIC T6 Gb Process Temperature 75°C. Weatherproof UL Rated Type 4. Meets NEMA 4X (IP66). EC-Type Certificate KEMA 04ATEX2186 X ATEX Standards: EN 60079-0:2009; EN 60079-1:2007 IECEx Certified for Ex d IIC T6 Gb IEC Standards: IEC 60079-0:2007; IEC 60079-1:2007 IECEx Certificate of Conformity: IECEx DEK 11.0095X | 316 Stainless Steel | 316 Stainless Steel, Perfluoroelastomer | Gauge | 250 psi | 20 psi | 20° Off Vertical | 180 °F | -30 °F | Up to 1200 psi | 1/2 in | NPT Female | 167 °F | -4 °F | Internal Thumbwheel or Nut | Snap action switch rated 15 A @ 125/250/480 VAC, 1/8 HP @ 125 VAC, 1/4 HP @250 VAC, 1/2 A @ 125 VDC resistive, 1/4 A @ 250 VDC resistive | 15 A @ 125/250/480 Vac, 1/8 hp @ 125 Vac, 1/4 hp @250 Vac, 1/2 A @ 125 Vdc, 1/4 A @ 250 Vdc | SPDT Snap | 3.5 lb | |
SA1112E-S5-K1가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ATEX, CE, CSA, UL | 5 to 150 psi | 3/4 in NPT female Conduit with Screw Terminal block | Hazardous Location Rated, NEMA Type 4X, NEMA Type 7, NEMA Type 9 | Weatherproof and Explosion-proof. Listed with UL and CSA for Class I, Groups B, C and D; Class II Groups E, F, and G. ATEX Compliant 2813 II 2 G Ex d IIC T6 Gb Process Temperature 75°C. Weatherproof UL Rated Type 4. Meets NEMA 4X (IP66). EC-Type Certificate KEMA 04ATEX2186 X ATEX Standards: EN 60079-0:2009; EN 60079-1:2007 IECEx Certified for Ex d IIC T6 Gb IEC Standards: IEC 60079-0:2007; IEC 60079-1:2007 IECEx Certificate of Conformity: IECEx DEK 11.0095X | 316 Stainless Steel | 316 Stainless Steel, Perfluoroelastomer | Gauge | 250 psi | 20 psi | 20° Off Vertical | 180 °F | -30 °F | Up to 1200 psi | 1/4 in | NPT Female | 167 °F | -4 °F | Internal Thumbwheel or Nut | Snap action switch rated 15 A @ 125/250/480 VAC, 1/8 HP @ 125 VAC, 1/4 HP @250 VAC, 1/2 A @ 125 VDC resistive, 1/4 A @ 250 VDC resistive | 15 A @ 125/250/480 Vac, 1/8 hp @ 125 Vac, 1/4 hp @250 Vac, 1/2 A @ 125 Vdc, 1/4 A @ 250 Vdc | SPDT Snap | 3.5 lb | |
SA1111E-S5-K2가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | CE, CSA, UL | 4 to 75 psi | 3/4 in NPT female Conduit with Screw Terminal block | Hazardous Location Rated, NEMA Type 4X, NEMA Type 7, NEMA Type 9 | Weatherproof and Explosion-proof. Listed with UL and CSA for Class I, Groups B, C and D; Class II Groups E, F, and G. ATEX Compliant 2813 II 2 G Ex d IIC T6 Gb Process Temperature 75°C. Weatherproof UL Rated Type 4. Meets NEMA 4X (IP66). EC-Type Certificate KEMA 04ATEX2186 X ATEX Standards: EN 60079-0:2009; EN 60079-1:2007 IECEx Certified for Ex d IIC T6 Gb IEC Standards: IEC 60079-0:2007; IEC 60079-1:2007 IECEx Certificate of Conformity: IECEx DEK 11.0095X | 316 Stainless Steel | 316 Stainless Steel, Perfluoroelastomer | Gauge | 150 psi | 10 psi | 20° Off Vertical | 180 °F | -30 °F | Up to 1200 psi | 1/2 in | NPT Female | 167 °F | -4 °F | Internal Thumbwheel or Nut | Snap action switch rated 15 A @ 125/250/480 VAC, 1/8 HP @ 125 VAC, 1/4 HP @250 VAC, 1/2 A @ 125 VDC resistive, 1/4 A @ 250 VDC resistive | 15 A @ 125/250/480 Vac, 1/8 hp @ 125 Vac, 1/4 hp @250 Vac, 1/2 A @ 125 Vdc, 1/4 A @ 250 Vdc | SPDT Snap | 3.5 lb | |
SA1112E-A4-K1가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ATEX, CE, CSA, UL | 5 to 150 psi | 3/4 in NPT female Conduit with Screw Terminal block | Hazardous Location Rated, NEMA Type 4X, NEMA Type 7, NEMA Type 9 | Weatherproof and Explosion-proof. Listed with UL and CSA for Class I, Groups B, C and D; Class II Groups E, F, and G. ATEX Compliant 2813 II 2 G Ex d IIC T6 Gb Process Temperature 75°C. Weatherproof UL Rated Type 4. Meets NEMA 4X (IP66). EC-Type Certificate KEMA 04ATEX2186 X ATEX Standards: EN 60079-0:2009; EN 60079-1:2007 IECEx Certified for Ex d IIC T6 Gb IEC Standards: IEC 60079-0:2007; IEC 60079-1:2007 IECEx Certificate of Conformity: IECEx DEK 11.0095X | Aluminum | Aluminum, Buna-N (NBR) | Gauge | 250 psi | 20 psi | 20° Off Vertical | 180 °F | -30 °F | Up to 1200 psi | 1/4 in | NPT Female | 167 °F | -4 °F | Internal Thumbwheel or Nut | Snap action switch rated 15 A @ 125/250/480 VAC, 1/8 HP @ 125 VAC, 1/4 HP @250 VAC, 1/2 A @ 125 VDC resistive, 1/4 A @ 250 VDC resistive | 15 A @ 125/250/480 Vac, 1/8 hp @ 125 Vac, 1/4 hp @250 Vac, 1/2 A @ 125 Vdc, 1/4 A @ 250 Vdc | SPDT Snap | 3.5 lb | |
SA1111E-S5-K1가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ATEX, CE, CSA, UL | 4 to 75 psi | 3/4 in NPT female Conduit with Screw Terminal block | Hazardous Location Rated, NEMA Type 4X, NEMA Type 7, NEMA Type 9 | Weatherproof and Explosion-proof. Listed with UL and CSA for Class I, Groups B, C and D; Class II Groups E, F, and G. ATEX Compliant 2813 II 2 G Ex d IIC T6 Gb Process Temperature 75°C. Weatherproof UL Rated Type 4. Meets NEMA 4X (IP66). EC-Type Certificate KEMA 04ATEX2186 X ATEX Standards: EN 60079-0:2009; EN 60079-1:2007 IECEx Certified for Ex d IIC T6 Gb IEC Standards: IEC 60079-0:2007; IEC 60079-1:2007 IECEx Certificate of Conformity: IECEx DEK 11.0095X | 316 Stainless Steel | 316 Stainless Steel, Perfluoroelastomer | Gauge | 150 psi | 10 psi | 20° Off Vertical | 180 °F | -30 °F | Up to 1200 psi | 1/4 in | NPT Female | 167 °F | -4 °F | Internal Thumbwheel or Nut | Snap action switch rated 15 A @ 125/250/480 VAC, 1/8 HP @ 125 VAC, 1/4 HP @250 VAC, 1/2 A @ 125 VDC resistive, 1/4 A @ 250 VDC resistive | 15 A @ 125/250/480 Vac, 1/8 hp @ 125 Vac, 1/4 hp @250 Vac, 1/2 A @ 125 Vdc, 1/4 A @ 250 Vdc | SPDT Snap | 3.5 lb | |
SA1111E-A4-K1가격 문의10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ATEX, CE, CSA, UL | 4 to 75 psi | 3/4 in NPT female Conduit with Screw Terminal block | Hazardous Location Rated, NEMA Type 4X, NEMA Type 7, NEMA Type 9 | Weatherproof and Explosion-proof. Listed with UL and CSA for Class I, Groups B, C and D; Class II Groups E, F, and G. ATEX Compliant 2813 II 2 G Ex d IIC T6 Gb Process Temperature 75°C. Weatherproof UL Rated Type 4. Meets NEMA 4X (IP66). EC-Type Certificate KEMA 04ATEX2186 X ATEX Standards: EN 60079-0:2009; EN 60079-1:2007 IECEx Certified for Ex d IIC T6 Gb IEC Standards: IEC 60079-0:2007; IEC 60079-1:2007 IECEx Certificate of Conformity: IECEx DEK 11.0095X | Aluminum | Aluminum, Buna-N (NBR) | Gauge | 150 psi | 10 psi | 20° Off Vertical | 180 °F | -30 °F | Up to 1200 psi | 1/4 in | NPT Female | 167 °F | -4 °F | Internal Thumbwheel or Nut | Snap action switch rated 15 A @ 125/250/480 VAC, 1/8 HP @ 125 VAC, 1/4 HP @250 VAC, 1/2 A @ 125 VDC resistive, 1/4 A @ 250 VDC resistive | 15 A @ 125/250/480 Vac, 1/8 hp @ 125 Vac, 1/4 hp @250 Vac, 1/2 A @ 125 Vdc, 1/4 A @ 250 Vdc | SPDT Snap | 3.5 lb |
스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.
