DwyerOmegaSeries-SA1100
SA1111E-S5-K1

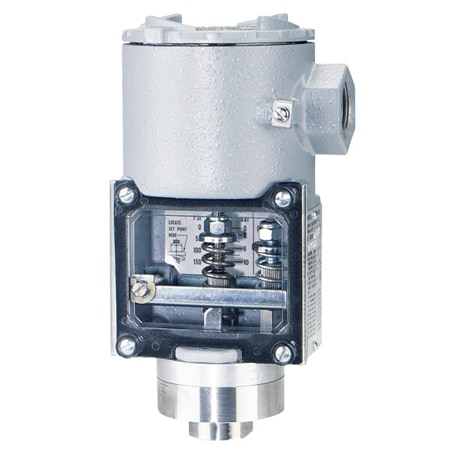

Diaphragm operated pressure switch, adjustable range 10-150 psig, 316SS pressure chamber, fluorocarbon diaphragm and O-ring, SPDT switch, 1/4" NPT female connection
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 9 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:Dwyer a DwyerOmega Brand
Compliance:ATEX, CE, CSA, UL
Deadband:4 to 75 psi
Electrical Connection:3/4 in NPT female Conduit with Screw Terminal block
Enclosure Ratings:Hazardous Location Rated, NEMA Type 4X, NEMA Type 7, NEMA Type 9
Enclosure Ratings Note:Weatherproof and Explosion-proof. Listed with UL and CSA for Class I, Groups B, C and D; Class II Groups E, F, and G. ATEX Compliant 2813 II 2 G Ex d IIC T6 Gb Process Temperature 75°C. Weatherproof UL Rated Type 4. Meets NEMA 4X (IP66). EC-Type Certificate KEMA 04ATEX2186 X ATEX Standards: EN 60079-0:2009; EN 60079-1:2007 IECEx Certified for Ex d IIC T6 Gb IEC Standards: IEC 60079-0:2007; IEC 60079-1:2007 IECEx Certificate of Conformity: IECEx DEK 11.0095X
Material Construction Option:316 Stainless Steel
Materials, Wetted:316 Stainless Steel, Perfluoroelastomer
Measurement Pressure Type:Gauge
Measurement Pressure, Max:150 psi
Measurement Pressure, Min:10 psi
Mounting Orientation:20° Off Vertical
Operating Temperature, Max:180 °F
Operating Temperature, Min:-30 °F
Pressure Limits:Up to 1200 psi
Process Connection Size:1/4 in
Process Connection Type:NPT Female
Process Temperature, Max:167 °F
Process Temperature, Min:-4 °F
Set Point Adjustment:Internal Thumbwheel or Nut
Switch Note:Snap action switch rated 15 A @ 125/250/480 VAC, 1/8 HP @ 125 VAC, 1/4 HP @250 VAC, 1/2 A @ 125 VDC resistive, 1/4 A @ 250 VDC resistive
Switch Rating:15 A @ 125/250/480 Vac, 1/8 hp @ 125 Vac, 1/4 hp @250 Vac, 1/2 A @ 125 Vdc, 1/4 A @ 250 Vdc
Switch Type:SPDT Snap
Weight:3.5 lb
