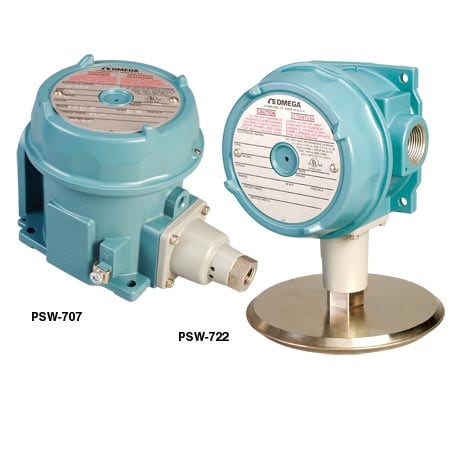

고온용 중형 산업용 NEMA-9 압력 스위치
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 8개의 상품
| 제품 번호 / 가격 | Brand | Approvals | Control Output | Deadband | Deadband Type | Dial Graduation | Electrical Connection | Enclosure Ratings | Height | Length | Materials | Measurement Pressure Type | Measurement Pressure, Max | Measurement Pressure, Min | Operating Temperature, Max | Operating Temperature, Min | Process Connection Size | Process Connection Type | Process Temperature, Max | Process Temperature, Min | Proof Pressure | Repeatability | Sensor Type | Shock | Switch | Switch Type | Vibration | Weight | Width | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PSW-7351,397,300 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | UL listed; Class I, Division 1 and 2, Groups B, C and D; Class II, Groups E, F and G; Class III | SPDT Relay | 5 to 150 psi | Fixed | Blind | Screw Terminal | IP66, NEMA Type 4X | 9 in | 4.3 in | 316L Stainless Steel, Aluminum, Epoxy, Stainless Steel | Gauge | 1700 psi | 80 psi | 71 °C | -50 °C | 1/2 in | NPT Female | 204 °C | -57 °C | Up to 2500 psi | ± 1% | Diaphragm | Setpoint repeats after 15 g, 10 ms duration | Single | SPDT NO/NC, Selectable | Setpoint repeats after 2.5 g, 5 to 500 Hz | 4 lb | 4.9 in | |
PSW-7321,352,130 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | UL listed; Class I, Division 1 and 2, Groups B, C and D; Class II, Groups E, F and G; Class III | SPDT Relay | 1 to 15 psi | Fixed | Blind | Screw Terminal | IP66, NEMA Type 4X | 9 in | 4.3 in | 316L Stainless Steel, Aluminum, Epoxy, Stainless Steel | Gauge | 100 psi | 10 psi | 71 °C | -50 °C | 1/2 in | NPT Female | 204 °C | -57 °C | Up to 2500 psi | ± 1% | Diaphragm | Setpoint repeats after 15 g, 10 ms duration | Single | SPDT NO/NC, Selectable | Setpoint repeats after 2.5 g, 5 to 500 Hz | 4 lb | 4.9 in | |
PSW-7341,440,310 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | UL listed; Class I, Division 1 and 2, Groups B, C and D; Class II, Groups E, F and G; Class III | SPDT Relay | 4 to 45 psi | Fixed | Blind | Screw Terminal | IP66, NEMA Type 4X | 9 in | 4.3 in | 316L Stainless Steel, Aluminum, Epoxy, Stainless Steel | Gauge | 500 psi | 20 psi | 71 °C | -50 °C | 1/2 in | NPT Female | 204 °C | -57 °C | Up to 2500 psi | ± 1% | Diaphragm | Setpoint repeats after 15 g, 10 ms duration | Single | SPDT NO/NC, Selectable | Setpoint repeats after 2.5 g, 5 to 500 Hz | 4 lb | 4.9 in | |
PSW-7262,896,990 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | UL listed; Class I, Division 1 and 2, Groups B, C and D; Class II, Groups E, F and G; Class III | SPDT Relay | 0.1 to 10 inH2O | Fixed | Blind | Screw Terminal | IP66, NEMA Type 4X | - | 6 in | 316L Stainless Steel, Aluminum, Epoxy, Stainless Steel | Gauge | 250 inH₂O | 10 inH₂O | 71 °C | -50 °C | 1/2 in | NPT Female | 204 °C | -57 °C | Up to 100 psi | ± 1% | Diaphragm | Setpoint repeats after 15 g, 10 ms duration | Single | SPDT NO/NC, Selectable | Setpoint repeats after 2.5 g, 5 to 500 Hz | 4 lb | 6 in | |
PSW-7252,766,220 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | UL listed; Class I, Division 1 and 2, Groups B, C and D; Class II, Groups E, F and G; Class III | SPDT Relay | 0.1 to 0.8 inH2O | Fixed | Blind | Screw Terminal | IP66, NEMA Type 4X | - | 6 in | 316L Stainless Steel, Aluminum, Epoxy, Stainless Steel | Gauge | 50 inH₂O | 2.5 inH₂O | 71 °C | -50 °C | 1/2 in | NPT Female | 204 °C | -57 °C | Up to 100 psi | ± 1% | Diaphragm | Setpoint repeats after 15 g, 10 ms duration | Single | SPDT NO/NC, Selectable | Setpoint repeats after 2.5 g, 5 to 500 Hz | 4 lb | 6 in | |
PSW-7232,865,960 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | UL listed; Class I, Division 1 and 2, Groups B, C and D; Class II, Groups E, F and G; Class III | SPDT Relay | 0.1 to 3 inH2O | Fixed | Blind | Screw Terminal | IP66, NEMA Type 4X | - | 6 in | 316L Stainless Steel, Aluminum, Epoxy, Stainless Steel | Compound Gauge | 50 inH₂O | -50 inH₂O | 71 °C | -50 °C | 1/2 in | NPT Female | 204 °C | -57 °C | Up to 100 psi | ± 1% | Diaphragm | Setpoint repeats after 15 g, 10 ms duration | Single | SPDT NO/NC, Selectable | Setpoint repeats after 2.5 g, 5 to 500 Hz | 4 lb | 6 in | |
PSW-7043,153,720 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | UL listed; Class I, Division 1 and 2, Groups B, C and D; Class II, Groups E, F and G; Class III | SPDT Relay | 0.2 to 0.8 psi | Adjustable | 2 PSI | Screw Terminal | IP66, NEMA Type 4X | 9 in | 4.3 in | 316 Stainless Steel, Aluminum, Epoxy, Stainless Steel | Gauge | 100 psi | 0 psi | 71 °C | -18 °C | 1/2 in | NPT Female | 204 °C | -57 °C | Up to 125 psi | ± 1% | Bellows | Setpoint repeats after 15 g, 10 ms duration | Dual | SPDT NO/NC, Selectable | Setpoint repeats after 2.5 g, 5 to 500 Hz | 4 lb | 4.9 in | |
PSW-7082,786,190 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | UL listed; Class I, Division 1 and 2, Groups B, C and D; Class II, Groups E, F and G; Class III | SPDT Relay | 0.2 to 1.2 inHg | Adjustable | 1 inHg, 0.5 PSI | Screw Terminal | IP66, NEMA Type 4X | 9 in | 4.3 in | 316 Stainless Steel, Aluminum, Epoxy, Stainless Steel | Compound Gauge | 20 psi | -15 psi | 71 °C | -50 °C | 1/2 in | NPT Female | 204 °C | -57 °C | Up to 25 psi | ± 1% | Bellows | Setpoint repeats after 15 g, 10 ms duration | Dual | SPDT NO/NC, Selectable | Setpoint repeats after 2.5 g, 5 to 500 Hz | 4 lb | 4.9 in |
스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.
