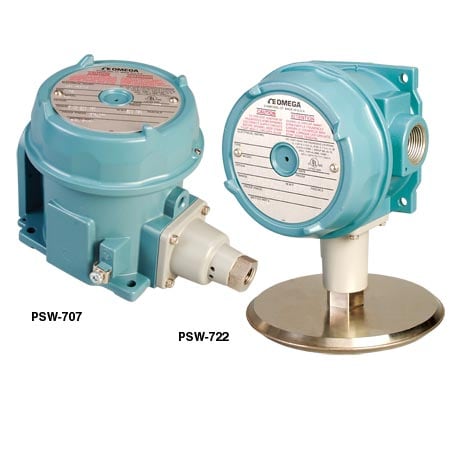

DwyerOmegaPSW-700
PSW-725
2.5 to 50 inH2O, fixed deadband
- 가격
- 2,766,220 원
- VAT 10%
- 276,622 원
- 총 금액
- 3,042,842 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 7 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Approvals:UL listed; Class I, Division 1 and 2, Groups B, C and D; Class II, Groups E, F and G; Class III
Control Output:SPDT Relay
Deadband:0.1 to 0.8 inH2O
Deadband Type:Fixed
Dial Graduation:Blind
Electrical Connection:Screw Terminal
Enclosure Ratings:IP66, NEMA Type 4X
Length:6 in
Materials:316L Stainless Steel, Aluminum, Epoxy, Stainless Steel
Measurement Pressure Type:Gauge
Measurement Pressure, Max:50 inH₂O
Measurement Pressure, Min:2.5 inH₂O
Operating Temperature, Max:71 °C
Operating Temperature, Min:-50 °C
Process Connection Size:1/2 in
Process Connection Type:NPT Female
Process Temperature, Max:204 °C
Process Temperature, Min:-57 °C
Proof Pressure:Up to 100 psi
Repeatability:± 1%
Sensor Type:Diaphragm
Shock:Setpoint repeats after 15 g, 10 ms duration
Switch:Single
Switch Type:SPDT NO/NC, Selectable
Vibration:Setpoint repeats after 2.5 g, 5 to 500 Hz
Weight:4 lb
Width:6 in
