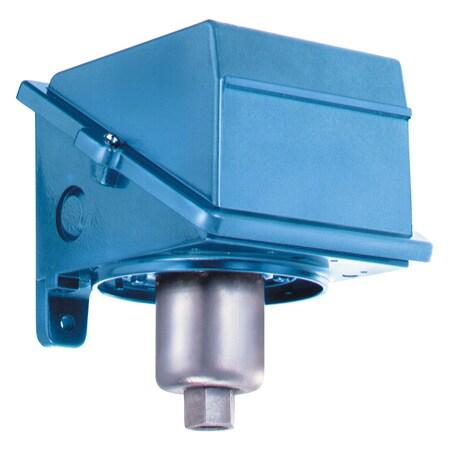

2출력 일반용 산업 압력 스위치
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 4개의 상품
| 제품 번호 / 가격 | Brand | Approvals | Control Output | Deadband Type | Electrical Connection | Enclosure Ratings | Height | Length | Materials | Materials, Wetted | Measurement Pressure Type | Measurement Pressure, Max | Measurement Pressure, Min | Operating Temperature Note | Operating Temperature, Max | Operating Temperature, Min | Process Connection Size | Process Connection Type | Proof Pressure | Sensor Type | Setpoint Repeatability | Setpoint Repeatability Note | Shock | Storage Temperature, Max | Storage Temperature, Min | Switch | Switch Note | Switch Type | Vibration | Weight | Weight Note | Width | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PSW-852CH1,323,340 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | UL, CE compliant | SPDT Relay | Fixed | Screw Terminal | NEMA Type 1 | 4 in | 5.5 in | Aluminum, Epoxy, Brass | Brass | Compound Gauge | 20 psi | -15 psi | -40 to 70°C (-40 to 160°F), except model PSW-852A: -40 to 70°C (0 to 160°F); set point typically shifts less than 1% of range for a 30°C (54°F) ambient temperature change | 70 °C | -40 °C | 1/4 in | NPT Female | Up to 25 psi | Bellows | ± 2% | ± 2% of adjustable range, except model PSW-852E: ± 3% of adjustable range | Setpoint repeats after 15 g, 10 ms duration | 71 °C | -54 °C | Dual | 2 or 3 SPDT; switches can be separated up to 100%, except models PSW-852A and PSW-852B: 30%; switches can be wired “normally open” or “normally closed”. | SPDT NO/NC, Selectable | Setpoint repeats after 2.5 g, 5 to 500 Hz | 7.5 lb | Approx. 1.4 to 3.4 kg (3 to 7.5 lb) (varies with model) | 4.9 in | |
PSW-852CJ1,423,830 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | UL, CE compliant | SPDT Relay | Fixed | Screw Terminal | NEMA Type 1 | 4 in | 5.5 in | Aluminum, Epoxy, Brass | Brass | Gauge | 30 psi | 0 psi | -40 to 70°C (-40 to 160°F), except model PSW-852A: -40 to 70°C (0 to 160°F); set point typically shifts less than 1% of range for a 30°C (54°F) ambient temperature change | 70 °C | -40 °C | 1/4 in | NPT Female | Up to 40 psi | Bellows | ± 2% | ± 2% of adjustable range, except model PSW-852E: ± 3% of adjustable range | Setpoint repeats after 15 g, 10 ms duration | 71 °C | -54 °C | Dual | 2 or 3 SPDT; switches can be separated up to 100%, except models PSW-852A and PSW-852B: 30%; switches can be wired “normally open” or “normally closed”. | SPDT NO/NC, Selectable | Setpoint repeats after 2.5 g, 5 to 500 Hz | 7.5 lb | Approx. 1.4 to 3.4 kg (3 to 7.5 lb) (varies with model) | 4.9 in | |
PSW-852CG1,423,830 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | UL, CE compliant | SPDT Relay | Fixed | Screw Terminal | NEMA Type 1 | 4 in | 5.5 in | Aluminum, Epoxy, Brass | Brass | Gauge | 80 inH₂O | 0 psi, 0 inH₂O | -40 to 70°C (-40 to 160°F), except model PSW-852A: -40 to 70°C (0 to 160°F); set point typically shifts less than 1% of range for a 30°C (54°F) ambient temperature change | 70 °C | -40 °C | 1/4 in | NPT Female | Up to 5 psi | Bellows | ± 2% | ± 2% of adjustable range, except model PSW-852E: ± 3% of adjustable range | Setpoint repeats after 15 g, 10 ms duration | 71 °C | -54 °C | Dual | 2 or 3 SPDT; switches can be separated up to 100%, except models PSW-852A and PSW-852B: 30%; switches can be wired “normally open” or “normally closed”. | SPDT NO/NC, Selectable | Setpoint repeats after 2.5 g, 5 to 500 Hz | 7.5 lb | Approx. 1.4 to 3.4 kg (3 to 7.5 lb) (varies with model) | 4.9 in | |
PSW-852BK1,520,770 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | UL, CE compliant | SPDT Relay | Fixed | Screw Terminal | NEMA Type 1 | 4 in | 5.5 in | 316 Stainless Steel, Aluminum, Epoxy, Stainless Steel | 316 Stainless Steel | Gauge | 50 psi | 0 psi | -40 to 70°C (-40 to 160°F), except model PSW-852A: -40 to 70°C (0 to 160°F); set point typically shifts less than 1% of range for a 30°C (54°F) ambient temperature change | 70 °C | -40 °C | 1/4 in | NPT Female | Up to 225 psi | Diaphragm | ± 2% | ± 2% of adjustable range, except model PSW-852E: ± 3% of adjustable range | Setpoint repeats after 15 g, 10 ms duration | 71 °C | -54 °C | Dual | 2 or 3 SPDT; switches can be separated up to 100%, except models PSW-852A and PSW-852B: 30%; switches can be wired “normally open” or “normally closed”. | SPDT NO/NC, Selectable | Setpoint repeats after 2.5 g, 5 to 500 Hz | 7.5 lb | Approx. 1.4 to 3.4 kg (3 to 7.5 lb) (varies with model) | 4.9 in |
스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.
