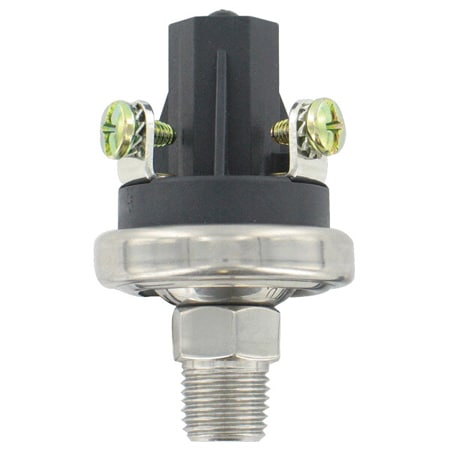

Series-A6 | Britestone

산업용 측정 장비 · 제어 부품 · 글로벌 브랜드 통합 쇼핑몰

로딩 중...

산업용 측정 장비 · 제어 부품 · 글로벌 브랜드 통합 쇼핑몰

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 15개의 상품

제품 번호 / 가격	Brand	Burst Pressure	Decreasing Pressure, Max	Decreasing Pressure, Min	Electrical Connection	Enclosure Ratings	Increasing Pressure, Max	Increasing Pressure, Min	Material Construction Option	Materials, Wetted	Measurement Pressure Type	Media Compatibility	Mounting Orientation	Operating Temperature, Max	Operating Temperature, Min	Pressure Limits	Process Connection Size	Process Connection Type	Proof Pressure	Repeatability	Repeatability Note	Set Point Adjustment	Set Point Tolerance	Switch Note	Switch Rating	Switch Type	Weight	수량 / 장바구니
A6-853221가격 문의20 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	750 psi Maximum	150 psi	0.5 psi	Screw Terminal	IP65	198.3 psi	1.1 psi	304 Stainless Steel	Brass, Steel	Gauge	Hydraulic Oil, Light Oil, Oil	Not Position Sensitive	248 °F	-40 °F	Up to 250 psi	1/4 in	NPT Male	Up to 500 psi	± 10%	± 10% of set point	Internal Screw	± 15% of range	1 SPST NO, 1 SPST NC. NO and NC switch independent from each other. Resistive: 15 A @ 6 VDC, 8 A @ 12 VDC, 4 A @ 24 VDC; Inductive: 1 A @ 120 VAC, 0.5 A @ 240 VAC	15 A @ 6 Vdc, 8 A @ 12 Vdc, 4 A @ 24 Vdc; 1 A @ 120 Vac, 0.5 A @ 240 Vac	SPST NO/NC	0.13 lb
A6-851221가격 문의23 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	750 psi Maximum	150 psi	0.5 psi	Screw Terminal	IP65	198.3 psi	1.1 psi	Brass	Brass, Steel	Gauge	Hydraulic Oil, Light Oil, Oil	Not Position Sensitive	248 °F	-40 °F	Up to 250 psi	1/4 in	NPT Male	Up to 500 psi	± 10%	± 10% of set point	Internal Screw	± 15% of range	1 SPST NO, 1 SPST NC. NO and NC switch independent from each other. Resistive: 15 A @ 6 VDC, 8 A @ 12 VDC, 4 A @ 24 VDC; Inductive: 1 A @ 120 VAC, 0.5 A @ 240 VAC	15 A @ 6 Vdc, 8 A @ 12 Vdc, 4 A @ 24 Vdc; 1 A @ 120 Vac, 0.5 A @ 240 Vac	SPST NO/NC	0.13 lb
A6-753221가격 문의21 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	750 psi Maximum	90 psi	0.5 psi	Screw Terminal	IP65	112.3 psi	1.1 psi	304 Stainless Steel	Brass, Steel	Gauge	Hydraulic Oil, Light Oil, Oil	Not Position Sensitive	248 °F	-40 °F	Up to 250 psi	1/4 in	NPT Male	Up to 500 psi	± 10%	± 10% of set point	Internal Screw	± 15% of range	1 SPST NO, 1 SPST NC. NO and NC switch independent from each other. Resistive: 15 A @ 6 VDC, 8 A @ 12 VDC, 4 A @ 24 VDC; Inductive: 1 A @ 120 VAC, 0.5 A @ 240 VAC	15 A @ 6 Vdc, 8 A @ 12 Vdc, 4 A @ 24 Vdc; 1 A @ 120 Vac, 0.5 A @ 240 Vac	SPST NO/NC	0.13 lb
A6-751221가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	750 psi Maximum	90 psi	0.5 psi	Screw Terminal	IP65	112.3 psi	1.1 psi	Brass	Brass, Steel	Gauge	Hydraulic Oil, Light Oil, Oil	Not Position Sensitive	248 °F	-40 °F	Up to 250 psi	1/4 in	NPT Male	Up to 500 psi	± 10%	± 10% of set point	Internal Screw	± 15% of range	1 SPST NO, 1 SPST NC. NO and NC switch independent from each other. Resistive: 15 A @ 6 VDC, 8 A @ 12 VDC, 4 A @ 24 VDC; Inductive: 1 A @ 120 VAC, 0.5 A @ 240 VAC	15 A @ 6 Vdc, 8 A @ 12 Vdc, 4 A @ 24 Vdc; 1 A @ 120 Vac, 0.5 A @ 240 Vac	SPST NO/NC	0.13 lb
A6-651221가격 문의22 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	750 psi Maximum	50 psi	0.5 psi	Screw Terminal	IP65	61 psi	1.1 psi	Brass	Brass, Steel	Gauge	Hydraulic Oil, Light Oil, Oil	Not Position Sensitive	248 °F	-40 °F	Up to 250 psi	1/4 in	NPT Male	Up to 500 psi	± 10%	± 10% of set point	Internal Screw	± 15% of range	1 SPST NO, 1 SPST NC. NO and NC switch independent from each other. Resistive: 15 A @ 6 VDC, 8 A @ 12 VDC, 4 A @ 24 VDC; Inductive: 1 A @ 120 VAC, 0.5 A @ 240 VAC	15 A @ 6 Vdc, 8 A @ 12 Vdc, 4 A @ 24 Vdc; 1 A @ 120 Vac, 0.5 A @ 240 Vac	SPST NO/NC	0.13 lb
A6-653221가격 문의24 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	750 psi Maximum	50 psi	0.5 psi	Screw Terminal	IP65	61 psi	1.1 psi	304 Stainless Steel	Brass, Steel	Gauge	Hydraulic Oil, Light Oil, Oil	Not Position Sensitive	248 °F	-40 °F	Up to 250 psi	1/4 in	NPT Male	Up to 500 psi	± 10%	± 10% of set point	Internal Screw	± 15% of range	1 SPST NO, 1 SPST NC. NO and NC switch independent from each other. Resistive: 15 A @ 6 VDC, 8 A @ 12 VDC, 4 A @ 24 VDC; Inductive: 1 A @ 120 VAC, 0.5 A @ 240 VAC	15 A @ 6 Vdc, 8 A @ 12 Vdc, 4 A @ 24 Vdc; 1 A @ 120 Vac, 0.5 A @ 240 Vac	SPST NO/NC	0.13 lb
A6-553221가격 문의16 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	750 psi Maximum	24 psi	0.5 psi	Screw Terminal	IP65	31.8 psi	1.1 psi	304 Stainless Steel	Brass, Steel	Gauge	Hydraulic Oil, Light Oil, Oil	Not Position Sensitive	248 °F	-40 °F	Up to 150 psi	1/4 in	NPT Male	Up to 500 psi	± 10%	± 10% of set point	Internal Screw	± 15% of range	1 SPST NO, 1 SPST NC. NO and NC switch independent from each other. Resistive: 15 A @ 6 VDC, 8 A @ 12 VDC, 4 A @ 24 VDC; Inductive: 1 A @ 120 VAC, 0.5 A @ 240 VAC	15 A @ 6 Vdc, 8 A @ 12 Vdc, 4 A @ 24 Vdc; 1 A @ 120 Vac, 0.5 A @ 240 Vac	SPST NO/NC	0.13 lb
A6-551221가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	750 psi Maximum	24 psi	0.5 psi	Screw Terminal	IP65	31.8 psi	1.1 psi	Brass	Brass, Steel	Gauge	Hydraulic Oil, Light Oil, Oil	Not Position Sensitive	248 °F	-40 °F	Up to 150 psi	1/4 in	NPT Male	Up to 500 psi	± 10%	± 10% of set point	Internal Screw	± 15% of range	1 SPST NO, 1 SPST NC. NO and NC switch independent from each other. Resistive: 15 A @ 6 VDC, 8 A @ 12 VDC, 4 A @ 24 VDC; Inductive: 1 A @ 120 VAC, 0.5 A @ 240 VAC	15 A @ 6 Vdc, 8 A @ 12 Vdc, 4 A @ 24 Vdc; 1 A @ 120 Vac, 0.5 A @ 240 Vac	SPST NO/NC	0.13 lb
A6-451221가격 문의27 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	750 psi Maximum	13 psi	0.5 psi	Screw Terminal	IP65	17.5 psi	1.1 psi	Brass	Brass, Steel	Gauge	Hydraulic Oil, Light Oil, Oil	Not Position Sensitive	248 °F	-40 °F	Up to 150 psi	1/4 in	NPT Male	Up to 500 psi	± 10%	± 10% of set point	Internal Screw	± 15% of range	1 SPST NO, 1 SPST NC. NO and NC switch independent from each other. Resistive: 15 A @ 6 VDC, 8 A @ 12 VDC, 4 A @ 24 VDC; Inductive: 1 A @ 120 VAC, 0.5 A @ 240 VAC	15 A @ 6 Vdc, 8 A @ 12 Vdc, 4 A @ 24 Vdc; 1 A @ 120 Vac, 0.5 A @ 240 Vac	SPST NO/NC	0.13 lb
A6-453221가격 문의24 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	750 psi Maximum	13 psi	0.5 psi	Screw Terminal	IP65	17.5 psi	1.1 psi	304 Stainless Steel	Brass, Steel	Gauge	Hydraulic Oil, Light Oil, Oil	Not Position Sensitive	248 °F	-40 °F	Up to 150 psi	1/4 in	NPT Male	Up to 500 psi	± 10%	± 10% of set point	Internal Screw	± 15% of range	1 SPST NO, 1 SPST NC. NO and NC switch independent from each other. Resistive: 15 A @ 6 VDC, 8 A @ 12 VDC, 4 A @ 24 VDC; Inductive: 1 A @ 120 VAC, 0.5 A @ 240 VAC	15 A @ 6 Vdc, 8 A @ 12 Vdc, 4 A @ 24 Vdc; 1 A @ 120 Vac, 0.5 A @ 240 Vac	SPST NO/NC	0.13 lb
A6-253221가격 문의22 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	750 psi Maximum	3 psi	0.5 psi	Screw Terminal	IP65	6.05 psi	1.1 psi	304 Stainless Steel	Brass, Steel	Gauge	Hydraulic Oil, Light Oil, Oil	Not Position Sensitive	248 °F	-40 °F	Up to 150 psi	1/4 in	NPT Male	Up to 500 psi	± 10%	± 10% of set point	Internal Screw	± 15% of range	1 SPST NO, 1 SPST NC. NO and NC switch independent from each other. Resistive: 15 A @ 6 VDC, 8 A @ 12 VDC, 4 A @ 24 VDC; Inductive: 1 A @ 120 VAC, 0.5 A @ 240 VAC	15 A @ 6 Vdc, 8 A @ 12 Vdc, 4 A @ 24 Vdc; 1 A @ 120 Vac, 0.5 A @ 240 Vac	SPST NO/NC	0.13 lb
A6-251221가격 문의18 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	750 psi Maximum	3 psi	0.5 psi	Screw Terminal	IP65	6.05 psi	1.1 psi	Brass	Brass, Steel	Gauge	Hydraulic Oil, Light Oil, Oil	Not Position Sensitive	248 °F	-40 °F	Up to 150 psi	1/4 in	NPT Male	Up to 500 psi	± 10%	± 10% of set point	Internal Screw	± 15% of range	1 SPST NO, 1 SPST NC. NO and NC switch independent from each other. Resistive: 15 A @ 6 VDC, 8 A @ 12 VDC, 4 A @ 24 VDC; Inductive: 1 A @ 120 VAC, 0.5 A @ 240 VAC	15 A @ 6 Vdc, 8 A @ 12 Vdc, 4 A @ 24 Vdc; 1 A @ 120 Vac, 0.5 A @ 240 Vac	SPST NO/NC	0.13 lb
A6-153221가격 문의25 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	750 psi Maximum	1 psi	0.5 psi	Screw Terminal	IP65	3.1 psi	1.1 psi	304 Stainless Steel	Brass, Steel	Gauge	Hydraulic Oil, Light Oil, Oil	Not Position Sensitive	248 °F	-40 °F	Up to 150 psi	1/4 in	NPT Male	Up to 500 psi	± 10%	± 10% of set point	Internal Screw	± 15% of range	1 SPST NO, 1 SPST NC. NO and NC switch independent from each other. Resistive: 15 A @ 6 VDC, 8 A @ 12 VDC, 4 A @ 24 VDC; Inductive: 1 A @ 120 VAC, 0.5 A @ 240 VAC	15 A @ 6 Vdc, 8 A @ 12 Vdc, 4 A @ 24 Vdc; 1 A @ 120 Vac, 0.5 A @ 240 Vac	SPST NO/NC	0.13 lb
A6-353221가격 문의22 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	750 psi Maximum	7 psi	0.5 psi	Screw Terminal	IP65	10.75 psi	1.1 psi	304 Stainless Steel	Brass, Steel	Gauge	Hydraulic Oil, Light Oil, Oil	Not Position Sensitive	248 °F	-40 °F	Up to 150 psi	1/4 in	NPT Male	Up to 500 psi	± 10%	± 10% of set point	Internal Screw	± 15% of range	1 SPST NO, 1 SPST NC. NO and NC switch independent from each other. Resistive: 15 A @ 6 VDC, 8 A @ 12 VDC, 4 A @ 24 VDC; Inductive: 1 A @ 120 VAC, 0.5 A @ 240 VAC	15 A @ 6 Vdc, 8 A @ 12 Vdc, 4 A @ 24 Vdc; 1 A @ 120 Vac, 0.5 A @ 240 Vac	SPST NO/NC	0.13 lb
A6-151221가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	750 psi Maximum	1 psi	0.5 psi	Screw Terminal	IP65	3.1 psi	1.1 psi	Brass	Brass, Steel	Gauge	Hydraulic Oil, Light Oil, Oil	Not Position Sensitive	248 °F	-40 °F	Up to 150 psi	1/4 in	NPT Male	Up to 500 psi	± 10%	± 10% of set point	Internal Screw	± 15% of range	1 SPST NO, 1 SPST NC. NO and NC switch independent from each other. Resistive: 15 A @ 6 VDC, 8 A @ 12 VDC, 4 A @ 24 VDC; Inductive: 1 A @ 120 VAC, 0.5 A @ 240 VAC	15 A @ 6 Vdc, 8 A @ 12 Vdc, 4 A @ 24 Vdc; 1 A @ 120 Vac, 0.5 A @ 240 Vac	SPST NO/NC	0.13 lb
