DwyerOmegaSeries-A6

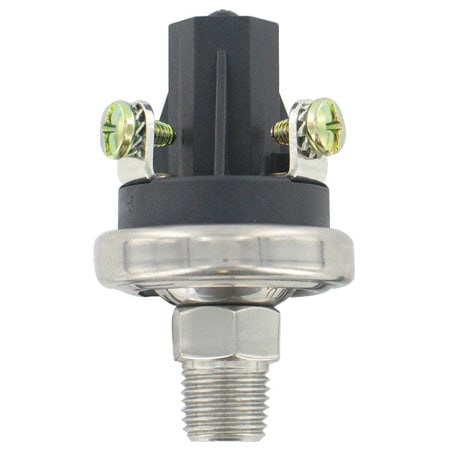

A6-453221
Pressure switch, set point range 8-13 ± 2 psi (0.55-0.90 ± 0.18 bar).
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 24 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:Dwyer a DwyerOmega Brand
Burst Pressure:750 psi Maximum
Decreasing Pressure, Max:13 psi
Decreasing Pressure, Min:0.5 psi
Electrical Connection:Screw Terminal
Enclosure Ratings:IP65
Increasing Pressure, Max:17.5 psi
Increasing Pressure, Min:1.1 psi
Material Construction Option:304 Stainless Steel
Materials, Wetted:Brass, Steel
Measurement Pressure Type:Gauge
Media Compatibility:Hydraulic Oil, Light Oil, Oil
Mounting Orientation:Not Position Sensitive
Operating Temperature, Max:248 °F
Operating Temperature, Min:-40 °F
Pressure Limits:Up to 150 psi
Process Connection Size:1/4 in
Process Connection Type:NPT Male
Proof Pressure:Up to 500 psi
Repeatability:± 10%
Repeatability Note:± 10% of set point
Set Point Adjustment:Internal Screw
Set Point Tolerance:± 15% of range
Switch Note:1 SPST NO, 1 SPST NC. NO and NC switch independent from each other. Resistive: 15 A @ 6 VDC, 8 A @ 12 VDC, 4 A @ 24 VDC; Inductive: 1 A @ 120 VAC, 0.5 A @ 240 VAC
Switch Rating:15 A @ 6 Vdc, 8 A @ 12 Vdc, 4 A @ 24 Vdc; 1 A @ 120 Vac, 0.5 A @ 240 Vac
Switch Type:SPST NO/NC
Weight:0.13 lb
