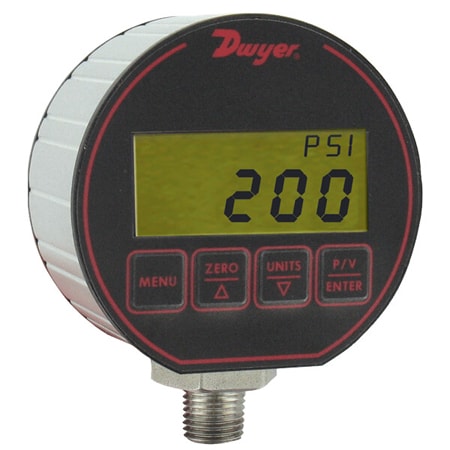

디지털 압력 게이지, ±0.25% 정확도, NEMA 4X, 4자리 디스플레이, 2개의 알람
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 12개의 상품
| 제품 번호 / 가격 | Brand | Accuracy | Accuracy Detail | Dial Depth | Dial Dia | Display Note | Display Type | Electrical Connection | Enclosure Ratings | Loop Resistance | Materials | Materials, Wetted | Measurement Pressure Type | Measurement Pressure, Max | Measurement Pressure, Min | Media Compatibility | Mounting Orientation | Number of Digits | Operating Temperature, Max | Operating Temperature, Min | Output Detail | Output Signal | Power Consumption | Process Connection Size | Process Connection Type | Proof Pressure | Set Point Adjustment | Set Point Differential/Hysteresis | Supply Power Note | Supply Power Type | Supply Voltage | Switch Note | Switch Rating | Switch Type | Thermal Effect | Weight | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
DPG-211가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.25 % | 0.25% FS ± 1 least significant digit (includes linearity, hysteresis, repeatability) | 1.9 in | 3 in | 4-digit (.425˝ H x .234˝ W digits) | LCD | Cable | IP66, NEMA Type 4X | 600 Ω | Aluminum, Polycarbonate, NBR, 316L Stainless Steel | 316L Stainless Steel | Gauge | 5000 psi | 0 psi | Alcohols, Argon, Compatible Gases, Compatible Liquids, Nitrogen, Oils, Water | None | 4 | 158 °F | 32 °F | 4 to 20 mA | Current | 0.8 W | 1/4 in | NPT Male | Up to 7500 psi | Menu Configurable | 1 Least Significant Digit | 2-24 VAC ± 20% 50 to 400 Hz, 12-24 VDC ± 20% | AC/DC | 12 to 24 Vac/Vdc | 2 SPDT form C contacts, 0.5 A @ 125 VAC resistive, 1 A @ 24 VDC | 0.5 A @ 125 Vac, 1 A @ 24 Vdc | (2) SPDT | 0.026%/°F @ 0 to 70°F, 0.016%/°F @ 70 to 158°F | 8.84 oz | |
DPG-220가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.25 % | 0.25% FS ± 1 least significant digit (includes linearity, hysteresis, repeatability) | 1.9 in | 3 in | 4 digit (.425˝ H x .234˝ W digits) | LCD | Cable | IP66, NEMA Type 4X | 600 Ω | Aluminum, Polycarbonate, NBR, 316L Stainless Steel | 316L Stainless Steel | Compound Gauge | 15 psi | -14.7 psi | Alcohols, Argon, Compatible Gases, Compatible Liquids, Nitrogen, Oils, Water | None | 4 | 158 °F | 32 °F | 4 to 20 mA | Current | 0.8 W | 1/4 in | NPT Male | Up to 30 psi | Menu Configurable | 1 Least Significant Digit | 2-24 VAC ± 20% 50 to 400 Hz, 12-24 VDC ± 20% | AC/DC | 12 to 24 Vac/Vdc | 2 SPDT form C contacts, 0.5 A @ 125 VAC resistive, 1 A @ 24 VDC | 0.5 A @ 125 Vac, 1 A @ 24 Vdc | (2) SPDT | 0.026%/°F @ 0 to 70°F, 0.016%/°F @ 70 to 158°F | 8.84 oz | |
DPG-210가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.25 % | 0.25% FS ± 1 least significant digit (includes linearity, hysteresis, repeatability) | 1.9 in | 3 in | 4-digit (.425˝ H x .234˝ W digits) | LCD | Cable | IP66, NEMA Type 4X | 600 Ω | Aluminum, Polycarbonate, NBR, 316L Stainless Steel | 316L Stainless Steel | Gauge | 3000 psi | 0 psi | Alcohols, Argon, Compatible Gases, Compatible Liquids, Nitrogen, Oils, Water | None | 4 | 158 °F | 32 °F | 4 to 20 mA | Current | 0.8 W | 1/4 in | NPT Male | Up to 5000 psi | Menu Configurable | 1 Least Significant Digit | 2-24 VAC ± 20% 50 to 400 Hz, 12-24 VDC ± 20% | AC/DC | 12 to 24 Vac/Vdc | 2 SPDT form C contacts, 0.5 A @ 125 VAC resistive, 1 A @ 24 VDC | 0.5 A @ 125 Vac, 1 A @ 24 Vdc | (2) SPDT | 0.026%/°F @ 0 to 70°F, 0.016%/°F @ 70 to 158°F | 8.84 oz | |
DPG-208가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.25 % | 0.25% FS ± 1 least significant digit (includes linearity, hysteresis, repeatability) | 1.9 in | 3 in | 4-digit (.425˝ H x .234˝ W digits) | LCD | Cable | IP66, NEMA Type 4X | 600 Ω | Aluminum, Polycarbonate, NBR, 316L Stainless Steel | 316L Stainless Steel | Gauge | 500 psi | 0 psi | Alcohols, Argon, Compatible Gases, Compatible Liquids, Nitrogen, Oils, Water | None | 4 | 158 °F | 32 °F | 4 to 20 mA | Current | 0.8 W | 1/4 in | NPT Male | Up to 1000 psi | Menu Configurable | 1 Least Significant Digit | 2-24 VAC ± 20% 50 to 400 Hz, 12-24 VDC ± 20% | AC/DC | 12 to 24 Vac/Vdc | 2 SPDT form C contacts, 0.5 A @ 125 VAC resistive, 1 A @ 24 VDC | 0.5 A @ 125 Vac, 1 A @ 24 Vdc | (2) SPDT | 0.026%/°F @ 0 to 70°F, 0.016%/°F @ 70 to 158°F | 8.84 oz | |
DPG-209가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.25 % | 0.25% FS ± 1 least significant digit (includes linearity, hysteresis, repeatability) | 1.9 in | 3 in | 4-digit (.425˝ H x .234˝ W digits) | LCD | Cable | IP66, NEMA Type 4X | 600 Ω | Aluminum, Polycarbonate, NBR, 316L Stainless Steel | 316L Stainless Steel | Gauge | 1000 psi | 0 psi | Alcohols, Argon, Compatible Gases, Compatible Liquids, Nitrogen, Oils, Water | None | 4 | 158 °F | 32 °F | 4 to 20 mA | Current | 0.8 W | 1/4 in | NPT Male | Up to 2000 psi | Menu Configurable | 1 Least Significant Digit | 2-24 VAC ± 20% 50 to 400 Hz, 12-24 VDC ± 20% | AC/DC | 12 to 24 Vac/Vdc | 2 SPDT form C contacts, 0.5 A @ 125 VAC resistive, 1 A @ 24 VDC | 0.5 A @ 125 Vac, 1 A @ 24 Vdc | (2) SPDT | 0.026%/°F @ 0 to 70°F, 0.016%/°F @ 70 to 158°F | 8.84 oz | |
DPG-207가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.25 % | 0.25% FS ± 1 least significant digit (includes linearity, hysteresis, repeatability) | 1.9 in | 3 in | 4-digit (.425˝ H x .234˝ W digits) | LCD | Cable | IP66, NEMA Type 4X | 600 Ω | Aluminum, Polycarbonate, NBR, 316L Stainless Steel | 316L Stainless Steel | Gauge | 300 psi | 0 psi | Alcohols, Argon, Compatible Gases, Compatible Liquids, Nitrogen, Oils, Water | None | 4 | 158 °F | 32 °F | 4 to 20 mA | Current | 0.8 W | 1/4 in | NPT Male | Up to 600 psi | Menu Configurable | 1 Least Significant Digit | 2-24 VAC ± 20% 50 to 400 Hz, 12-24 VDC ± 20% | AC/DC | 12 to 24 Vac/Vdc | 2 SPDT form C contacts, 0.5 A @ 125 VAC resistive, 1 A @ 24 VDC | 0.5 A @ 125 Vac, 1 A @ 24 Vdc | (2) SPDT | 0.026%/°F @ 0 to 70°F, 0.016%/°F @ 70 to 158°F | 8.84 oz | |
DPG-206가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.25 % | 0.25% FS ± 1 least significant digit (includes linearity, hysteresis, repeatability) | 1.9 in | 3 in | 4-digit (.425˝ H x .234˝ W digits) | LCD | Cable | IP66, NEMA Type 4X | 600 Ω | Aluminum, Polycarbonate, NBR, 316L Stainless Steel | 316L Stainless Steel | Gauge | 200 psi | 0 psi | Alcohols, Argon, Compatible Gases, Compatible Liquids, Nitrogen, Oils, Water | None | 4 | 158 °F | 32 °F | 4 to 20 mA | Current | 0.8 W | 1/4 in | NPT Male | Up to 400 psi | Menu Configurable | 1 Least Significant Digit | 2-24 VAC ± 20% 50 to 400 Hz, 12-24 VDC ± 20% | AC/DC | 12 to 24 Vac/Vdc | 2 SPDT form C contacts, 0.5 A @ 125 VAC resistive, 1 A @ 24 VDC | 0.5 A @ 125 Vac, 1 A @ 24 Vdc | (2) SPDT | 0.026%/°F @ 0 to 70°F, 0.016%/°F @ 70 to 158°F | 8.84 oz | |
DPG-203가격 문의17 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.25 % | 0.25% FS ± 1 least significant digit (includes linearity, hysteresis, repeatability) | 1.9 in | 3 in | 4-digit (.425˝ H x .234˝ W digits) | LCD | Cable | IP66, NEMA Type 4X | 600 Ω | Aluminum, Polycarbonate, NBR, 316L Stainless Steel | 316L Stainless Steel | Gauge | 30 psi | 0 psi | Alcohols, Argon, Compatible Gases, Compatible Liquids, Nitrogen, Oils, Water | None | 4 | 158 °F | 32 °F | 4 to 20 mA | Current | 0.8 W | 1/4 in | NPT Male | Up to 60 psi | Menu Configurable | 1 Least Significant Digit | 2-24 VAC ± 20% 50 to 400 Hz, 12-24 VDC ± 20% | AC/DC | 12 to 24 Vac/Vdc | 2 SPDT form C contacts, 0.5 A @ 125 VAC resistive, 1 A @ 24 VDC | 0.5 A @ 125 Vac, 1 A @ 24 Vdc | (2) SPDT | 0.026%/°F @ 0 to 70°F, 0.016%/°F @ 70 to 158°F | 8.84 oz | |
DPG-204가격 문의103 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.25 % | 0.25% FS ± 1 least significant digit (includes linearity, hysteresis, repeatability) | 1.9 in | 3 in | 4-digit (.425˝ H x .234˝ W digits) | LCD | Cable | IP66, NEMA Type 4X | 600 Ω | Aluminum, Polycarbonate, NBR, 316L Stainless Steel | 316L Stainless Steel | Gauge | 50 psi | 0 psi | Alcohols, Argon, Compatible Gases, Compatible Liquids, Nitrogen, Oils, Water | None | 4 | 158 °F | 32 °F | 4 to 20 mA | Current | 0.8 W | 1/4 in | NPT Male | Up to 100 psi | Menu Configurable | 1 Least Significant Digit | 2-24 VAC ± 20% 50 to 400 Hz, 12-24 VDC ± 20% | AC/DC | 12 to 24 Vac/Vdc | 2 SPDT form C contacts, 0.5 A @ 125 VAC resistive, 1 A @ 24 VDC | 0.5 A @ 125 Vac, 1 A @ 24 Vdc | (2) SPDT | 0.026%/°F @ 0 to 70°F, 0.016%/°F @ 70 to 158°F | 8.84 oz | |
DPG-202가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.25 % | 0.25% FS ± 1 least significant digit (includes linearity, hysteresis, repeatability) | 1.9 in | 3 in | 4-digit (.425˝ H x .234˝ W digits) | LCD | Cable | IP66, NEMA Type 4X | 600 Ω | Aluminum, Polycarbonate, NBR, 316L Stainless Steel | 316L Stainless Steel | Gauge | 15 psi | 0 psi | Alcohols, Argon, Compatible Gases, Compatible Liquids, Nitrogen, Oils, Water | None | 4 | 158 °F | 32 °F | 4 to 20 mA | Current | 0.8 W | 1/4 in | NPT Male | Up to 30 psi | Menu Configurable | 1 Least Significant Digit | 2-24 VAC ± 20% 50 to 400 Hz, 12-24 VDC ± 20% | AC/DC | 12 to 24 Vac/Vdc | 2 SPDT form C contacts, 0.5 A @ 125 VAC resistive, 1 A @ 24 VDC | 0.5 A @ 125 Vac, 1 A @ 24 Vdc | (2) SPDT | 0.026%/°F @ 0 to 70°F, 0.016%/°F @ 70 to 158°F | 8.84 oz | |
DPG-200가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.25 % | 0.25% FS ± 1 least significant digit (includes linearity, hysteresis, repeatability) | 1.9 in | 3 in | 4-digit (.425˝ H x .234˝ W digits) | LCD | Cable | IP66, NEMA Type 4X | 600 Ω | Aluminum, Polycarbonate, NBR, 316L Stainless Steel | 316L Stainless Steel | Compound Gauge | 0 psi | -14.7 psi | Alcohols, Argon, Compatible Gases, Compatible Liquids, Nitrogen, Oils, Water | None | 4 | 158 °F | 32 °F | 4 to 20 mA | Current | 0.8 W | 1/4 in | NPT Male | Up to 30 psi | Menu Configurable | 1 Least Significant Digit | 2-24 VAC ± 20% 50 to 400 Hz, 12-24 VDC ± 20% | AC/DC | 12 to 24 Vac/Vdc | 2 SPDT form C contacts, 0.5 A @ 125 VAC resistive, 1 A @ 24 VDC | 0.5 A @ 125 Vac, 1 A @ 24 Vdc | (2) SPDT | 0.026%/°F @ 0 to 70°F, 0.016%/°F @ 70 to 158°F | 8.84 oz | |
DPG-205가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.25 % | 0.25% FS ± 1 least significant digit (includes linearity, hysteresis, repeatability) | 1.9 in | 3 in | 4-digit (.425˝ H x .234˝ W digits) | LCD | Cable | IP66, NEMA Type 4X | 600 Ω | Aluminum, Polycarbonate, NBR, 316L Stainless Steel | 316L Stainless Steel | Gauge | 100 psi | 0 psi | Alcohols, Argon, Compatible Gases, Compatible Liquids, Nitrogen, Oils, Water | None | 4 | 158 °F | 32 °F | 4 to 20 mA | Current | 0.8 W | 1/4 in | NPT Male | Up to 200 psi | Menu Configurable | 1 Least Significant Digit | 2-24 VAC ± 20% 50 to 400 Hz, 12-24 VDC ± 20% | AC/DC | 12 to 24 Vac/Vdc | 2 SPDT form C contacts, 0.5 A @ 125 VAC resistive, 1 A @ 24 VDC | 0.5 A @ 125 Vac, 1 A @ 24 Vdc | (2) SPDT | 0.026%/°F @ 0 to 70°F, 0.016%/°F @ 70 to 158°F | 8.84 oz |
