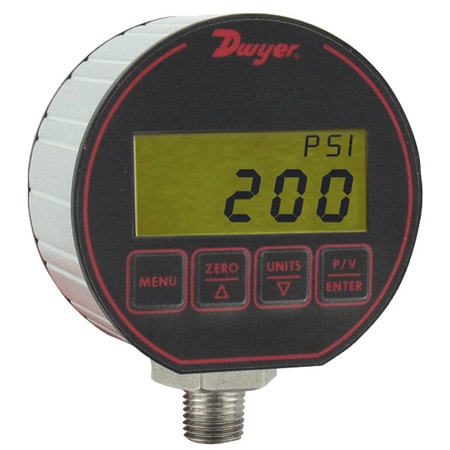

DwyerOmegaSeries-DPG-200
DPG-207
0 to 300 psig, with 1/4 NPT connection and selectable engineering unit
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 8 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:Dwyer a DwyerOmega Brand
Accuracy:± 0.25 %
Accuracy Detail:0.25% FS ± 1 least significant digit (includes linearity, hysteresis, repeatability)
Dial Depth:1.9 in
Dial Dia:3 in
Display Note:4-digit (.425˝ H x .234˝ W digits)
Display Type:LCD
Electrical Connection:Cable
Enclosure Ratings:IP66, NEMA Type 4X
Loop Resistance:600 Ω
Materials:Aluminum, Polycarbonate, NBR, 316L Stainless Steel
Materials, Wetted:316L Stainless Steel
Measurement Pressure Type:Gauge
Measurement Pressure, Max:300 psi
Measurement Pressure, Min:0 psi
Media Compatibility:Alcohols, Argon, Compatible Gases, Compatible Liquids, Nitrogen, Oils, Water
Mounting Orientation:None
Number of Digits:4
Operating Temperature, Max:158 °F
Operating Temperature, Min:32 °F
Output Detail:4 to 20 mA
Output Signal:Current
Power Consumption:0.8 W
Process Connection Size:1/4 in
Process Connection Type:NPT Male
Proof Pressure:Up to 600 psi
Set Point Adjustment:Menu Configurable
Set Point Differential/Hysteresis:1 Least Significant Digit
Supply Power Note:2-24 VAC ± 20% 50 to 400 Hz, 12-24 VDC ± 20%
Supply Power Type:AC/DC
Supply Voltage:12 to 24 Vac/Vdc
Switch Note:2 SPDT form C contacts, 0.5 A @ 125 VAC resistive, 1 A @ 24 VDC
Switch Rating:0.5 A @ 125 Vac, 1 A @ 24 Vdc
Switch Type:(2) SPDT
Thermal Effect:0.026%/°F @ 0 to 70°F, 0.016%/°F @ 70 to 158°F
Weight:8.84 oz
