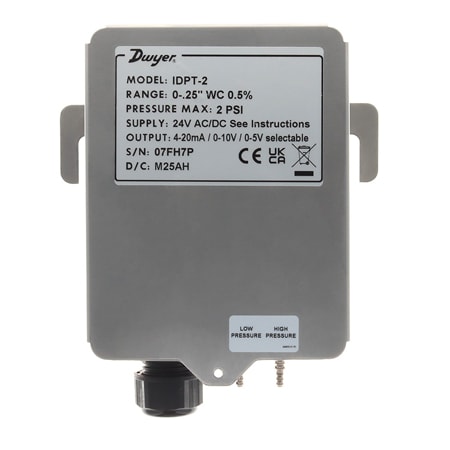

Series-IDPT | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 9개의 상품

제품 번호 / 가격	Brand	Accuracy	Accuracy Detail	Applications	Compensated Temperature, Max	Compensated Temperature, Min	Compliance	Display Type	Electrical Connection	Electrical Output	Enclosure Ratings	Long Term Stability	Loop Resistance	Materials, Wetted	Measurement Pressure Type	Measurement Pressure, Max	Measurement Pressure, Min	Media Compatibility	Mounting Note	Number of Wires	Operating Temperature, Max	Operating Temperature, Min	Output Detail	Output Signal	Process Connection Note	Process Connection Size	Process Connection Type	Proof Pressure	Response Time	Span Adjustment	Storage Temperature, Max	Storage Temperature, Min	Supply Power Type	Supply Voltage	Thermal Effects	Weight	Zero Setting Adjustable Range
IDPT-27U-IN가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 0.5 %	± 0.5% FS standard	Industrial and Manufacturing	57 °C	2 °C	CE	N/A	Screw Terminal	4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc	IP11, NEMA Type 2	± 0.5% FS/year	2-Wire: 0-1045 Ω, Vmin=12V+[(.22A)(Rl)]; 3-Wire: Min. load resistance 1 kΩ	Consult Factory	Differential	10 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases	Not Position Sensitive	2, 3	70 °C	-20 °C	Field Selectable	Current, Voltage	Barbed SS, ID tubing	3/16 in	Barbed Fitting	Up to 2 psi	250 ms	Push Button	80 °C	-30 °C	AC/DC	2-Wire: 10 to 35 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac	± 0.025% FS/°F	0.49 kg	Push buttons accessible by removing the housing cover
IDPT-26U-IN가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 0.5 %	± 0.5% FS standard	Industrial and Manufacturing	57 °C	2 °C	CE	N/A	Screw Terminal	4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc	IP11, NEMA Type 2	± 0.5% FS/year	2-Wire: 0-1045 Ω, Vmin=12V+[(.22A)(Rl)]; 3-Wire: Min. load resistance 1 kΩ	Consult Factory	Differential	5 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases	Not Position Sensitive	2, 3	70 °C	-20 °C	Field Selectable	Current, Voltage	Barbed SS, ID tubing	3/16 in	Barbed Fitting	Up to 2 psi	250 ms	Push Button	80 °C	-30 °C	AC/DC	2-Wire: 10 to 35 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac	± 0.025% FS/°F	0.49 kg	Push buttons accessible by removing the housing cover
IDPT-25U-IN가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 0.5 %	± 0.5% FS standard	Industrial and Manufacturing	57 °C	2 °C	CE	N/A	Screw Terminal	4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc	IP11, NEMA Type 2	± 0.5% FS/year	2-Wire: 0-1045 Ω, Vmin=12V+[(.22A)(Rl)]; 3-Wire: Min. load resistance 1 kΩ	Consult Factory	Differential	2.5 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases	Not Position Sensitive	2, 3	70 °C	-20 °C	Field Selectable	Current, Voltage	Barbed SS, ID tubing	3/16 in	Barbed Fitting	Up to 2 psi	250 ms	Push Button	80 °C	-30 °C	AC/DC	2-Wire: 10 to 35 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac	± 0.025% FS/°F	0.49 kg	Push buttons accessible by removing the housing cover
IDPT-26B-IN가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 0.5 %	± 0.5% FS standard	Industrial and Manufacturing	57 °C	2 °C	CE	N/A	Screw Terminal	4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc	IP11, NEMA Type 2	± 0.5% FS/year	2-Wire: 0-1045 Ω, Vmin=12V+[(.22A)(Rl)]; 3-Wire: Min. load resistance 1 kΩ	Consult Factory	Differential	5 inH₂O	-5 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases	Not Position Sensitive	2, 3	70 °C	-20 °C	Field Selectable	Current, Voltage	Barbed SS, ID tubing	3/16 in	Barbed Fitting	Up to 2 psi	250 ms	Push Button	80 °C	-30 °C	AC/DC	2-Wire: 10 to 35 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac	± 0.025% FS/°F	0.49 kg	Push buttons accessible by removing the housing cover
IDPT-24U-IN가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 0.5 %	± 0.5% FS standard	Industrial and Manufacturing	57 °C	2 °C	CE	N/A	Screw Terminal	4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc	IP11, NEMA Type 2	± 0.5% FS/year	2-Wire: 0-1045 Ω, Vmin=12V+[(.22A)(Rl)]; 3-Wire: Min. load resistance 1 kΩ	Consult Factory	Differential	1 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases	Not Position Sensitive	2, 3	70 °C	-20 °C	Field Selectable	Current, Voltage	Barbed SS, ID tubing	3/16 in	Barbed Fitting	Up to 2 psi	250 ms	Push Button	80 °C	-30 °C	AC/DC	2-Wire: 10 to 35 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac	± 0.015% FS/°F	0.43 kg	Push buttons accessible by removing the housing cover
IDPT-22U-IN가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 0.5 %	± 0.5% FS standard	Industrial and Manufacturing	57 °C	2 °C	CE	N/A	Screw Terminal	4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc	IP11, NEMA Type 2	± 0.5% FS/year	2-Wire: 0-1045 Ω, Vmin=12V+[(.22A)(Rl)]; 3-Wire: Min. load resistance 1 kΩ	Consult Factory	Differential	0.25 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases	Not Position Sensitive	2, 3	70 °C	-20 °C	Field Selectable	Current, Voltage	Barbed SS, ID tubing	3/16 in	Barbed Fitting	Up to 2 psi	250 ms	Push Button	80 °C	-30 °C	AC/DC	2-Wire: 10 to 35 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac	± 0.015% FS/°F	0.43 kg	Push buttons accessible by removing the housing cover
IDPT-23U-IN가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 0.5 %	± 0.5% FS standard	Industrial and Manufacturing	57 °C	2 °C	CE	N/A	Screw Terminal	4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc	IP11, NEMA Type 2	± 0.5% FS/year	2-Wire: 0-1045 Ω, Vmin=12V+[(.22A)(Rl)]; 3-Wire: Min. load resistance 1 kΩ	Consult Factory	Differential	0.5 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases	Not Position Sensitive	2, 3	70 °C	-20 °C	Field Selectable	Current, Voltage	Barbed SS, ID tubing	3/16 in	Barbed Fitting	Up to 2 psi	250 ms	Push Button	80 °C	-30 °C	AC/DC	2-Wire: 10 to 35 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac	± 0.015% FS/°F	0.43 kg	Push buttons accessible by removing the housing cover
IDPT-22B-IN가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 0.5 %	± 0.5% FS standard	Industrial and Manufacturing	57 °C	2 °C	CE	N/A	Screw Terminal	4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc	IP11, NEMA Type 2	± 0.5% FS/year	2-Wire: 0-1045 Ω, Vmin=12V+[(.22A)(Rl)]; 3-Wire: Min. load resistance 1 kΩ	Consult Factory	Differential	0.25 inH₂O	-0.25 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases	Not Position Sensitive	2, 3	70 °C	-20 °C	Field Selectable	Current, Voltage	Barbed SS, ID tubing	3/16 in	Barbed Fitting	Up to 2 psi	250 ms	Push Button	80 °C	-30 °C	AC/DC	2-Wire: 10 to 35 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac	± 0.015% FS/°F	0.43 kg	Push buttons accessible by removing the housing cover
IDPT-12U-IN가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 0.25 %	± 0.25% FS high accuracy	Industrial and Manufacturing	57 °C	2 °C	CE	N/A	Screw Terminal	4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc	IP11, NEMA Type 2	± 0.5% FS/year	2-Wire: 0-1045 Ω, Vmin=12V+[(.22A)(Rl)]; 3-Wire: Min. load resistance 1 kΩ	Consult Factory	Differential	0.25 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases	Not Position Sensitive	2, 3	70 °C	-20 °C	Field Selectable	Current, Voltage	Barbed SS, ID tubing	3/16 in	Barbed Fitting	Up to 2 psi	250 ms	Push Button	80 °C	-30 °C	AC/DC	2-Wire: 10 to 35 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac	± 0.015% FS/°F	0.43 kg	Push buttons accessible by removing the housing cover

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Accuracy

Accuracy Detail

Applications

Compensated Temperature, Max

Compensated Temperature, Min

Compliance

Display Type

Electrical Connection

Electrical Output

Enclosure Ratings

Long Term Stability

Loop Resistance

Materials, Wetted

Measurement Pressure Type

Measurement Pressure, Max

Measurement Pressure, Min

Media Compatibility

Mounting Note

Number of Wires

Operating Temperature, Max

Operating Temperature, Min

Output Detail

Output Signal

Process Connection Note

Process Connection Size

Process Connection Type

Proof Pressure

Response Time

Span Adjustment

Storage Temperature, Max

Storage Temperature, Min

Supply Power Type

Supply Voltage

Thermal Effects

Weight

Zero Setting Adjustable Range

수량 / 장바구니

IDPT-27U-IN가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 0.5 %

± 0.5% FS standard

Industrial and Manufacturing

57 °C

2 °C

N/A

Screw Terminal

4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc

IP11, NEMA Type 2

± 0.5% FS/year

2-Wire: 0-1045 Ω, Vmin=12V+[(.22A)(Rl)]; 3-Wire: Min. load resistance 1 kΩ

Consult Factory

Differential

10 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases

Not Position Sensitive

2, 3

70 °C

-20 °C

Field Selectable

Current, Voltage

Barbed SS, ID tubing

3/16 in

Barbed Fitting

Up to 2 psi

250 ms

Push Button

80 °C

-30 °C

AC/DC

2-Wire: 10 to 35 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac

± 0.025% FS/°F

0.49 kg

Push buttons accessible by removing the housing cover

IDPT-26U-IN가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 0.5 %

± 0.5% FS standard

Industrial and Manufacturing

57 °C

2 °C

N/A

Screw Terminal

4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc

IP11, NEMA Type 2

± 0.5% FS/year

2-Wire: 0-1045 Ω, Vmin=12V+[(.22A)(Rl)]; 3-Wire: Min. load resistance 1 kΩ

Consult Factory

Differential

5 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases

Not Position Sensitive

2, 3

70 °C

-20 °C

Field Selectable

Current, Voltage

Barbed SS, ID tubing

3/16 in

Barbed Fitting

Up to 2 psi

250 ms

Push Button

80 °C

-30 °C

AC/DC

2-Wire: 10 to 35 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac

± 0.025% FS/°F

0.49 kg

Push buttons accessible by removing the housing cover

IDPT-25U-IN가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 0.5 %

± 0.5% FS standard

Industrial and Manufacturing

57 °C

2 °C

N/A

Screw Terminal

4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc

IP11, NEMA Type 2

± 0.5% FS/year

2-Wire: 0-1045 Ω, Vmin=12V+[(.22A)(Rl)]; 3-Wire: Min. load resistance 1 kΩ

Consult Factory

Differential

2.5 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases

Not Position Sensitive

2, 3

70 °C

-20 °C

Field Selectable

Current, Voltage

Barbed SS, ID tubing

3/16 in

Barbed Fitting

Up to 2 psi

250 ms

Push Button

80 °C

-30 °C

AC/DC

2-Wire: 10 to 35 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac

± 0.025% FS/°F

0.49 kg

Push buttons accessible by removing the housing cover

IDPT-26B-IN가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 0.5 %

± 0.5% FS standard

Industrial and Manufacturing

57 °C

2 °C

N/A

Screw Terminal

4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc

IP11, NEMA Type 2

± 0.5% FS/year

2-Wire: 0-1045 Ω, Vmin=12V+[(.22A)(Rl)]; 3-Wire: Min. load resistance 1 kΩ

Consult Factory

Differential

5 inH₂O

-5 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases

Not Position Sensitive

2, 3

70 °C

-20 °C

Field Selectable

Current, Voltage

Barbed SS, ID tubing

3/16 in

Barbed Fitting

Up to 2 psi

250 ms

Push Button

80 °C

-30 °C

AC/DC

2-Wire: 10 to 35 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac

± 0.025% FS/°F

0.49 kg

Push buttons accessible by removing the housing cover

IDPT-24U-IN가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 0.5 %

± 0.5% FS standard

Industrial and Manufacturing

57 °C

2 °C

N/A

Screw Terminal

4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc

IP11, NEMA Type 2

± 0.5% FS/year

2-Wire: 0-1045 Ω, Vmin=12V+[(.22A)(Rl)]; 3-Wire: Min. load resistance 1 kΩ

Consult Factory

Differential

1 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases

Not Position Sensitive

2, 3

70 °C

-20 °C

Field Selectable

Current, Voltage

Barbed SS, ID tubing

3/16 in

Barbed Fitting

Up to 2 psi

250 ms

Push Button

80 °C

-30 °C

AC/DC

2-Wire: 10 to 35 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac

± 0.015% FS/°F

0.43 kg

Push buttons accessible by removing the housing cover

IDPT-22U-IN가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 0.5 %

± 0.5% FS standard

Industrial and Manufacturing

57 °C

2 °C

N/A

Screw Terminal

4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc

IP11, NEMA Type 2

± 0.5% FS/year

2-Wire: 0-1045 Ω, Vmin=12V+[(.22A)(Rl)]; 3-Wire: Min. load resistance 1 kΩ

Consult Factory

Differential

0.25 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases

Not Position Sensitive

2, 3

70 °C

-20 °C

Field Selectable

Current, Voltage

Barbed SS, ID tubing

3/16 in

Barbed Fitting

Up to 2 psi

250 ms

Push Button

80 °C

-30 °C

AC/DC

2-Wire: 10 to 35 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac

± 0.015% FS/°F

0.43 kg

Push buttons accessible by removing the housing cover

IDPT-23U-IN가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 0.5 %

± 0.5% FS standard

Industrial and Manufacturing

57 °C

2 °C

N/A

Screw Terminal

4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc

IP11, NEMA Type 2

± 0.5% FS/year

2-Wire: 0-1045 Ω, Vmin=12V+[(.22A)(Rl)]; 3-Wire: Min. load resistance 1 kΩ

Consult Factory

Differential

0.5 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases

Not Position Sensitive

2, 3

70 °C

-20 °C

Field Selectable

Current, Voltage

Barbed SS, ID tubing

3/16 in

Barbed Fitting

Up to 2 psi

250 ms

Push Button

80 °C

-30 °C

AC/DC

2-Wire: 10 to 35 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac

± 0.015% FS/°F

0.43 kg

Push buttons accessible by removing the housing cover

IDPT-22B-IN가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 0.5 %

± 0.5% FS standard

Industrial and Manufacturing

57 °C

2 °C

N/A

Screw Terminal

4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc

IP11, NEMA Type 2

± 0.5% FS/year

2-Wire: 0-1045 Ω, Vmin=12V+[(.22A)(Rl)]; 3-Wire: Min. load resistance 1 kΩ

Consult Factory

Differential

0.25 inH₂O

-0.25 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases

Not Position Sensitive

2, 3

70 °C

-20 °C

Field Selectable

Current, Voltage

Barbed SS, ID tubing

3/16 in

Barbed Fitting

Up to 2 psi

250 ms

Push Button

80 °C

-30 °C

AC/DC

2-Wire: 10 to 35 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac

± 0.015% FS/°F

0.43 kg

Push buttons accessible by removing the housing cover

IDPT-12U-IN가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 0.25 %

± 0.25% FS high accuracy

Industrial and Manufacturing

57 °C

2 °C

N/A

Screw Terminal

4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc

IP11, NEMA Type 2

± 0.5% FS/year

2-Wire: 0-1045 Ω, Vmin=12V+[(.22A)(Rl)]; 3-Wire: Min. load resistance 1 kΩ

Consult Factory

Differential

0.25 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases

Not Position Sensitive

2, 3

70 °C

-20 °C

Field Selectable

Current, Voltage

Barbed SS, ID tubing

3/16 in

Barbed Fitting

Up to 2 psi

250 ms

Push Button

80 °C

-30 °C

AC/DC

2-Wire: 10 to 35 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac

± 0.015% FS/°F

0.43 kg

Push buttons accessible by removing the housing cover
