DwyerOmegaSeries-IDPT
IDPT-26U-IN

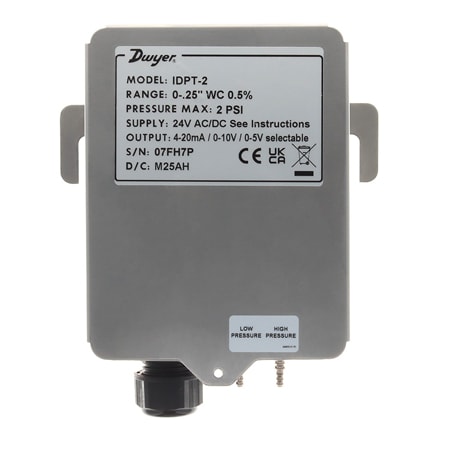

IDPT Industrial Differential Pressure Transmitter (0-5” WC 0.5%)
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 7 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:Dwyer a DwyerOmega Brand
Accuracy:± 0.5 %
Accuracy Detail:± 0.5% FS standard
Applications:Industrial and Manufacturing
Compensated Temperature, Max:57 °C
Compensated Temperature, Min:2 °C
Compliance:CE
Display Type:N/A
Electrical Connection:Screw Terminal
Electrical Output:4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc
Enclosure Ratings:IP11, NEMA Type 2
Long Term Stability:± 0.5% FS/year
Loop Resistance:2-Wire: 0-1045 Ω, Vmin=12V+[(.22A)(Rl)]; 3-Wire: Min. load resistance 1 kΩ
Materials, Wetted:Consult Factory
Measurement Pressure Type:Differential
Measurement Pressure, Max:5 inH₂O
Measurement Pressure, Min:0 inH₂O
Media Compatibility:Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases
Mounting Note:Not Position Sensitive
Number of Wires:2, 3
Operating Temperature, Max:70 °C
Operating Temperature, Min:-20 °C
Output Detail:Field Selectable
Output Signal:Current, Voltage
Process Connection Note:Barbed SS, ID tubing
Process Connection Size:3/16 in
Process Connection Type:Barbed Fitting
Proof Pressure:Up to 2 psi
Response Time:250 ms
Span Adjustment:Push Button
Storage Temperature, Max:80 °C
Storage Temperature, Min:-30 °C
Supply Power Type:AC/DC
Supply Voltage:2-Wire: 10 to 35 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac
Thermal Effects:± 0.025% FS/°F
Weight:0.49 kg
Zero Setting Adjustable Range:Push buttons accessible by removing the housing cover
