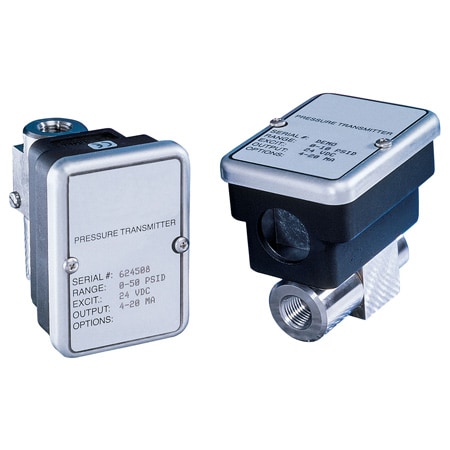

고정밀 습식/습식 차압 변압기
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 13개의 상품
| 제품 번호 / 가격 | Brand | Accuracy | Accuracy Class | Accuracy Detail | Additional Features 1 | Burst Pressure | Cavity Volume | Compatible Meters | Compensated Temperature, Max | Compensated Temperature, Min | Electrical Connection | Electrical Output | Enclosure Ratings | Hysteresis | Line/Static Pressure | Linearity Error | Loop Resistance, Max | Materials, Wetted | Measurement Pressure Type | Measurement Pressure, Max | Measurement Pressure, Min | Operating Temperature, Max | Operating Temperature, Min | Output Signal | Process Connection Size | Process Connection Type | Repeatability Error | Response Time | Response Time Note | Sensing Element | Supply Power Note | Supply Voltage | Thermal Effect on Zero error, Max | Weight | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PX2300-2.5BDI1,621,430 원4 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.25 % | 0.1% to 0.25% | ± 0.25% RSS FS at constant temperature (includes linearity, repeatability and hysteresis) | None | 2.5x Full Scale | 4.4 CC positive port, 1.3 cc negative port | DP41-E, DP25B-E, DP-7700 | 65 °C | -1 °C | Screw Terminal w/ 22.2 mm (0.875") conduit opening | 4 to 20 mA | IP65, NEMA Type 4 | 0.10% FS | 250 psig | ± 0.20% | 1000 Ω | 17-4 Stainless Steel, 300 Stainless Steel, FKM, Silicone | Differential | 2.5 psi | -2.5 psi | 80 °C | -18 °C | Current | 1/4 in | NPT Female | ± 0.05% FSO | 50 ms | 50 ms (water) | Capacitive | 24 Vdc nominal Max: 30 + 0.004 x (loop resistance Ω) Vdc Min: 11 + 0.02 x (loop resistance Ω) Vdc | 24 Vdc | <± 0.02% FS/°F , <± 0.02% FS/°F | 410 g | |
PX2300-25BDI1,614,680 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.25 % | 0.1% to 0.25% | ± 0.25% RSS FS at constant temperature (includes linearity, repeatability and hysteresis) | None | 2.5x Full Scale | 4.4 CC positive port, 1.3 cc negative port | DP41-E, DP25B-E, DP-7700 | 65 °C | -1 °C | Screw Terminal w/ 22.2 mm (0.875") conduit opening | 4 to 20 mA | IP65, NEMA Type 4 | 0.10% FS | 250 psig | ± 0.20% | 1000 Ω | 17-4 Stainless Steel, 300 Stainless Steel, FKM, Silicone | Differential | 25 psi | -25 psi | 80 °C | -18 °C | Current | 1/4 in | NPT Female | ± 0.05% FSO | 50 ms | 50 ms (water) | Capacitive | 24 Vdc nominal Max: 30 + 0.004 x (loop resistance Ω) Vdc Min: 11 + 0.02 x (loop resistance Ω) Vdc | 24 Vdc | <± 0.02% FS/°F , <± 0.02% FS/°F | 410 g | |
PX2300-50BDI1,612,490 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.25 % | 0.1% to 0.25% | ± 0.25% RSS FS at constant temperature (includes linearity, repeatability and hysteresis) | None | 2.5x Full Scale | 4.4 CC positive port, 1.3 cc negative port | DP41-E, DP25B-E, DP-7700 | 65 °C | -1 °C | Screw Terminal w/ 22.2 mm (0.875") conduit opening | 4 to 20 mA | IP65, NEMA Type 4 | 0.10% FS | 250 psig | ± 0.20% | 1000 Ω | 17-4 Stainless Steel, 300 Stainless Steel, FKM, Silicone | Differential | 50 psi | -50 psi | 80 °C | -18 °C | Current | 1/4 in | NPT Female | ± 0.05% FSO | 50 ms | 50 ms (water) | Capacitive | 24 Vdc nominal Max: 30 + 0.004 x (loop resistance Ω) Vdc Min: 11 + 0.02 x (loop resistance Ω) Vdc | 24 Vdc | <± 0.02% FS/°F , <± 0.02% FS/°F | 410 g | |
PX2300-10BDI1,612,490 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.25 % | 0.1% to 0.25% | ± 0.25% RSS FS at constant temperature (includes linearity, repeatability and hysteresis) | None | 2.5x Full Scale | 4.4 CC positive port, 1.3 cc negative port | DP41-E, DP25B-E, DP-7700 | 65 °C | -1 °C | Screw Terminal w/ 22.2 mm (0.875") conduit opening | 4 to 20 mA | IP65, NEMA Type 4 | 0.10% FS | 250 psig | ± 0.20% | 1000 Ω | 17-4 Stainless Steel, 300 Stainless Steel, FKM, Silicone | Differential | 10 psi | -10 psi | 80 °C | -18 °C | Current | 1/4 in | NPT Female | ± 0.05% FSO | 50 ms | 50 ms (water) | Capacitive | 24 Vdc nominal Max: 30 + 0.004 x (loop resistance Ω) Vdc Min: 11 + 0.02 x (loop resistance Ω) Vdc | 24 Vdc | <± 0.02% FS/°F , <± 0.02% FS/°F | 410 g | |
PX2300-100DI1,663,690 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.25 % | 0.1% to 0.25% | ± 0.25% RSS FS at constant temperature (includes linearity, repeatability and hysteresis) | None | 2.5x Full Scale | 4.4 CC positive port, 1.3 cc negative port | DP41-E, DP25B-E, DP-7700 | 65 °C | -1 °C | Screw Terminal w/ 22.2 mm (0.875") conduit opening | 4 to 20 mA | IP65, NEMA Type 4 | 0.10% FS | 250 psig | ± 0.20% | 1000 Ω | 17-4 Stainless Steel, 300 Stainless Steel, FKM, Silicone | Differential | 100 psi | 0 psi | 80 °C | -18 °C | Current | 1/4 in | NPT Female | ± 0.05% FSO | 50 ms | 50 ms (water) | Capacitive | 24 Vdc nominal Max: 30 + 0.004 x (loop resistance Ω) Vdc Min: 11 + 0.02 x (loop resistance Ω) Vdc | 24 Vdc | <± 0.02% FS/°F , <± 0.02% FS/°F | 410 g | |
PX2300-5BDI1,534,780 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.25 % | 0.1% to 0.25% | ± 0.25% RSS FS at constant temperature (includes linearity, repeatability and hysteresis) | None | 2.5x Full Scale | 4.4 CC positive port, 1.3 cc negative port | DP41-E, DP25B-E, DP-7700 | 65 °C | -1 °C | Screw Terminal w/ 22.2 mm (0.875") conduit opening | 4 to 20 mA | IP65, NEMA Type 4 | 0.10% FS | 250 psig | ± 0.20% | 1000 Ω | 17-4 Stainless Steel, 300 Stainless Steel, FKM, Silicone | Differential | 5 psi | -5 psi | 80 °C | -18 °C | Current | 1/4 in | NPT Female | ± 0.05% FSO | 50 ms | 50 ms (water) | Capacitive | 24 Vdc nominal Max: 30 + 0.004 x (loop resistance Ω) Vdc Min: 11 + 0.02 x (loop resistance Ω) Vdc | 24 Vdc | <± 0.02% FS/°F , <± 0.02% FS/°F | 410 g | |
PX2300-25DI1,574,790 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.25 % | 0.1% to 0.25% | ± 0.25% RSS FS at constant temperature (includes linearity, repeatability and hysteresis) | None | 2.5x Full Scale | 4.4 CC positive port, 1.3 cc negative port | DP41-E, DP25B-E, DP-7700 | 65 °C | -1 °C | Screw Terminal w/ 22.2 mm (0.875") conduit opening | 4 to 20 mA | IP65, NEMA Type 4 | 0.10% FS | 250 psig | ± 0.20% | 1000 Ω | 17-4 Stainless Steel, 300 Stainless Steel, FKM, Silicone | Differential | 25 psi | 0 psi | 80 °C | -18 °C | Current | 1/4 in | NPT Female | ± 0.05% FSO | 50 ms | 50 ms (water) | Capacitive | 24 Vdc nominal Max: 30 + 0.004 x (loop resistance Ω) Vdc Min: 11 + 0.02 x (loop resistance Ω) Vdc | 24 Vdc | <± 0.02% FS/°F , <± 0.02% FS/°F | 410 g | |
PX2300-50DI1,663,690 원4 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.25 % | 0.1% to 0.25% | ± 0.25% RSS FS at constant temperature (includes linearity, repeatability and hysteresis) | None | 2.5x Full Scale | 4.4 CC positive port, 1.3 cc negative port | DP41-E, DP25B-E, DP-7700 | 65 °C | -1 °C | Screw Terminal w/ 22.2 mm (0.875") conduit opening | 4 to 20 mA | IP65, NEMA Type 4 | 0.10% FS | 250 psig | ± 0.20% | 1000 Ω | 17-4 Stainless Steel, 300 Stainless Steel, FKM, Silicone | Differential | 50 psi | 0 psi | 80 °C | -18 °C | Current | 1/4 in | NPT Female | ± 0.05% FSO | 50 ms | 50 ms (water) | Capacitive | 24 Vdc nominal Max: 30 + 0.004 x (loop resistance Ω) Vdc Min: 11 + 0.02 x (loop resistance Ω) Vdc | 24 Vdc | <± 0.02% FS/°F , <± 0.02% FS/°F | 410 g | |
PX2300-1BDI1,663,690 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.25 % | 0.1% to 0.25% | ± 0.25% RSS FS at constant temperature (includes linearity, repeatability and hysteresis) | None | 2.5x Full Scale | 4.4 CC positive port, 1.3 cc negative port | DP41-E, DP25B-E, DP-7700 | 65 °C | -1 °C | Screw Terminal w/ 22.2 mm (0.875") conduit opening | 4 to 20 mA | IP65, NEMA Type 4 | 0.10% FS | 250 psig | ± 0.20% | 1000 Ω | 17-4 Stainless Steel, 300 Stainless Steel, FKM, Silicone | Differential | 1 psi | -1 psi | 80 °C | -18 °C | Current | 1/4 in | NPT Female | ± 0.05% FSO | 50 ms | 50 ms (water) | Capacitive | 24 Vdc nominal Max: 30 + 0.004 x (loop resistance Ω) Vdc Min: 11 + 0.02 x (loop resistance Ω) Vdc | 24 Vdc | <± 0.02% FS/°F , <± 0.02% FS/°F | 410 g | |
PX2300-5DI1,663,690 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.25 % | 0.1% to 0.25% | ± 0.25% RSS FS at constant temperature (includes linearity, repeatability and hysteresis) | None | 2.5x Full Scale | 4.4 CC positive port, 1.3 cc negative port | DP41-E, DP25B-E, DP-7700 | 65 °C | -1 °C | Screw Terminal w/ 22.2 mm (0.875") conduit opening | 4 to 20 mA | IP65, NEMA Type 4 | 0.10% FS | 250 psig | ± 0.20% | 1000 Ω | 17-4 Stainless Steel, 300 Stainless Steel, FKM, Silicone | Differential | 5 psi | 0 psi | 80 °C | -18 °C | Current | 1/4 in | NPT Female | ± 0.05% FSO | 50 ms | 50 ms (water) | Capacitive | 24 Vdc nominal Max: 30 + 0.004 x (loop resistance Ω) Vdc Min: 11 + 0.02 x (loop resistance Ω) Vdc | 24 Vdc | <± 0.02% FS/°F , <± 0.02% FS/°F | 410 g | |
PX2300-10DI1,663,690 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.25 % | 0.1% to 0.25% | ± 0.25% RSS FS at constant temperature (includes linearity, repeatability and hysteresis) | None | 2.5x Full Scale | 4.4 CC positive port, 1.3 cc negative port | DP41-E, DP25B-E, DP-7700 | 65 °C | -1 °C | Screw Terminal w/ 22.2 mm (0.875") conduit opening | 4 to 20 mA | IP65, NEMA Type 4 | 0.10% FS | 250 psig | ± 0.20% | 1000 Ω | 17-4 Stainless Steel, 300 Stainless Steel, FKM, Silicone | Differential | 10 psi | 0 psi | 80 °C | -18 °C | Current | 1/4 in | NPT Female | ± 0.05% FSO | 50 ms | 50 ms (water) | Capacitive | 24 Vdc nominal Max: 30 + 0.004 x (loop resistance Ω) Vdc Min: 11 + 0.02 x (loop resistance Ω) Vdc | 24 Vdc | <± 0.02% FS/°F , <± 0.02% FS/°F | 410 g | |
PX2300-2DI1,574,790 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.25 % | 0.1% to 0.25% | ± 0.25% RSS FS at constant temperature (includes linearity, repeatability and hysteresis) | None | 2.5x Full Scale | 4.4 CC positive port, 1.3 cc negative port | DP41-E, DP25B-E, DP-7700 | 65 °C | -1 °C | Screw Terminal w/ 22.2 mm (0.875") conduit opening | 4 to 20 mA | IP65, NEMA Type 4 | 0.10% FS | 250 psig | ± 0.20% | 1000 Ω | 17-4 Stainless Steel, 300 Stainless Steel, FKM, Silicone | Differential | 2 psi | 0 psi | 80 °C | -18 °C | Current | 1/4 in | NPT Female | ± 0.05% FSO | 50 ms | 50 ms (water) | Capacitive | 24 Vdc nominal Max: 30 + 0.004 x (loop resistance Ω) Vdc Min: 11 + 0.02 x (loop resistance Ω) Vdc | 24 Vdc | <± 0.02% FS/°F , <± 0.02% FS/°F | 410 g | |
PX2300-1DI1,663,690 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.25 % | 0.1% to 0.25% | ± 0.25% RSS FS at constant temperature (includes linearity, repeatability and hysteresis) | None | 2.5x Full Scale | 4.4 CC positive port, 1.3 cc negative port | DP41-E, DP25B-E, DP-7700 | 65 °C | -1 °C | Screw Terminal w/ 22.2 mm (0.875") conduit opening | 4 to 20 mA | IP65, NEMA Type 4 | 0.10% FS | 250 psig | ± 0.20% | 1000 Ω | 17-4 Stainless Steel, 300 Stainless Steel, FKM, Silicone | Differential | 1 psi | 0 psi | 80 °C | -18 °C | Current | 1/4 in | NPT Female | ± 0.05% FSO | 50 ms | 50 ms (water) | Capacitive | 24 Vdc nominal Max: 30 + 0.004 x (loop resistance Ω) Vdc Min: 11 + 0.02 x (loop resistance Ω) Vdc | 24 Vdc | <± 0.02% FS/°F , <± 0.02% FS/°F | 410 g |
