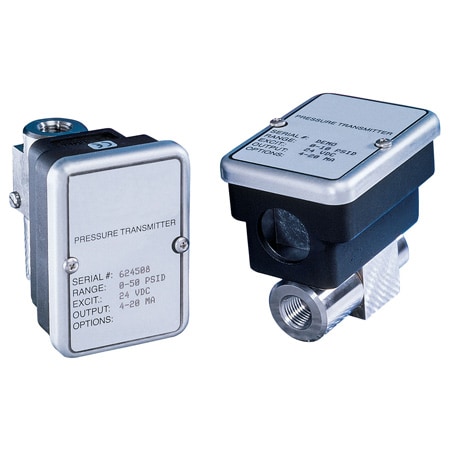

DwyerOmegaPX2300
PX2300-50DI
LOW DIFFERENTIAL TRANSDUCER CE
- 가격
- 1,663,690 원
- VAT 10%
- 166,369 원
- 총 금액
- 1,830,059 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 4 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 0.25 %
Accuracy Class:0.1% to 0.25%
Accuracy Detail:± 0.25% RSS FS at constant temperature (includes linearity, repeatability and hysteresis)
Additional Features 1:None
Burst Pressure:2.5x Full Scale
Cavity Volume:4.4 CC positive port, 1.3 cc negative port
Compatible Meters:DP41-E, DP25B-E, DP-7700
Compensated Temperature, Max:65 °C
Compensated Temperature, Min:-1 °C
Electrical Connection:Screw Terminal w/ 22.2 mm (0.875") conduit opening
Electrical Output:4 to 20 mA
Enclosure Ratings:IP65, NEMA Type 4
Hysteresis:0.10% FS
Line/Static Pressure:250 psig
Linearity Error:± 0.20%
Loop Resistance, Max:1000 Ω
Materials, Wetted:17-4 Stainless Steel, 300 Stainless Steel, FKM, Silicone
Measurement Pressure Type:Differential
Measurement Pressure, Max:50 psi
Measurement Pressure, Min:0 psi
Operating Temperature, Max:80 °C
Operating Temperature, Min:-18 °C
Output Signal:Current
Process Connection Size:1/4 in
Process Connection Type:NPT Female
Repeatability Error:± 0.05% FSO
Response Time:50 ms
Response Time Note:50 ms (water)
Sensing Element:Capacitive
Supply Power Note:24 Vdc nominal Max: 30 + 0.004 x (loop resistance Ω) Vdc Min: 11 + 0.02 x (loop resistance Ω) Vdc
Supply Voltage:24 Vdc
Thermal Effect on Zero error, Max:<± 0.02% FS/°F , <± 0.02% FS/°F
Weight:410 g
