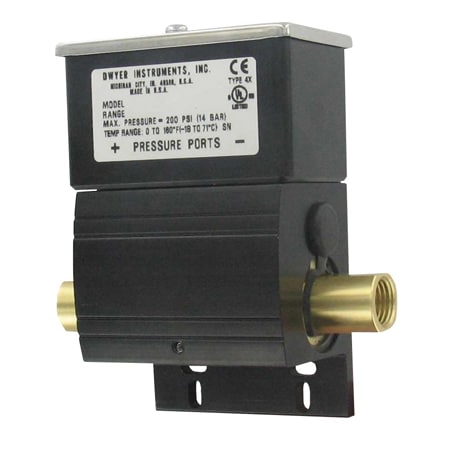

습식/습식 차압 스위치, 1 psid, 황동, 방수형
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 4개의 상품
| 제품 번호 / 가격 | Brand | Compliance | Deadband | Electrical Connection | Enclosure Ratings | Materials | Materials, Wetted | Measurement Pressure Type | Measurement Pressure, Max | Measurement Pressure, Min | Media Compatibility | Mounting Orientation | Operating Environment | Operating Temperature, Max | Operating Temperature, Min | Pollution Degree | Process Connection Size | Process Connection Type | Proof Pressure | Relative Humidity | Repeatability | Set Point Adjustment | Switch Note | Switch Rating | Switch Type | Vibration and Shock | Weight | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
DXW-11-153-2가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | CE, cULus | 2.5 to 3.5 psi | 1/2 in NPT female Conduit with Screw Terminal block | IP65, NEMA Type 4X | Aluminum, 300 Stainless Steel, Polycarbonate | Brass, Fluoroelastomer | Differential | 25 psi | 10 psi | Consult Factory | Horizontal Ports | Intended for Indoor and Outdoor Use | 140 °F | 30 °F | 2 | 1/4 in | NPT Female | Up to 200 psi | 80% (Non-Condensing) | ± 2% | External Screw | SPDT snap switch, 5 A @ 125/250 VAC (~), 5 A res. @ 30 VDC (-) | 5 A @ 125/250 Vac, 5 A @ 30 Vdc | SPDT NO/NC, Selectable | Set point repeats after 2.5 Gs, 5 to 500 Hz. Set point repeats after a 15 Gs, 10 millisecond duration | 0.54 kg | |
DXW-11-153-3가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | CE, cULus | 3.5 to 6 psi | 1/2 in NPT female Conduit with Screw Terminal block | IP65, NEMA Type 4X | Aluminum, 300 Stainless Steel, Polycarbonate | Brass, Fluoroelastomer | Differential | 50 psi | 25 psi | Consult Factory | Horizontal Ports | Intended for Indoor and Outdoor Use | 140 °F | 30 °F | 2 | 1/4 in | NPT Female | Up to 200 psi | 80% (Non-Condensing) | ± 2% | External Screw | SPDT snap switch, 5 A @ 125/250 VAC (~), 5 A res. @ 30 VDC (-) | 5 A @ 125/250 Vac, 5 A @ 30 Vdc | SPDT NO/NC, Selectable | Set point repeats after 2.5 Gs, 5 to 500 Hz. Set point repeats after a 15 Gs, 10 millisecond duration | 0.54 kg | |
DXW-11-153-1가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | CE, cULus | 1.5 to 2.5 psi | 1/2 in NPT female Conduit with Screw Terminal block | IP65, NEMA Type 4X | Aluminum, 300 Stainless Steel, Polycarbonate | Brass, Fluoroelastomer | Differential | 10 psi | 2.5 psi | Consult Factory | Horizontal Ports | Intended for Indoor and Outdoor Use | 140 °F | 30 °F | 2 | 1/4 in | NPT Female | Up to 200 psi | 80% (Non-Condensing) | ± 2% | External Screw | SPDT snap switch, 5 A @ 125/250 VAC (~), 5 A res. @ 30 VDC (-) | 5 A @ 125/250 Vac, 5 A @ 30 Vdc | SPDT NO/NC, Selectable | Set point repeats after 2.5 Gs, 5 to 500 Hz. Set point repeats after a 15 Gs, 10 millisecond duration | 0.54 kg | |
DXW-11-153-4가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | CE, cULus | 6 to 8 psi | 1/2 in NPT female Conduit with Screw Terminal block | IP65, NEMA Type 4X | Aluminum, 300 Stainless Steel, Polycarbonate | Brass, Fluoroelastomer | Differential | 75 psi | 50 psi | Consult Factory | Horizontal Ports | Intended for Indoor and Outdoor Use | 140 °F | 30 °F | 2 | 1/4 in | NPT Female | Up to 200 psi | 80% (Non-Condensing) | ± 2% | External Screw | SPDT snap switch, 5 A @ 125/250 VAC (~), 5 A res. @ 30 VDC (-) | 5 A @ 125/250 Vac, 5 A @ 30 Vdc | SPDT NO/NC, Selectable | Set point repeats after 2.5 Gs, 5 to 500 Hz. Set point repeats after a 15 Gs, 10 millisecond duration | 0.54 kg |
스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.
