DwyerOmegaSeries-DX
DXW-11-153-3

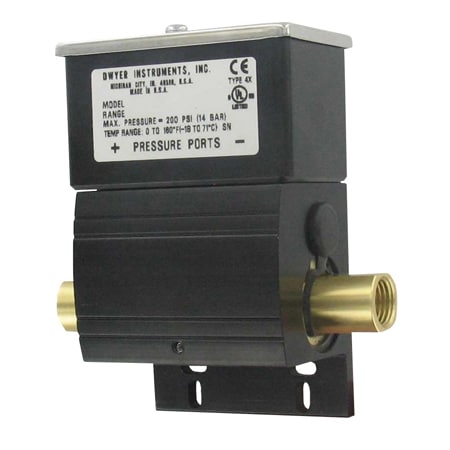

Differential pressure switch, brass and fluoroelastomer wetted materials, NEMA 4X, 1/4" NPT connections, SPDT, range 25 to 50 psi.
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 8 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:Dwyer a DwyerOmega Brand
Compliance:CE, cULus
Deadband:3.5 to 6 psi
Electrical Connection:1/2 in NPT female Conduit with Screw Terminal block
Enclosure Ratings:IP65, NEMA Type 4X
Materials:Aluminum, 300 Stainless Steel, Polycarbonate
Materials, Wetted:Brass, Fluoroelastomer
Measurement Pressure Type:Differential
Measurement Pressure, Max:50 psi
Measurement Pressure, Min:25 psi
Media Compatibility:Consult Factory
Mounting Orientation:Horizontal Ports
Operating Environment:Intended for Indoor and Outdoor Use
Operating Temperature, Max:140 °F
Operating Temperature, Min:30 °F
Pollution Degree:2
Process Connection Size:1/4 in
Process Connection Type:NPT Female
Proof Pressure:Up to 200 psi
Relative Humidity:80% (Non-Condensing)
Repeatability:± 2%
Set Point Adjustment:External Screw
Switch Note:SPDT snap switch, 5 A @ 125/250 VAC (~), 5 A res. @ 30 VDC (-)
Switch Rating:5 A @ 125/250 Vac, 5 A @ 30 Vdc
Switch Type:SPDT NO/NC, Selectable
Vibration and Shock:Set point repeats after 2.5 Gs, 5 to 500 Hz. Set point repeats after a 15 Gs, 10 millisecond duration
Weight:0.54 kg
