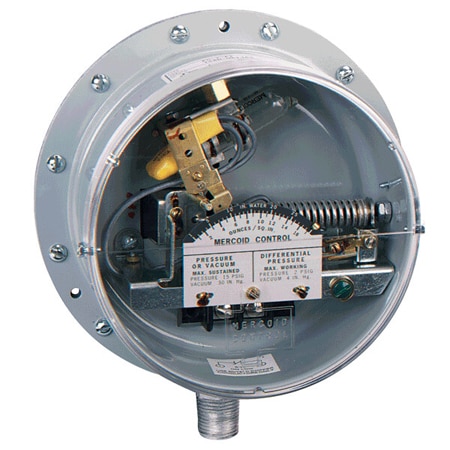

공기/가스를 위한 가스 압력 스위치, ±1% 반복성, SPST/SPDT 옵션
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 2개의 상품
| 제품 번호 / 가격 | Brand | Applications | Compliance | Deadband | Electrical Connection | Enclosure Ratings | Materials, Wetted | Measurement Pressure Type | Measurement Pressure, Max | Measurement Pressure, Min | Mounting Orientation | Operating Temperature, Max | Operating Temperature, Min | Process Connection Note | Process Connection Size | Process Connection Type | Proof Pressure | Repeatability | Set Point Adjustment | Switch Note | Switch Rating | Switch Type | Weight | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PG-7000-153-P2가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | Fuel and Gas | UL | 0.5 psi | 1/2 in NPT female Conduit with Screw Terminal block | None | Aluminum, Brass, Buna-N (NBR), Steel | Differential | 5 psi | 0.5 psi | Vertical | 180 °F | -10 °F | 1/2˝ male NPT and 1/8˝ female NPT used for single positive pressure or high differential pressure, 1/8˝ female NPT used for single vacuum or low differential pressure | 1/2 in x 1/8 in | NPT Male and Female | Up to 2 psi | ± 1% | External Screw | SPDT Snap: 15A @ 120 VAC, 8A @ 240 VAC, 0.5A @ 120 VDC, 0.25A @ 240 VDC | 15 A @ 120 Vac, 8A @ 240 Vac, 0.5A @ 120 Vdc, 0.25A @ 240 Vdc | SPDT NO/NC, Selectable | 2 kg | |
PG-7000-153-P1가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | Fuel and Gas | UL | 4 inH2O | 1/2 in NPT female Conduit with Screw Terminal block | None | Aluminum, Brass, Buna-N (NBR), Steel | Differential | 30 inH₂O | 1 inH₂O | Vertical | 180 °F | -10 °F | 1/2˝ male NPT and 1/8˝ female NPT used for single positive pressure or high differential pressure, 1/8˝ female NPT used for single vacuum or low differential pressure | 1/2 in x 1/8 in | NPT Male and Female | Up to 2 psi | ± 1% | External Screw | SPDT Snap: 15A @ 120 VAC, 8A @ 240 VAC, 0.5A @ 120 VDC, 0.25A @ 240 VDC | 15 A @ 120 Vac, 8A @ 240 Vac, 0.5A @ 120 Vdc, 0.25A @ 240 Vdc | SPDT NO/NC, Selectable | 2 kg |
