DwyerOmegaSeries-PG
PG-7000-153-P2

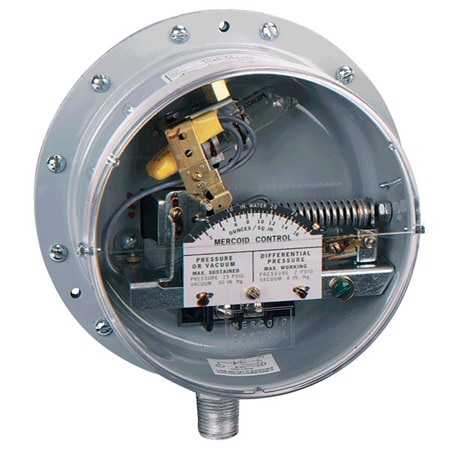

Gas pressure/differential pressure switch, range 0.5-5 psid (.03-.345 bar), max. deadband .5 psid (.035 bar), SPDT snap switch.
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 8 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:Dwyer a DwyerOmega Brand
Applications:Fuel and Gas
Compliance:UL
Deadband:0.5 psi
Electrical Connection:1/2 in NPT female Conduit with Screw Terminal block
Enclosure Ratings:None
Materials, Wetted:Aluminum, Brass, Buna-N (NBR), Steel
Measurement Pressure Type:Differential
Measurement Pressure, Max:5 psi
Measurement Pressure, Min:0.5 psi
Mounting Orientation:Vertical
Operating Temperature, Max:180 °F
Operating Temperature, Min:-10 °F
Process Connection Note:1/2˝ male NPT and 1/8˝ female NPT used for single positive pressure or high differential pressure, 1/8˝ female NPT used for single vacuum or low differential pressure
Process Connection Size:1/2 in x 1/8 in
Process Connection Type:NPT Male and Female
Proof Pressure:Up to 2 psi
Repeatability:± 1%
Set Point Adjustment:External Screw
Switch Note:SPDT Snap: 15A @ 120 VAC, 8A @ 240 VAC, 0.5A @ 120 VDC, 0.25A @ 240 VDC
Switch Rating:15 A @ 120 Vac, 8A @ 240 Vac, 0.5A @ 120 Vdc, 0.25A @ 240 Vdc
Switch Type:SPDT NO/NC, Selectable
Weight:2 kg
