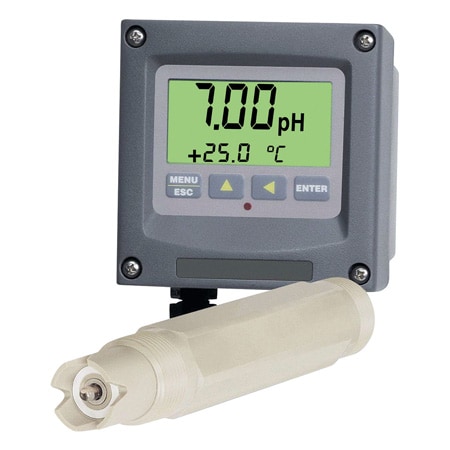

PHTX45-Series | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 2개의 상품

제품 번호 / 가격	Brand	Additional Features 1	Cable Type	Conduit Connection	Display Type	Display Type Note	EMC Standard	Electrical Output	Enclosure Material	Enclosure Ratings	Filter	Height	Impedance Input	Isolation	Keypad	Length	Measurement Pressure, Max	Measurement Type	Mounting	Non-Linearity	Operating Temperature, Max	Operating Temperature, Min	Relative Humidity	Repeatability	Sensitivity	Sensitivity Note	Sensor Temperature, Max	Sensor Temperature, Min	Sensor Voltage	Stability	Stability Note	Storage Temperature, Max	Storage Temperature, Min	Supply Power Effects	Supply Power Note	Supply Voltage	Transmission Distance	Warm Up Time	Weight	Width	Cable Length	Flow Indication Note	Materials, Wetted	Measurement Pressure, Min	PH Measurement Range	Response Time	Temperature Drift	수량 / 장바구니
PHE-45P1,384,860 원3 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Sensor	Insulated Shielded	-	-	-	-	4 to 20 mA	-	-	-	-	Greater than 1013 Ω	-	-	-	100 psi	pH, ORP	1 NPT convertible	± 0.1 %	95 °C	-5 °C	-	0.1% of or better	0.002 pH	0.002 pH, 0.2 mV (ORP) Displayed Parameters: 0.05% of span	110 °C	-10 °C	±500 mV	0.02 pH	0.02 pH or 2 mV per 24 hours, non-cumulative Displayed Parameters: 0.1% of span per 24 hours, non-cumulative	-	-	± 0.05% span	-	N/A	9.1 m no preamp, 914 m with preamp	4 sec	0.45 kg	-	3 m	3 m/sec Max	316 Stainless Steel, Ceramic, EDPM, FKM, Glass, PEEK, Titanium	0 psi	0 to 14.00 pH	4 seconds to 90% of step input at lowest setting	Span or zero, 0.02% of span/°C
PHTX-451,556,600 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Sensor	Insulated Twisted Shielded	2 PG-9, 1 in NPT Female	LCD	Large, high-contrast, Super-Twist (STN) LCD; 4-digit main display with sign, 19.1 mm (0.75") 7-segment characters; 12-digit secondary display, 7.6 mm (0.3") 5 x 7 dot matrix characters	EN61326-1	4 to 20 mA	Polycarbonate	IP65, NEMA Type 4X	Adjustable 1 to 99 seconds additional damping to 90% step input	112 mm	Greater than 1013 Ω	600 V galvanic isolation	4-key membrane type with tactile feedback, polycarbonate with UV coating, integral EMI/static shield and conductively coated window	89 mm	100 psi	pH, ORP	Wall, panel, pipe, Din rail, integral-sensor	± 0.1 %	60 °C	-20 °C	0 to 95% RH, non condensing	0.1% of or better	0.002 pH	0.002 pH, 0.2 mV (ORP) Displayed Parameters: 0.05% of span	110 °C	-10 °C	±500 mV	0.02 pH	0.02 pH or 2 mV per 24 hours, non-cumulative Displayed Parameters: 0.1% of span per 24 hours, non-cumulative	70 °C	-30 °C	± 0.05% span	16 to 35 Vdc (two-wire device)	16 to 35 Vdc	9.1 m no preamp, 914 m with preamp	4 sec	0.45 kg	112 mm	-	-	-	-	-	-	-

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Additional Features 1

Cable Type

Conduit Connection

Display Type

Display Type Note

EMC Standard

Electrical Output

Enclosure Material

Enclosure Ratings

Filter

Height

Impedance Input

Isolation

Keypad

Length

Measurement Pressure, Max

Measurement Type

Mounting

Non-Linearity

Operating Temperature, Max

Operating Temperature, Min

Relative Humidity

Repeatability

Sensitivity

Sensitivity Note

Sensor Temperature, Max

Sensor Temperature, Min

Sensor Voltage

Stability

Stability Note

Storage Temperature, Max

Storage Temperature, Min

Supply Power Effects

Supply Power Note

Supply Voltage

Transmission Distance

Warm Up Time

Weight

Width

Cable Length

Flow Indication Note

Materials, Wetted

Measurement Pressure, Min

PH Measurement Range

Response Time

Temperature Drift

수량 / 장바구니

PHE-45P1,384,860 원3 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Sensor

Insulated Shielded

4 to 20 mA

Greater than 1013 Ω

100 psi

pH, ORP

1 NPT convertible

± 0.1 %

95 °C

-5 °C

0.1% of or better

0.002 pH

0.002 pH, 0.2 mV (ORP) Displayed Parameters: 0.05% of span

110 °C

-10 °C

±500 mV

0.02 pH

0.02 pH or 2 mV per 24 hours, non-cumulative Displayed Parameters: 0.1% of span per 24 hours, non-cumulative

± 0.05% span

N/A

9.1 m no preamp, 914 m with preamp

4 sec

0.45 kg

3 m

3 m/sec Max

316 Stainless Steel, Ceramic, EDPM, FKM, Glass, PEEK, Titanium

0 psi

0 to 14.00 pH

4 seconds to 90% of step input at lowest setting

Span or zero, 0.02% of span/°C

PHTX-451,556,600 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Sensor

Insulated Twisted Shielded

2 PG-9, 1 in NPT Female

LCD

Large, high-contrast, Super-Twist (STN) LCD; 4-digit main display with sign, 19.1 mm (0.75") 7-segment characters; 12-digit secondary display, 7.6 mm (0.3") 5 x 7 dot matrix characters

EN61326-1

4 to 20 mA

Polycarbonate

IP65, NEMA Type 4X

Adjustable 1 to 99 seconds additional damping to 90% step input

112 mm

Greater than 1013 Ω

600 V galvanic isolation

4-key membrane type with tactile feedback, polycarbonate with UV coating, integral EMI/static shield and conductively coated window

89 mm

100 psi

pH, ORP

Wall, panel, pipe, Din rail, integral-sensor

± 0.1 %

60 °C

-20 °C

0 to 95% RH, non condensing
