DwyerOmegaPHTX45-Series

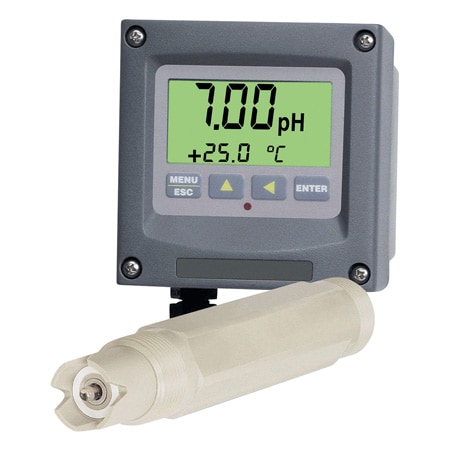

PHE-45P
SENSOR FOR PHTX-45
- 가격
- 1,384,860 원
- VAT 10%
- 138,486 원
- 총 금액
- 1,523,346 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 3 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Additional Features 1:Sensor
Cable Length:3 m
Cable Type:Insulated Shielded
Electrical Output:4 to 20 mA
Flow Indication Note:3 m/sec Max
Impedance Input:Greater than 1013 Ω
Materials, Wetted:316 Stainless Steel, Ceramic, EDPM, FKM, Glass, PEEK, Titanium
Measurement Pressure, Max:100 psi
Measurement Pressure, Min:0 psi
Measurement Type:pH, ORP
Mounting:1 NPT convertible
Non-Linearity:± 0.1 %
Operating Temperature, Max:95 °C
Operating Temperature, Min:-5 °C
PH Measurement Range:0 to 14.00 pH
Repeatability:0.1% of or better
Response Time:4 seconds to 90% of step input at lowest setting
Sensitivity:0.002 pH
Sensitivity Note:0.002 pH, 0.2 mV (ORP) Displayed Parameters: 0.05% of span
Sensor Temperature, Max:110 °C
Sensor Temperature, Min:-10 °C
Sensor Voltage:±500 mV
Stability:0.02 pH
Stability Note:0.02 pH or 2 mV per 24 hours, non-cumulative Displayed Parameters: 0.1% of span per 24 hours, non-cumulative
Supply Power Effects:± 0.05% span
Supply Voltage:N/A
Temperature Drift:Span or zero, 0.02% of span/°C
Transmission Distance:9.1 m no preamp, 914 m with preamp
Warm Up Time:4 sec
Weight:0.45 kg
