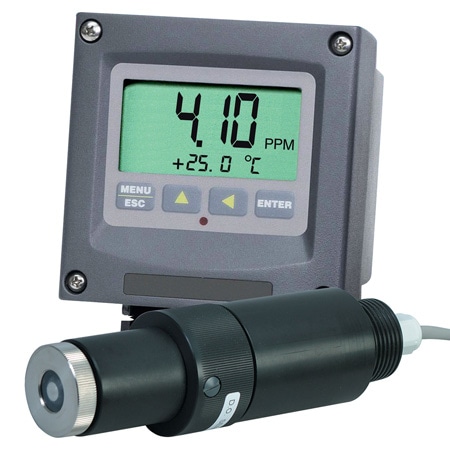

DOTX45-Series | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 3개의 상품

제품 번호 / 가격	Brand	Additional Features 1	Conduit Connection	Control Mode	Display Type	Display Type Note	EMC Standard	Electrical Output	Enclosure Material	Enclosure Ratings	Filter	Hazardous Classification	Height	Input Type	Isolation	Keypad	Length	Measurement Type	Measuring Range	Mounting	Non-Linearity	Operating Temperature, Max	Operating Temperature, Min	Relative Humidity	Repeatability	Response Time	Sensitivity	Sensor Note	Stability	Stability Note	Storage Temperature, Max	Storage Temperature, Min	Supply Power Effects	Supply Voltage	Temperature Compensation	Temperature Drift	Transmission Distance	Warm Up Time	Weight	Width	Cable Length	Cable Type	Electrolytes	Flow Indication Note	Materials, Wetted	Measurement Pressure, Min	Sensor Type
DOTX-45-115VAC-R22,456,810 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Transmitter	2 PG-9, 1 in NPT Female	Two SPDT, 6 A @250 Vac, 5 A @24 Vdc	LCD	Large, high-contrast, Super-Twist (STN) LCD; 4-digit main display with sign, 19.1 mm (0.75") 7-segment characters; 12-digit secondary display, 7.6 mm (0.3") 5 x 7 dot matrix characters	EN61326-1	4 to 20 mA	Polycarbonate	IP65, NEMA Type 4X	Adjustable 1 to 99 seconds additional damping to 90% step input	Designed for hazardous and non-hazardous areas	112 mm	RTD	600 V galvanic isolation	4-key membrane type with tactile feedback	89 mm	Dissolved Oxygen	0 to 40 ppm	Wall, panel, pipe, DIN rail, integral-sensor	± 0.1 %	50 °C	0 °C	0 to 95% RH, non condensing	0.1% of span or better	4 seconds to 90% of step input at lowest setting	0.05% of span	Saturation: 0 to 200%	0.001	0.1% of span per 24 hours, non-cumulative	70 °C	-30 °C	± 0.05% span	16 to 35 Vdc	Pt1000 element; sensor is internally compensated for membrane permeability changes with temperature	Span or zero, 0.02% of span/°C	305 m	4 sec	0.45 kg	112 mm	-	-	-	-	-	-	-
DOE-45PA1,730,710 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Transmitter	-	N/A	-	-	-	-	-	-	-	Designed for hazardous and non-hazardous areas	-	RTD	-	-	-	Dissolved Oxygen	0 to 40 ppm	Submersion 1 NPT	± 0.1 %	55 °C	-5 °C	-	0.1% of span or better	90% in less than 3 minutes	0.05% of span	Membrane Thickness: 50 microns	0.001	0.1% of span per 24 hours, non-cumulative	-	-	± 0.05% span	N/A	Pt100	-	305 m	4 sec	0.45 kg	-	9.1 m	Insulated Shielded	KCI	6 mm/sec Min	316 Stainless Steel, FKM, Noryl	0 psi	Membrane covered galvanic
DOTX-451,792,070 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Transmitter	2 PG-9, 1 in NPT Female	N/A	LCD	Large, high-contrast, Super-Twist (STN) LCD; 4-digit main display with sign, 19.1 mm (0.75") 7-segment characters; 12-digit secondary display, 7.6 mm (0.3") 5 x 7 dot matrix characters	EN61326-1	4 to 20 mA	Polycarbonate	IP65, NEMA Type 4X	Adjustable 1 to 99 seconds additional damping to 90% step input	Designed for hazardous and non-hazardous areas	112 mm	RTD	600 V galvanic isolation	4-key membrane type with tactile feedback	89 mm	Dissolved Oxygen	0 to 40 ppm	Wall, panel, pipe, DIN rail, integral-sensor	± 0.1 %	50 °C	0 °C	0 to 95% RH, non condensing	0.1% of span or better	4 seconds to 90% of step input at lowest setting	0.05% of span	Saturation: 0 to 200%	0.001	0.1% of span per 24 hours, non-cumulative	70 °C	-30 °C	± 0.05% span	16 to 35 Vdc	Pt1000 element; sensor is internally compensated for membrane permeability changes with temperature	Span or zero, 0.02% of span/°C	305 m	4 sec	0.45 kg	112 mm	-	-	-	-	-	-	-

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Additional Features 1

Conduit Connection

Control Mode

Display Type

Display Type Note

EMC Standard

Electrical Output

Enclosure Material

Enclosure Ratings

Filter

Hazardous Classification

Height

Input Type

Isolation

Keypad

Length

Measurement Type

Measuring Range

Mounting

Non-Linearity

Operating Temperature, Max

Operating Temperature, Min

Relative Humidity

Repeatability

Response Time

Sensitivity

Sensor Note

Stability

Stability Note

Storage Temperature, Max

Storage Temperature, Min

Supply Power Effects

Supply Voltage

Temperature Compensation

Temperature Drift

Transmission Distance

Warm Up Time

Weight

Width

Cable Length

Cable Type

Electrolytes

Flow Indication Note

Materials, Wetted

Measurement Pressure, Min

Sensor Type

수량 / 장바구니

DOTX-45-115VAC-R22,456,810 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Transmitter

2 PG-9, 1 in NPT Female

Two SPDT, 6 A @250 Vac, 5 A @24 Vdc

LCD

Large, high-contrast, Super-Twist (STN) LCD; 4-digit main display with sign, 19.1 mm (0.75") 7-segment characters; 12-digit secondary display, 7.6 mm (0.3") 5 x 7 dot matrix characters

EN61326-1

4 to 20 mA

Polycarbonate

IP65, NEMA Type 4X

Adjustable 1 to 99 seconds additional damping to 90% step input

Designed for hazardous and non-hazardous areas

112 mm

RTD

600 V galvanic isolation

4-key membrane type with tactile feedback

89 mm

Dissolved Oxygen

0 to 40 ppm

Wall, panel, pipe, DIN rail, integral-sensor

± 0.1 %

50 °C

0 °C

0 to 95% RH, non condensing

0.1% of span or better

4 seconds to 90% of step input at lowest setting

0.05% of span

Saturation: 0 to 200%

0.001

0.1% of span per 24 hours, non-cumulative

70 °C

-30 °C

± 0.05% span

16 to 35 Vdc

Pt1000 element; sensor is internally compensated for membrane permeability changes with temperature

Span or zero, 0.02% of span/°C

305 m

4 sec

0.45 kg

112 mm

DOE-45PA1,730,710 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Transmitter

N/A

Designed for hazardous and non-hazardous areas

RTD

Dissolved Oxygen

0 to 40 ppm

Submersion 1 NPT

± 0.1 %

55 °C

-5 °C

0.1% of span or better

90% in less than 3 minutes

0.05% of span

Membrane Thickness: 50 microns

0.001

0.1% of span per 24 hours, non-cumulative

± 0.05% span

N/A

Pt100

305 m

4 sec

0.45 kg

9.1 m

Insulated Shielded

KCI

6 mm/sec Min

316 Stainless Steel, FKM, Noryl

0 psi

Membrane covered galvanic

DOTX-451,792,070 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Transmitter

2 PG-9, 1 in NPT Female

N/A

LCD

Large, high-contrast, Super-Twist (STN) LCD; 4-digit main display with sign, 19.1 mm (0.75") 7-segment characters; 12-digit secondary display, 7.6 mm (0.3") 5 x 7 dot matrix characters

EN61326-1

4 to 20 mA

Polycarbonate

IP65, NEMA Type 4X

Adjustable 1 to 99 seconds additional damping to 90% step input

Designed for hazardous and non-hazardous areas

112 mm

RTD

600 V galvanic isolation

4-key membrane type with tactile feedback

89 mm

Dissolved Oxygen

0 to 40 ppm

Wall, panel, pipe, DIN rail, integral-sensor

± 0.1 %

50 °C

0 °C

0 to 95% RH, non condensing

0.1% of span or better

4 seconds to 90% of step input at lowest setting

0.05% of span

Saturation: 0 to 200%

0.001

0.1% of span per 24 hours, non-cumulative

70 °C

-30 °C

± 0.05% span

16 to 35 Vdc

Pt1000 element; sensor is internally compensated for membrane permeability changes with temperature

Span or zero, 0.02% of span/°C

305 m

4 sec

0.45 kg

112 mm
