DwyerOmegaDOTX45-Series

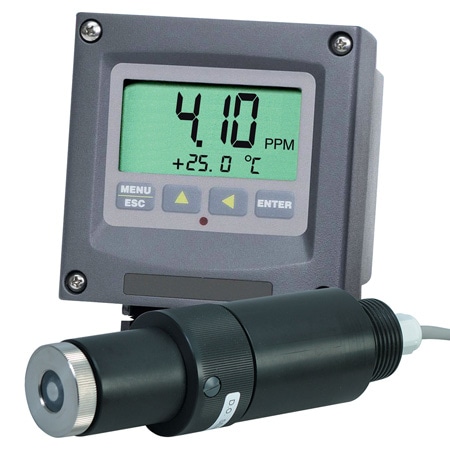

DOE-45PA
- 가격
- 1,730,710 원
- VAT 10%
- 173,071 원
- 총 금액
- 1,903,781 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 7 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Additional Features 1:Transmitter
Cable Length:9.1 m
Cable Type:Insulated Shielded
Control Mode:N/A
Electrolytes:KCI
Flow Indication Note:6 mm/sec Min
Hazardous Classification:Designed for hazardous and non-hazardous areas
Input Type:RTD
Materials, Wetted:316 Stainless Steel, FKM, Noryl
Measurement Pressure, Min:0 psi
Measurement Type:Dissolved Oxygen
Measuring Range:0 to 40 ppm
Mounting:Submersion 1 NPT
Non-Linearity:± 0.1 %
Operating Temperature, Max:55 °C
Operating Temperature, Min:-5 °C
Repeatability:0.1% of span or better
Response Time:90% in less than 3 minutes
Sensitivity:0.05% of span
Sensor Note:Membrane Thickness: 50 microns
Sensor Type:Membrane covered galvanic
Stability:0.001
Stability Note:0.1% of span per 24 hours, non-cumulative
Supply Power Effects:± 0.05% span
Supply Voltage:N/A
Temperature Compensation:Pt100
Transmission Distance:305 m
Warm Up Time:4 sec
Weight:0.45 kg
