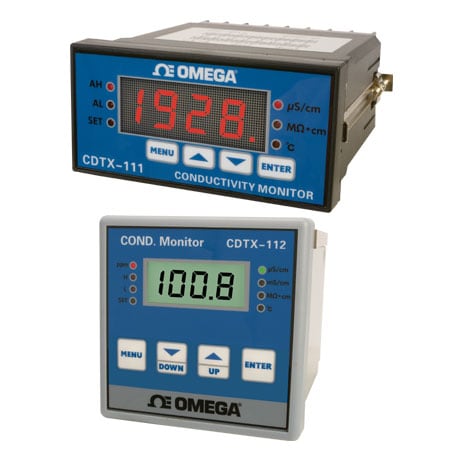

CDTX-111-CDTX-112-Series

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 1개의 상품

제품 번호 / 가격	Brand	Accuracy	Additional Features 1	Altitude,Max	Conductivity Measurement	Cutout Dimensions	Display Size	Display Type	Electrical Output	Enclosure Ratings	Frequency	Height	Impedance	Length	Mounting Orientation	Number of Relays	Operating Humidity	Operating Range Note	Operating Temperature, Max	Operating Temperature, Min	Output Detail	Process Temperature, Max	Process Temperature, Min	Relay Note	Relay Output	Resolution	Supply Voltage	Temperature Accuracy	Weight	Width	수량 / 장바구니
CDTX-112889,770 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 1 %	1/4" DIN, Sensors Sold Separately	3000 m	0 to 999.9 μS/cm, 0 to 9999 μS/cm, 0 to 100mS/cm, 0 to 600 mS/cm	92 × 92 mm	13 mm (0.51 in)	LCD	4 to 20 mA	IP54	50/60 Hz	96 mm	750 Ω	110 mm	Panel Mount	2	5 to 95% RH	Resistivity: 0 to 18 MΩ or 0 to 19.99 μS/cm	55 °C	-10 °C	Type: Isolated 4 to 20 mA Range: Selectable zero and span Accuracy: ±0.02 mA	0 °C	100 °C	2 programmable , 10 A Control Type: On/off Relay Set Point Hysteresis: User programmable	Programmable Relays	0.01 to 0.01 mS/cm; Temperature: 0.1°C (32.1°F)	110/220 Vac	± 0.2 °C	650 g	96 mm

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Accuracy

Additional Features 1

Altitude,Max

Conductivity Measurement

Cutout Dimensions

Display Size

Display Type

Electrical Output

Enclosure Ratings

Frequency

Height

Impedance

Length

Mounting Orientation

Number of Relays

Operating Humidity

Operating Range Note

Operating Temperature, Max

Operating Temperature, Min

Output Detail

Process Temperature, Max

Process Temperature, Min

Relay Note

Relay Output

Resolution

Supply Voltage

Temperature Accuracy

Weight

Width

수량 / 장바구니

CDTX-112889,770 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 1 %

1/4" DIN, Sensors Sold Separately

3000 m

0 to 999.9 μS/cm, 0 to 9999 μS/cm, 0 to 100mS/cm, 0 to 600 mS/cm

92 × 92 mm

13 mm (0.51 in)

LCD

4 to 20 mA

IP54

50/60 Hz

96 mm

750 Ω

110 mm

Panel Mount

5 to 95% RH

Resistivity: 0 to 18 MΩ or 0 to 19.99 μS/cm

55 °C

-10 °C

Type: Isolated 4 to 20 mA Range: Selectable zero and span Accuracy: ±0.02 mA

0 °C

100 °C

2 programmable , 10 A Control Type: On/off Relay Set Point Hysteresis: User programmable

Programmable Relays

0.01 to 0.01 mS/cm; Temperature: 0.1°C (32.1°F)

110/220 Vac

± 0.2 °C

650 g

96 mm
