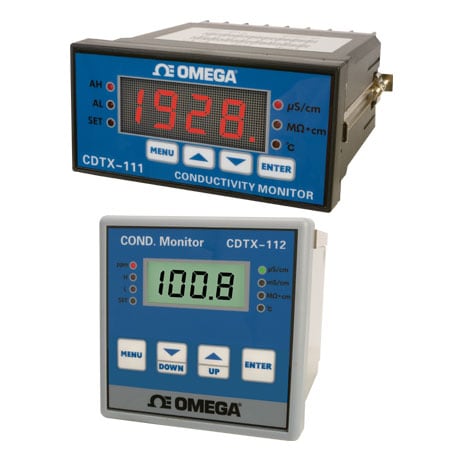

DwyerOmegaCDTX-111-CDTX-112-Series
CDTX-112
Conductivity and Temperature Monitor and Controller
- 가격
- 889,770 원
- VAT 10%
- 88,977 원
- 총 금액
- 978,747 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 7 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 1 %
Additional Features 1:1/4" DIN, Sensors Sold Separately
Altitude,Max:3000 m
Conductivity Measurement:0 to 999.9 μS/cm, 0 to 9999 μS/cm, 0 to 100mS/cm, 0 to 600 mS/cm
Cutout Dimensions:92 × 92 mm
Display Size:13 mm (0.51 in)
Display Type:LCD
Electrical Output:4 to 20 mA
Enclosure Ratings:IP54
Frequency:50/60 Hz
Height:96 mm
Impedance:750 Ω
Length:110 mm
Mounting Orientation:Panel Mount
Number of Relays:2
Operating Humidity:5 to 95% RH
Operating Range Note:Resistivity: 0 to 18 MΩ or 0 to 19.99 μS/cm
Operating Temperature, Max:55 °C
Operating Temperature, Min:-10 °C
Output Detail:Type: Isolated 4 to 20 mA Range: Selectable zero and span Accuracy: ±0.02 mA
Process Temperature, Max:0 °C
Process Temperature, Min:100 °C
Relay Note:2 programmable , 10 A Control Type: On/off Relay Set Point Hysteresis: User programmable
Relay Output:Programmable Relays
Resolution:0.01 to 0.01 mS/cm; Temperature: 0.1°C (32.1°F)
Supply Voltage:110/220 Vac
Temperature Accuracy:± 0.2 °C
Weight:650 g
Width:96 mm
