다변수 컨트롤러 pH, ORP, 접촉 전도도, 유량
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 1개의 상품
| 제품 번호 / 가격 | Brand | Additional Features 1 | Calibration Note | Compliance | Compliance Note | Conductivity Measurement | Cutout Dimensions | Display Type | Electrical Output | Enclosure Ratings | Flow Indication Note | Height | Input Range Note | Length | Mounting Orientation | Number of Relays | ORP Measurement Range | Operating Humidity | Operating Temperature, Max | Operating Temperature, Min | Output Detail | PH Measurement Range | Power Consumption | Process Temperature, Max | Process Temperature, Min | Relay Note | Relay Output | Sensing Element | Sensing Element Note | Sensor Type Note | Supply Voltage | Temperature Compensation | Temperature Measurement Note | Weight | Width | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

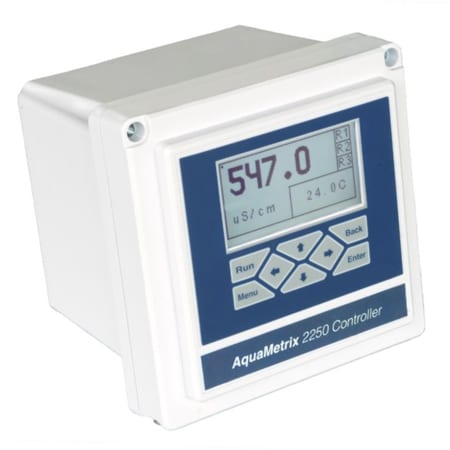

AM-22502,367,130 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | PID Control, Sensors Sold Separately | pH Calibration modes: Automatic or Manual 2 or 3 points; ORP Calibration modes: Manual 1 point; Conductivity Calibration modes: Up to 16 points; Flow Calibration modes: K factor input | ETL | ETL (US and Canada) and CE pending | 0.055 to 500,000 µS/cm | 5.4 x 5.4 in | LCD | 4 to 20 mA | NEMA Type 4X | 0 to 999 in any units | 5.5 in | pH Sensor Input: -600 to +600 mV; ORP Sensor Input: -999 to +999 mV; Conductivity Sensor Input: 0 to 9999 Ω; Flow Sensor Input: 0 to 2000 Hz | 5 in | Panel Mount, Wall Mount | 3 | -1000 to +1000 mV | 0 to 90% RH | 120 °C | -20 °C | Two 4-20 mA outputs, Scalable 4-20mA with PID (Process), Scalable 4-20mA (Process or Temperature), Optically isolated. Max Load - 800 Ω | 0 to 14.00 pH | 0.2 A @ 115 Vac or 15 W | -20 °C | 70 °C | 3 Dry contact relay with snubber circuit, 10A @ 120/240 VAC or 8A @ 30 VDC (Resistive Load), 5A @ 120/240 VAC or 4A @30 VDC (Inductive load) Relay Modes: Rising/Falling/In Range. Options: Relay Delay, Cycle, Overfeed Timer, Override, One relay can be triggered by temperature or flow totalizer. | Dry contact relay | 100/1000 Ω RTD, 300/3K Ω NTC or none | PH, ORP, Conductivity: 100, 1000 Ω, RTD 300, 3K Ω NTC or none | pH Sensor: 6-Wire Differential or Combination; ORP Sensor: 6-Wire Differential or Combination; Conductivity Sensor: 4-Wire contacting : Any cell constant between 0.01 and 100; Flow Sensor: Pulse output: Paddle-wheel, Magmete | 120/240 Vac | Automatic: pH ;Automatic or Manual: Conductivity ;Display temperature: ORP ;Display Flow Totalizer: Flow | pH, ORP, Conductivity : -20 to 120 °C, Flow : Flow Totalizer 0 to 999 in any units | 2 lb | 5.5 in |
