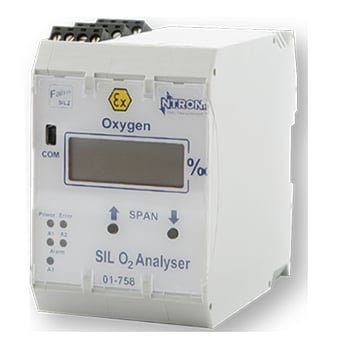

SIL2-capable-Oxygen-Analyzer

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 1개의 상품

제품 번호 / 가격	Accuracy	Accuracy Detail	Applications	Cable Length	Calibration Interval	Connection Note	Control Output	Data Interface	Display Type	Electrical Output	Enclosure Material	Enclosure Ratings	Flow Rate Note	Gas Measurement Range	Indicator Type	Length	Lifetime	Operating Humidity	Operating Temperature, Max	Operating Temperature, Min	Output Detail	Power Consumption	Process Connection Size	Process Connection Type	Relay Output	Resolution	Response Time	Sensitivity	Series ID	Shelf Life	Supply Power Type	Supply Voltage	Width	수량 / 장바구니
06-912가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	± 0.01 %	+/- 0.02 % @ 1 %, +/- 0.01 % @ 0.1 %	Chemical Refineries, Gases, Industrial and Manufacturing, Laboratories, Pharmaceutical	5 m	6 to 12 months	Intrinsically Safe Connection: Voltage Uo = 6 V DC Current intensity Io = 0.2 mA Power Po = 0.3 mW Max. outer inductivity Lo = 1000 mH Max. outer capacity Co = 10 μF	Alarm	RS485	LCD	4 to 20 mA	PBT	IP20	100 to 500 ml/min (250 ml/min optimal) in a vented atmosphere	0 to 25 %	LCD and LED alerts on analyzer	70 mm	up to 24 mo	0 to 95% RH, non-condensing	50 °C	-20 °C	Relay Contact Outputs RL1 / RL2 / Alarm: Switching power max.: 62.5 V A resp max. 30 W Switching voltage: Um 125 V AC/110 V DC Min. current 10 uA DC Min. voltage 10 mV DC According to IEC 947-5-1 resp. EN 60947 Transistor Output (DO): Switching parameters: < 28 V @ < 50 mA	1.5 W	2 in	Tri-Clamp	1 A @ 30 Vdc, 0.5 A @ 125 Vac	0.01%	<20 seconds, typically 12 seconds	0.02 % +/- 0.01	SIL2-capable-Oxygen-Analyzer	12 months	DC	24 Vdc	100 mm

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Accuracy

Accuracy Detail

Applications

Cable Length

Calibration Interval

Connection Note

Control Output

Data Interface

Display Type

Electrical Output

Enclosure Material

Enclosure Ratings

Flow Rate Note

Gas Measurement Range

Indicator Type

Length

Lifetime

Operating Humidity

Operating Temperature, Max

Operating Temperature, Min

Output Detail

Power Consumption

Process Connection Size

Process Connection Type

Relay Output

Resolution

Response Time

Sensitivity

Series ID

Shelf Life

Supply Power Type

Supply Voltage

Width

수량 / 장바구니

06-912가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

± 0.01 %

+/- 0.02 % @ 1 %, +/- 0.01 % @ 0.1 %

Chemical Refineries, Gases, Industrial and Manufacturing, Laboratories, Pharmaceutical

5 m

6 to 12 months

Intrinsically Safe Connection: Voltage Uo = 6 V DC Current intensity Io = 0.2 mA Power Po = 0.3 mW Max. outer inductivity Lo = 1000 mH Max. outer capacity Co = 10 μF

Alarm

RS485

LCD

4 to 20 mA

PBT

IP20

100 to 500 ml/min (250 ml/min optimal) in a vented atmosphere

0 to 25 %

LCD and LED alerts on analyzer

70 mm

up to 24 mo

0 to 95% RH, non-condensing

50 °C

-20 °C

Relay Contact Outputs RL1 / RL2 / Alarm: Switching power max.: 62.5 V A resp max. 30 W Switching voltage: Um 125 V AC/110 V DC Min. current 10 uA DC Min. voltage 10 mV DC According to IEC 947-5-1 resp. EN 60947 Transistor Output (DO): Switching parameters: < 28 V @ < 50 mA

1.5 W

2 in

Tri-Clamp

1 A @ 30 Vdc, 0.5 A @ 125 Vac

0.01%

<20 seconds, typically 12 seconds

0.02 % +/- 0.01

SIL2-capable-Oxygen-Analyzer

12 months

24 Vdc

100 mm
