DwyerOmegaSIL2-capable-Oxygen-Analyzer

06-912

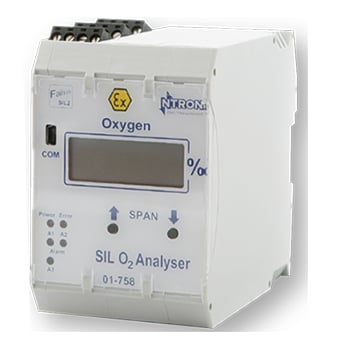

SILO2 Oxygen analyzer with Solid State-Electrochemical Sensor, 0 to 25% range, 2 inch Tri-clamp connection, ±0.03% accuracy. SIL2-capable system designed for inertization in hazardous industrial environments.

판매 가격: 가격 문의

재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.

무료 배송 10만원 이상

납기: 9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

연구비카드 사용가능

제품 사양

Accuracy:± 0.01 %

Accuracy Detail:+/- 0.02 % @ 1 %, +/- 0.01 % @ 0.1 %

Applications:Chemical Refineries, Gases, Industrial and Manufacturing, Laboratories, Pharmaceutical

Cable Length:5 m

Calibration Interval:6 to 12 months

Connection Note:Intrinsically Safe Connection: Voltage Uo = 6 V DC Current intensity Io = 0.2 mA Power Po = 0.3 mW Max. outer inductivity Lo = 1000 mH Max. outer capacity Co = 10 μF

Control Output:Alarm

Data Interface:RS485

Display Type:LCD

Electrical Output:4 to 20 mA

Enclosure Material:PBT

Enclosure Ratings:IP20

Flow Rate Note:100 to 500 ml/min (250 ml/min optimal) in a vented atmosphere

Gas Measurement Range:0 to 25 %

Indicator Type:LCD and LED alerts on analyzer

Length:70 mm

Lifetime:up to 24 mo

Operating Humidity:0 to 95% RH, non-condensing

Operating Temperature, Max:50 °C

Operating Temperature, Min:-20 °C

Output Detail:Relay Contact Outputs RL1 / RL2 / Alarm: Switching power max.: 62.5 V A resp max. 30 W Switching voltage: Um 125 V AC/110 V DC Min. current 10 uA DC Min. voltage 10 mV DC According to IEC 947-5-1 resp. EN 60947 Transistor Output (DO): Switching parameters: < 28 V @ < 50 mA

Power Consumption:1.5 W

Process Connection Size:2 in

Process Connection Type:Tri-Clamp

Relay Output:1 A @ 30 Vdc, 0.5 A @ 125 Vac

Resolution:0.01%

Response Time:<20 seconds, typically 12 seconds

Sensitivity:0.02 % +/- 0.01

Series ID:SIL2-capable-Oxygen-Analyzer

Shelf Life:12 months

Supply Power Type:DC

Supply Voltage:24 Vdc

Width:100 mm
