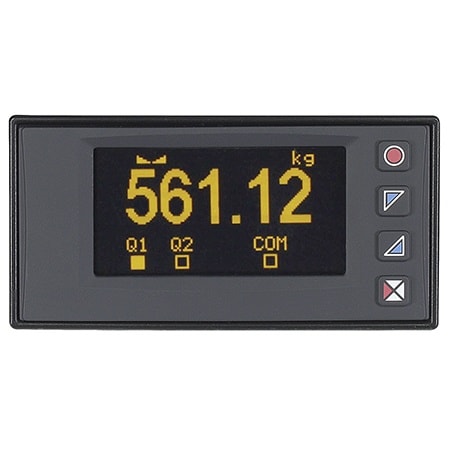

DP400S-Series | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 1개의 상품

제품 번호 / 가격	Brand	Calibration Note	Control Output	Cutout Dimensions	Data Interface	Data Interface Note	Display Note	Display Type	Electrical Connection	Enclosure Ratings	Form factor	Height	Impedance Input	Input Type	Internal Resolution	Materials	Measurement Type	Number of Inputs	Number of Relays	Operating Temperature, Max	Operating Temperature, Min	Output Detail	Output Signal	Power Consumption	Relative Humidity	Sampling Rate	Supply Power Note	Supply Power Type	Supply Voltage	Weight	Width	수량 / 장바구니
DP400S961,450 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Calibration with 2-points sampling value, Calibration on full-scale % value, Calibration value mV/V	Relay	1.772 x 3.6 in	RS485	Serial connectivity relies on RS485 and Modbus-RTU protocol.	Backlighting graphic OLED 2.42’’ (DP400S), Yellow display 128 x 64 pixel	OLED	Removable Screw Terminal	IP54	1/8 DIN	1.8 in	>1 MΩ	Strain	16 bit	Polycarbonate	Strain	1	2	40 °C	0 °C	Analog Output: Config. as 0..20mA or 4..20mA, Resolution 16bit +/-0.2% ( F.s.), Relay outputs: 2 Relays, Contacts 2A - 250 Vac.Resistive charge.	Current, Voltage	8 VA	35 ~ 95RH% (non condensing)	1200 Hz	Extended power supply range 24..230 Vac/Vdc ± 15% 50/60 Hz	AC/DC	24 to 230 Vac/Vdc	165 g	3.7 in

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Calibration Note

Control Output

Cutout Dimensions

Data Interface

Data Interface Note

Display Note

Display Type

Electrical Connection

Enclosure Ratings

Form factor

Height

Impedance Input

Input Type

Internal Resolution

Materials

Measurement Type

Number of Inputs

Number of Relays

Operating Temperature, Max

Operating Temperature, Min

Output Detail

Output Signal

Power Consumption

Relative Humidity

Sampling Rate

Supply Power Note

Supply Power Type

Supply Voltage

Weight

Width

수량 / 장바구니

DP400S961,450 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Calibration with 2-points sampling value, Calibration on full-scale % value, Calibration value mV/V

Relay

1.772 x 3.6 in

RS485

Serial connectivity relies on RS485 and Modbus-RTU protocol.

Backlighting graphic OLED 2.42’’ (DP400S), Yellow display 128 x 64 pixel

OLED

Removable Screw Terminal

IP54

1/8 DIN

1.8 in

>1 MΩ

Strain

16 bit

Polycarbonate

Strain

40 °C

0 °C

Analog Output: Config. as 0..20mA or 4..20mA, Resolution 16bit +/-0.2% ( F.s.), Relay outputs: 2 Relays, Contacts 2A - 250 Vac.Resistive charge.

Current, Voltage

8 VA

35 ~ 95RH% (non condensing)

1200 Hz

Extended power supply range 24..230 Vac/Vdc ± 15% 50/60 Hz

AC/DC

24 to 230 Vac/Vdc

165 g

3.7 in
