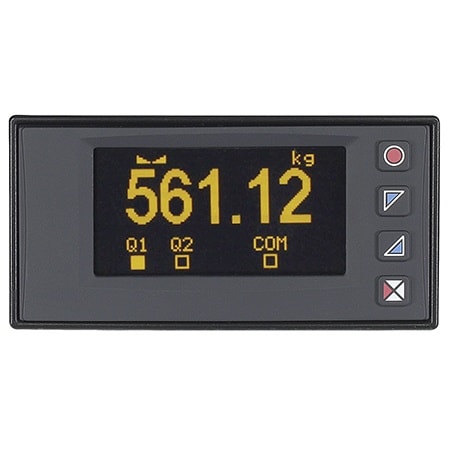

DwyerOmegaDP400S-Series
DP400S
- 가격
- 961,450 원
- VAT 10%
- 96,145 원
- 총 금액
- 1,057,595 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Calibration Note:Calibration with 2-points sampling value, Calibration on full-scale % value, Calibration value mV/V
Control Output:Relay
Cutout Dimensions:1.772 x 3.6 in
Data Interface:RS485
Data Interface Note:Serial connectivity relies on RS485 and Modbus-RTU protocol.
Display Note:Backlighting graphic OLED 2.42’’ (DP400S), Yellow display 128 x 64 pixel
Display Type:OLED
Electrical Connection:Removable Screw Terminal
Enclosure Ratings:IP54
Form factor:1/8 DIN
Height:1.8 in
Impedance Input:>1 MΩ
Input Type:Strain
Internal Resolution:16 bit
Materials:Polycarbonate
Measurement Type:Strain
Number of Inputs:1
Number of Relays:2
Operating Temperature, Max:40 °C
Operating Temperature, Min:0 °C
Output Detail:Analog Output: Config. as 0..20mA or 4..20mA, Resolution 16bit +/-0.2% ( F.s.), Relay outputs: 2 Relays, Contacts 2A - 250 Vac.Resistive charge.
Output Signal:Current, Voltage
Power Consumption:8 VA
Relative Humidity:35 ~ 95RH% (non condensing)
Sampling Rate:1200 Hz
Supply Power Note:Extended power supply range 24..230 Vac/Vdc ± 15% 50/60 Hz
Supply Power Type:AC/DC
Supply Voltage:24 to 230 Vac/Vdc
Weight:165 g
Width:3.7 in
