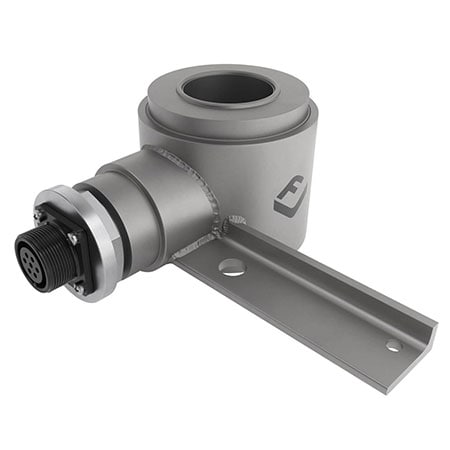

CC1 | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 2개의 상품

제품 번호 / 가격	Brand	Calibration Option	Electrical Connection	Electrical Output	Enclosure Ratings	Force Type	Height	Hysteresis	Input Resistance	Insulation Resistance	Insulation Resistance Note	Load Cell Capacity	Load Cell Type	Materials	Non-Linearity	Operating Temperature, Max	Operating Temperature, Min	Outer Diameter	Output Resistance	Process Temperature, Max	Process Temperature, Min	Repeatability	Safe Overload	Supply Voltage	Temperature Effect on Sensitivity	Temperature Effect on Zero Output	Through Hole Dimension	Weight	Wiring/Connector Table	Zero/Balance Error	수량 / 장바구니
2X-0030251,199,940 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	NIST	Molex 1261 Series 6-Pin Female	2 mV/V	IP68	Compression	3.23 in	≤ ± 0.05% %*RO	800 ± 50 Ω	≥ 500 MΩ	500 MΩ @ 100 Vdc	50 klbf	Through Hole	17-4 PH Stainless Steel, Glass, Stainless Steel	≤ ± 0.05% %*RO	80 °C	-55 °C	3.27 in	700 ± 0.5 Ω	65 °C	-25 °C	≤ ± 0.02% %*RO	200%*Emax	5 to 15 Vdc	≤ ± 0.036 %*RO/°C	≤ ± 0.027 %*RO/°C	1.65 in	2.54 kg	1: (-) Excitation; 2: Not connected; 3: (-) Signal; 4: (+) Excitation; 5: Ground; 6: (+) Signal	≤ ± 1%*RO
2X-820890가격 문의	OMEGA Engineering	NIST	Molex 1261 Series 6-Pin Female	2 mV/V	IP68	Compression	3.23 in	≤ ± 0.05% %*RO	800 ± 50 Ω	≥ 500 MΩ	500 MΩ @ 100 Vdc	30 klbf	Through Hole	17-4 PH Stainless Steel, Glass, Stainless Steel	≤ ± 0.05% %*RO	80 °C	-55 °C	3.27 in	700 ± 0.5 Ω	65 °C	-25 °C	≤ ± 0.02% %*RO	200%*Emax	5 to 15 Vdc	≤ ± 0.036 %*RO/°C	≤ ± 0.027 %*RO/°C	1.65 in	2.45 kg	1: (-) Excitation; 2: Not connected; 3: (-) Signal; 4: (+) Excitation; 5: Ground; 6: (+) Signal	≤ ± 1%*RO

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Calibration Option

Electrical Connection

Electrical Output

Enclosure Ratings

Force Type

Height

Hysteresis

Input Resistance

Insulation Resistance

Insulation Resistance Note

Load Cell Capacity

Load Cell Type

Materials

Non-Linearity

Operating Temperature, Max

Operating Temperature, Min

Outer Diameter

Output Resistance

Process Temperature, Max

Process Temperature, Min

Repeatability

Safe Overload

Supply Voltage

Temperature Effect on Sensitivity

Temperature Effect on Zero Output

Through Hole Dimension

Weight

Wiring/Connector Table

Zero/Balance Error

수량 / 장바구니

2X-0030251,199,940 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

NIST

Molex 1261 Series 6-Pin Female

2 mV/V

IP68

Compression

3.23 in

≤ ± 0.05% %*RO

800 ± 50 Ω

≥ 500 MΩ

500 MΩ @ 100 Vdc

50 klbf

Through Hole

17-4 PH Stainless Steel, Glass, Stainless Steel

≤ ± 0.05% %*RO

80 °C

-55 °C

3.27 in

700 ± 0.5 Ω

65 °C

-25 °C

≤ ± 0.02% %*RO

200%*Emax

5 to 15 Vdc

≤ ± 0.036 %*RO/°C

≤ ± 0.027 %*RO/°C

1.65 in

2.54 kg

1: (-) Excitation; 2: Not connected; 3: (-) Signal; 4: (+) Excitation; 5: Ground; 6: (+) Signal

≤ ± 1%*RO

2X-820890가격 문의

OMEGA Engineering

NIST

Molex 1261 Series 6-Pin Female

2 mV/V

IP68

Compression

3.23 in

≤ ± 0.05% %*RO

800 ± 50 Ω

≥ 500 MΩ

500 MΩ @ 100 Vdc

30 klbf

Through Hole

17-4 PH Stainless Steel, Glass, Stainless Steel

≤ ± 0.05% %*RO

80 °C

-55 °C

3.27 in

700 ± 0.5 Ω

65 °C

-25 °C

≤ ± 0.02% %*RO

200%*Emax

5 to 15 Vdc

≤ ± 0.036 %*RO/°C

≤ ± 0.027 %*RO/°C

1.65 in

2.45 kg

1: (-) Excitation; 2: Not connected; 3: (-) Signal; 4: (+) Excitation; 5: Ground; 6: (+) Signal

≤ ± 1%*RO
