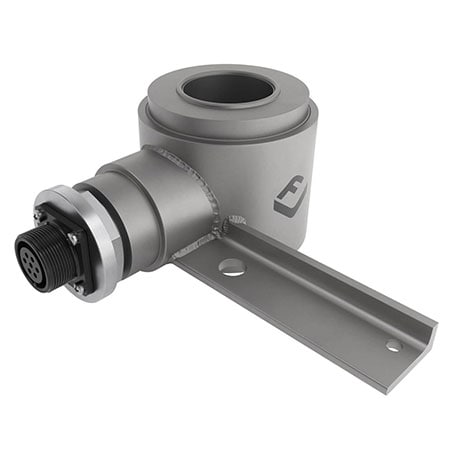

DwyerOmegaCC1
2X-003025
50,000 lbf
- 가격
- 1,199,940 원
- VAT 10%
- 119,994 원
- 총 금액
- 1,319,934 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Calibration Option:NIST
Electrical Connection:Molex 1261 Series 6-Pin Female
Electrical Output:2 mV/V
Enclosure Ratings:IP68
Force Type:Compression
Height:3.23 in
Hysteresis:≤ ± 0.05% %*RO
Input Resistance:800 ± 50 Ω
Insulation Resistance:≥ 500 MΩ
Insulation Resistance Note:500 MΩ @ 100 Vdc
Load Cell Capacity:50 klbf
Load Cell Type:Through Hole
Materials:17-4 PH Stainless Steel, Glass, Stainless Steel
Non-Linearity:≤ ± 0.05% %*RO
Operating Temperature, Max:80 °C
Operating Temperature, Min:-55 °C
Outer Diameter:3.27 in
Output Resistance:700 ± 0.5 Ω
Process Temperature, Max:65 °C
Process Temperature, Min:-25 °C
Repeatability:≤ ± 0.02% %*RO
Safe Overload:200%*Emax
Supply Voltage:5 to 15 Vdc
Temperature Effect on Sensitivity:≤ ± 0.036 %*RO/°C
Temperature Effect on Zero Output:≤ ± 0.027 %*RO/°C
Through Hole Dimension:1.65 in
Weight:2.54 kg
Wiring/Connector Table:1: (-) Excitation; 2: Not connected; 3: (-) Signal; 4: (+) Excitation; 5: Ground; 6: (+) Signal
Zero/Balance Error:≤ ± 1%*RO
